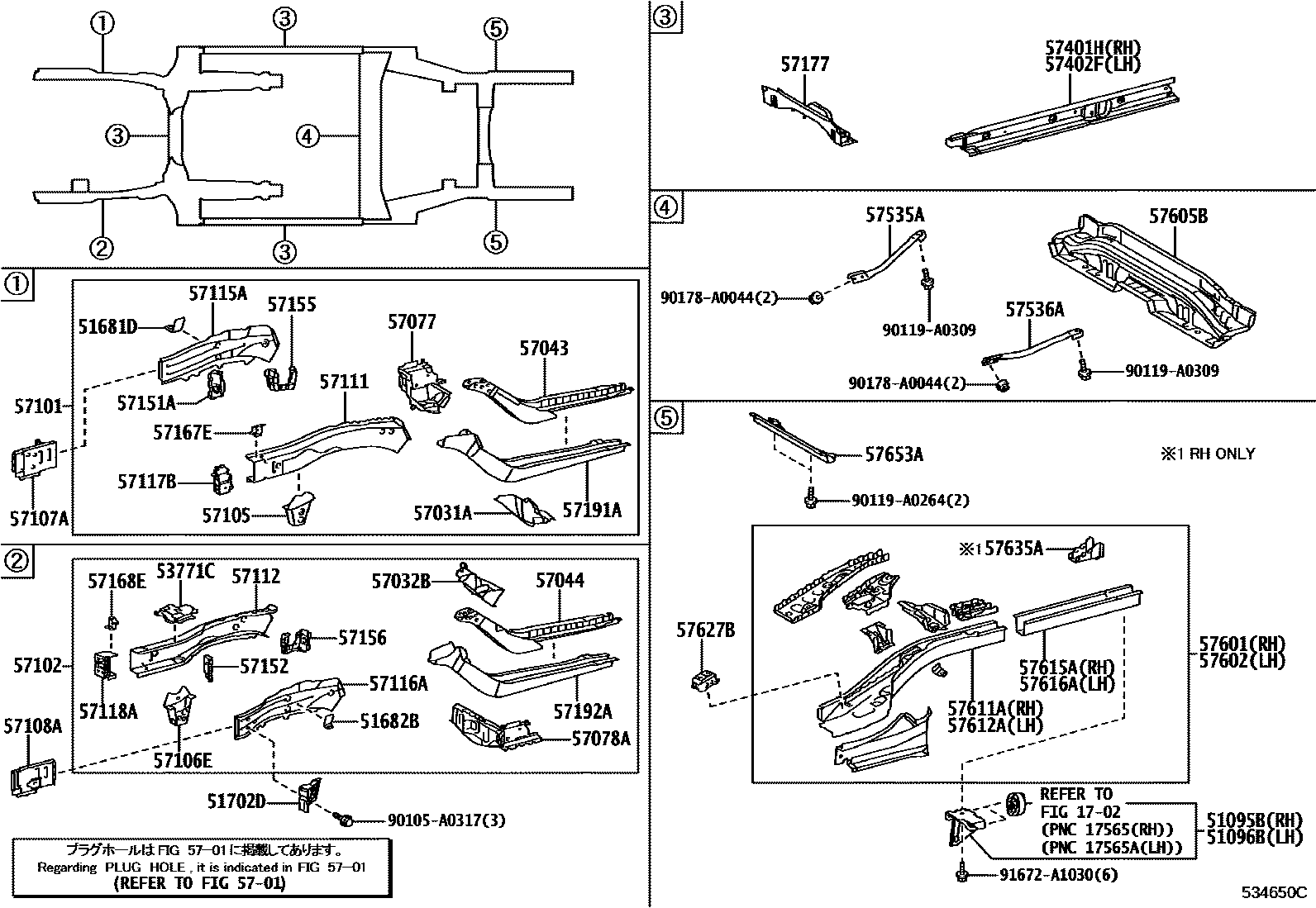

FLOOR SIDE MEMBER

1702

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-33010iGSV60201510

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-33010iGSV60201510

51681DBRACKET, FLEXIBLE HOSE, RH

main51681-06020iGSV60201510

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-06020iGSV60201510

51702DBRACKET SUB-ASSY, BODY SUPPORT, LH

main51702-06010iGSV60201510

53771CSUPPORT, BATTERY CARRIER

main53771-06090iGSV60201510

5701

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-06010iGSV60201510

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-06010iGSV60201510

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06010iGSV60201510

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06010iGSV60201510

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-06040iGSV60201510

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-06110iGSV60201510

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06171iGSV60201510-201807

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06280iGSV60201510-201807

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-06010iGSV60201510

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-06010iGSV60201510

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-06011iGSV60201510-201807

sub57107-33031

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-06011iGSV60201510-201807

57111MEMBER, FRONT SIDE, RH

main57111-06021iGSV60201510

57112MEMBER, FRONT SIDE, LH

main57112-06031iGSV60201510

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-06030iGSV60201510

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-06071iGSV60201510

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06030iGSV60201510

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06030iGSV60201510

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-06010iGSV60201510

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-06010iGSV60201510

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-06010iGSV60201510

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-06011iGSV60201510

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-06010iGSV60201510

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-06010iGSV60201510

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-06150iGSV60201510-201807

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-06010iGSV60201510

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-06010iGSV60201510

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-06270iGSV60201510-201807

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-06270iGSV60201510-201807

57535ABRACE, FRONT FLOOR, RH

main65031-07010iGSV60201510

57536ABRACE, FRONT FLOOR, LH

main65032-07010iGSV60201510

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06400iGSV60201510

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-06250iGSV60201510

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-07031iGSV60201510

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-06121iGSV60201510

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-06041iGSV60201510

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06090iGSV60201510

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06090iGSV60201510

57627BCOVER, REAR FLOOR SIDE MEMBER

main57627-33030iGSV60201510

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57625-33010iGSV60201510

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-06080iGSV60201510

90105A0317

main90105-A0317

90119A0264

main90119-A0264

90119A0309

main90119-A0309

90178A0044

main90178-A0044

91672A1030

main91672-A1030

54 parts on this diagram · 1 diagram in section
