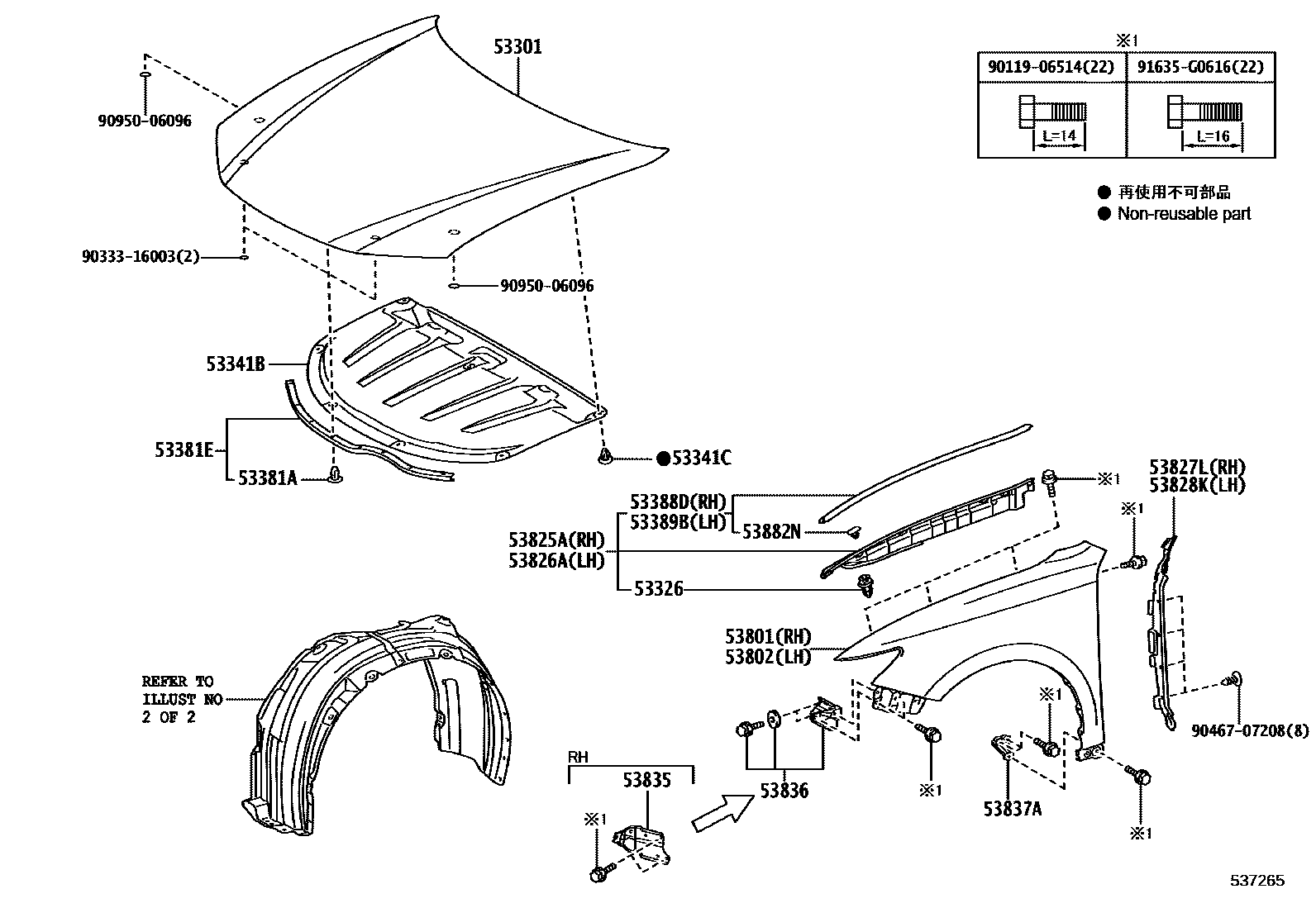

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-06320iGSV60201510

53326CLIP, HOOD PROTECTOR

main90467-10167iGSV60201510

53341BINSULATOR, HOOD

main53341-06370iGSV60201510

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003iGSV60201510

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010iGSV60201510

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-06180iGSV60201510

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-06180iGSV60201510

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-06140iGSV60201510

53801FENDER SUB-ASSY, FRONT RH

main53811-06240iGSV60201510

53802FENDER SUB-ASSY, FRONT LH

main53812-06250iGSV60201510

53825APROTECTOR, FRONT FENDER, UPPER RH

main53805-06190iGSV60201510

53826APROTECTOR, FRONT FENDER, UPPER LH

main53806-06200iGSV60201510

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-06040iGSV60201510

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-06040iGSV60201510

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-33100iGSV60201510

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53804-33040iGSV60201510

53837ABRACKET, FRONT SIDE PANEL, NO.2

main53837-33010iGSV60201510

53882NCLIP(FOR FRONT FENDER SEAL)

main65487-06020iGSV60201510

9011906514

main90119-06514

9033316003

main90333-16003

9046707208

main90467-07208

9095006096

main90950-06096

91635G0616

main91635-G0616

23 parts on this diagram · 2 diagrams in section
