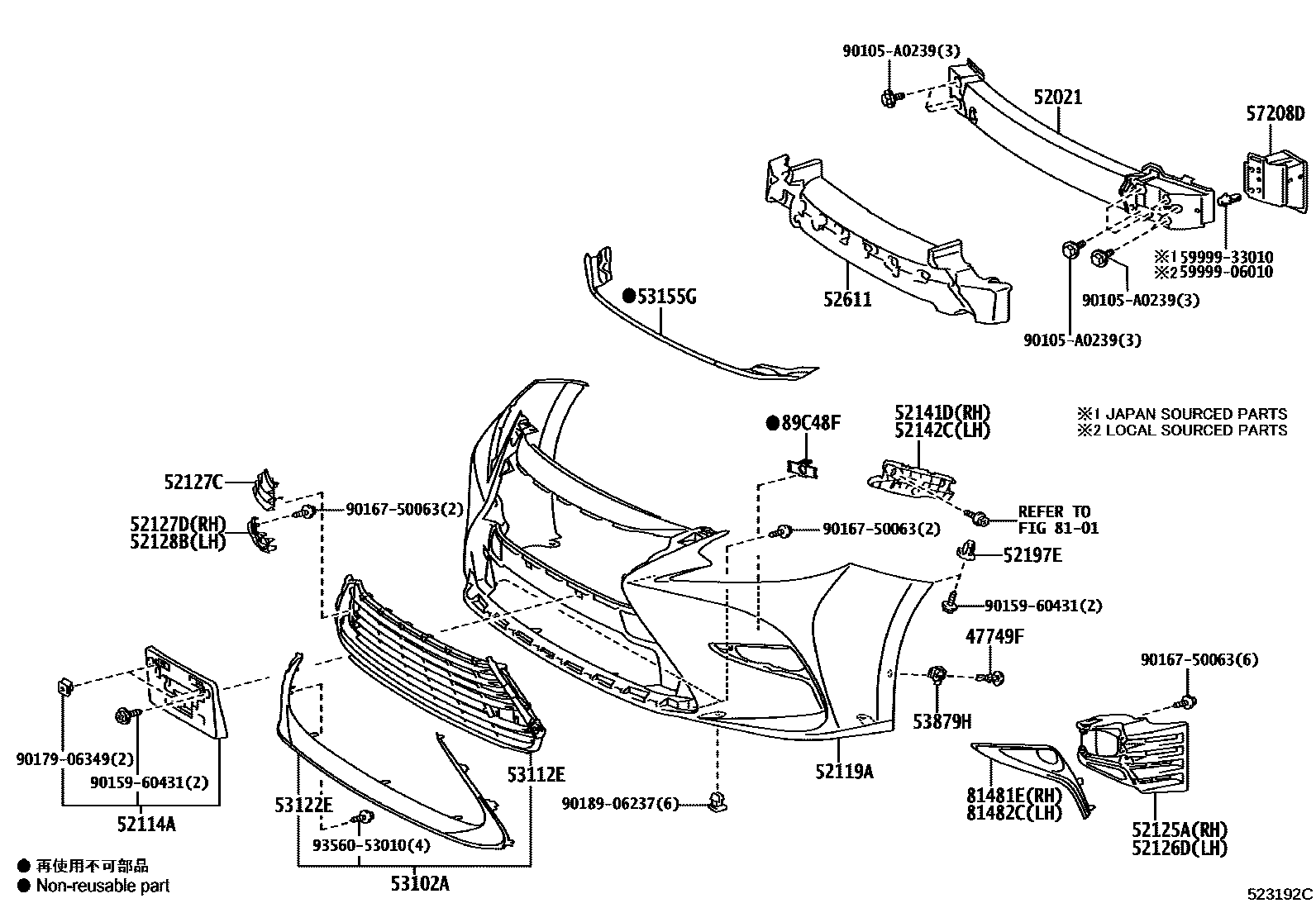

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
CANADA SPEC
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
52125ABRACKET, FOG LAMP MOUNTING, RH
(L)
(J)
52126DBRACKET, FOG LAMP MOUNTING, LH
(L)
(J)
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
(L)
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH,(L)
(J)
CLEARANCE & BACK SONAR-WITH,(J)
52128BCOVER, FRONT BUMPER HOLE, LH
(L)
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH,(L)
(J)
CLEARANCE & BACK SONAR-WITH,(J)
52141DSTAY, FRONT BUMPER, RH
(L)
(J)
52142CSTAY, FRONT BUMPER, LH
(L)
(J)
52197EBRACKET, FRONT BUMPER SEAL
52611ABSORBER, FRONT BUMPER ENERGY
53102AGRILLE SUB-ASSY, RADIATOR, LWR
(L)
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
53155GSEAL, RADIATOR GRILLE
53879HRETAINER, FRONT FENDER LINER
57208DSPACER SUB-ASSY, FRONT BUMPER SUPPORT, NO.2
8101
81481ECOVER, FOG LAMP, RH
(L)
(J)
81482CCOVER, FOG LAMP, LH
(L)
(J)
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
CLEARANCE & BACK SONAR-WITH
5999906010CLAMP(FOR FLOOR MAT)
main59999-06010
5999933010CLAMP(FOR FLOOR MAT)
main59999-33010
90105A0239
main90105-A0239
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
9018906237
main90189-06237
9356053010
main93560-53010
31 parts on this diagram · 1 diagram in section
