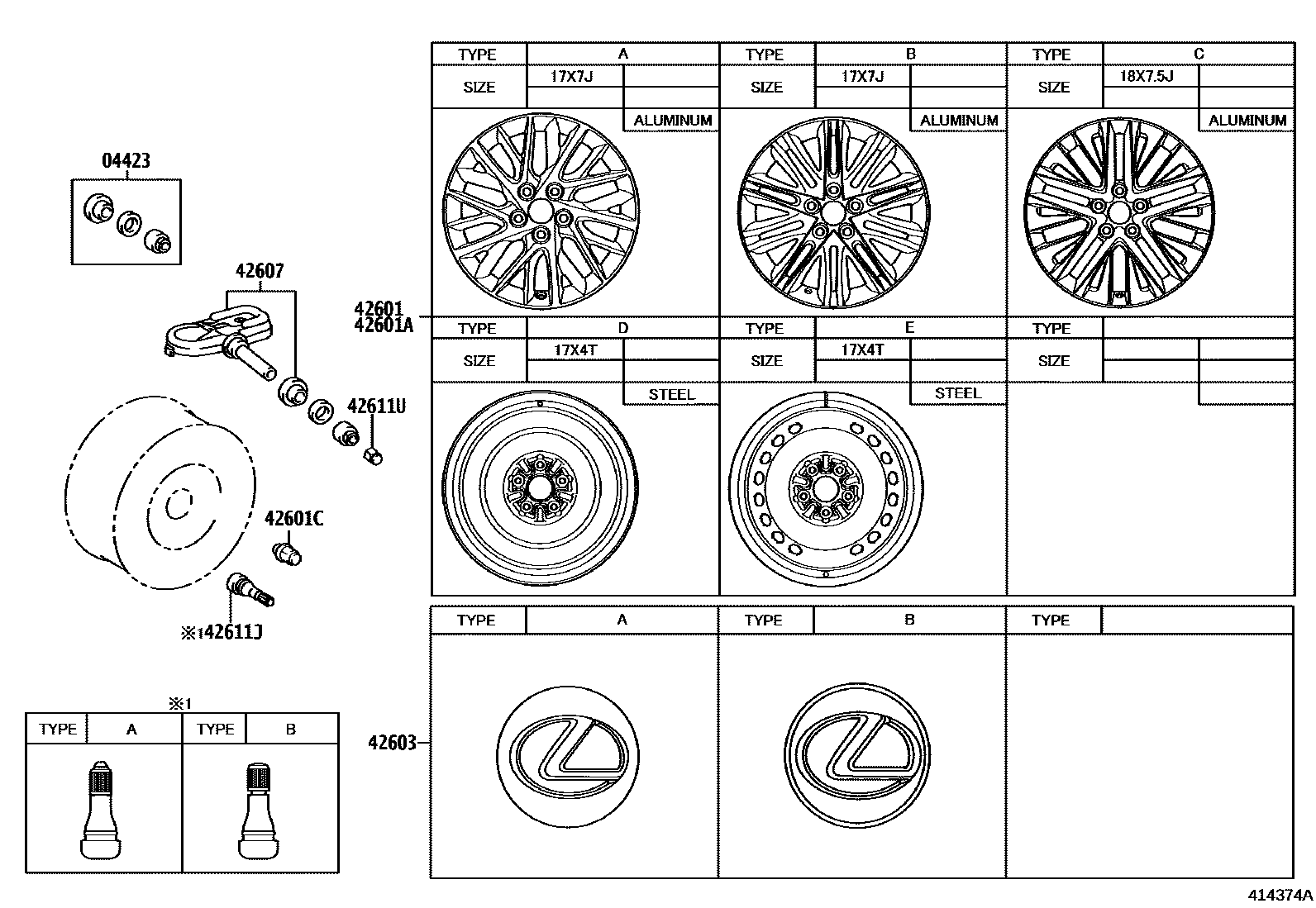

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
17X7J, #,TYPE B:REFER ILLUST.
17X7J, #,CANADA SPEC,TYPE B:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMI GRAY,TYPE A:REFER ILLUST.
sub42611-06D70
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMI GRAY,TYPEA:REFER ILLUST.
17X7J, #,CANADA SPEC&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMINUM,TYPE A:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMINUM,TYPE A:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE, ALUMINUM,TYPE C:REFER ILLUST.
sub4261A-06070
18X7.5J, #,TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE, ALUMINUM,TYPE C:REFER ILLUST.
18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE, ALUMINUM,TYPEC:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,USA POSSESSION SPEC,TYPE D:REFER ILLUST.
17X4T,PUERTO RICO SPEC,TYPE D:REFER ILLUST.
17X4T,TYPE D:REFER ILLUST.
17X4T,TYPE E:REFER ILLUST.
17X4T,USA POSSESSION SPEC,TYPE E:REFER ILLUST.
17X4T,PUERTO RICO SPEC,TYPE E:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE, ALUMINUM
sub90942-A1009
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMI GRAY
sub90942-A1009
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMINUM
sub90942-A1009
42603ORNAMENT SUB-ASSY, WHEEL HUB
*CHR,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMI GRAY,TYPE B:REFER ILLUST.
sub42603-30551
*CHR,TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE, ALUMINUM,TYPE B:REFER ILLUST.
sub42603-30551
*CHR,WHEEL LOCKS-WITH&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMI GRAY,TYPEB:REFER ILLUST.
sub42603-30551
*CHR,WHEEL LOCKS-WITH&TIRE & DISC WHEEL-225/45R18 ALL SEASON TIRE, ALUMINUM,TYPE B:REFER ILLUST.
sub42603-30551
*CHR,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMINUM,TYPE B:REFER ILLUST.
sub42603-30551
*CHR,WHEEL LOCKS-WITH&TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE, ALUMINUM,TYPE B:REFER ILLUST.
sub42603-30551
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER ILLUST.
USA POSSESSION SPEC,TYPE A:REFER ILLUST.
PUERTO RICO SPEC,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42611UCAP, TIRE VALVE
8 parts on this diagram · 1 diagram in section
