VALVE BODY & OIL STRAINER (ATM)

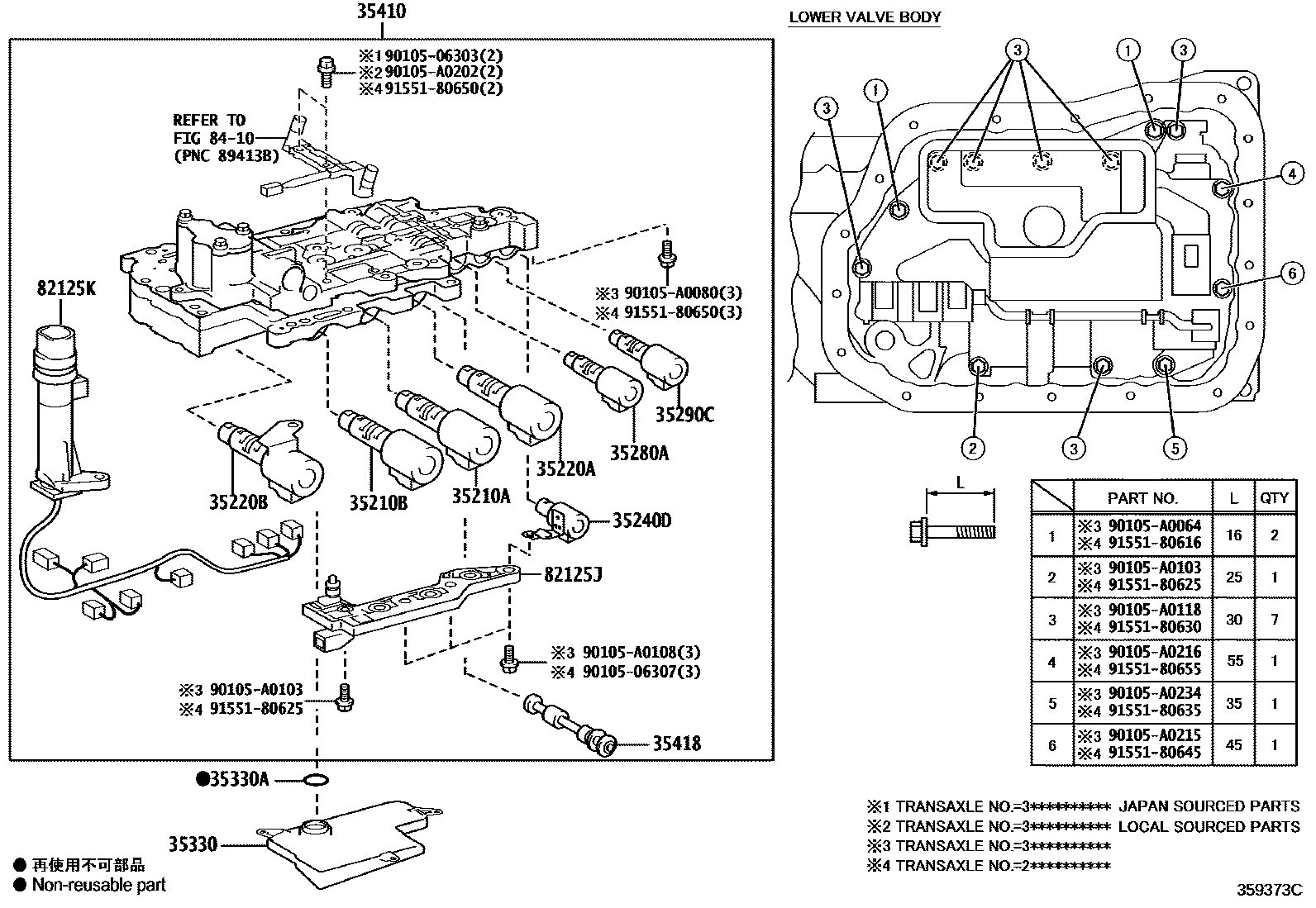

Parts diagram
35210AVALVE, SOLENOID(SL1)
main35210-33030i201510-201801
*325
main35210-33030i201709
*324
35210BVALVE, SOLENOID(SL3)
main35210-33030i201510-201801
*325
main35210-33030i201709
*324
35220AVALVE, SOLENOID(SL2)
main35220-33040i201510-201801
*325
main35220-33040i201709
*324
35220BVALVE, SOLENOID(SL4)
main35220-33040i201510-201801
*325
main35220-33040i201709
*324
35240DVALVE, SOLENOID(SL)
main35240-73010i201510-201801
*325
main35240-73010i201709
*324
35280AVALVE, SOLENOID(SLU)
main35280-52040i201510-201801
*325
main35280-52040i201709
*324
35290CVALVE, SOLENOID(SLT)
main35290-33040i201510-201801
*325
main35290-33040i201709
*324
35330STRAINER ASSY, VALVE BODY OIL
main35330-48020i201510-201801
*325
main35330-48020i201709
*324
35330ARING, O (FOR OIL STRAINER)
main90301-27015i201709
*324
main90301-A0026i201510-201801
*325
35410BODY ASSY, TRANSMISSION VALVE
main35410-08021i201510-201801
*325
sub35410-33240
main35410-33240i201709
*324
35418VALVE, MANUAL
main35418-73010i201709
*324
main35418-73010i201510-201801
*325
82125JWIRE, TRANSMISSION
main82125-33150i201510
sub82125-33151
82125KWIRE, TRANSMISSION
main82125-33160i201510-201807
8410
9010506303
main90105-06303
9010506307
main90105-06307
90105A0064
main90105-A0064
90105A0080
main90105-A0080
90105A0103
main90105-A0103
90105A0108
main90105-A0108
90105A0118
main90105-A0118
90105A0202
main90105-A0202
90105A0215
main90105-A0215
90105A0216
main90105-A0216
90105A0234
main90105-A0234
9155180616
main91551-80616
9155180625
main91551-80625
9155180630
main91551-80630
9155180635
main91551-80635
9155180645
main91551-80645
9155180650
main91551-80650
9155180655
main91551-80655

32 parts on this diagram · 2 diagrams in section
