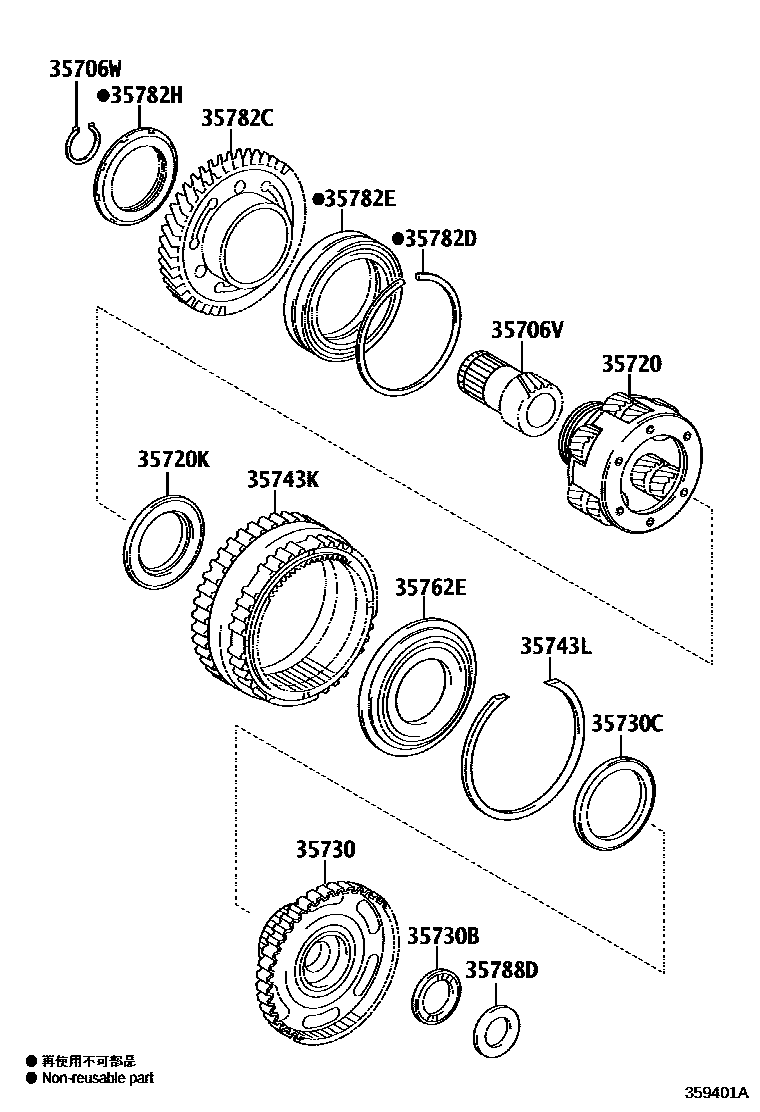

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020iGSV60201709

*324

main35706-33020iGSV60201510-201801

*325

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iGSV60201510-201801

*325

main90520-34032iGSV60201709

*324

35720GEAR ASSY, FRONT PLANETARY

main35720-33062iGSV60201510-201801

*325

main35720-33062iGSV60201709

*324

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62007iGSV60201709

*324

main90374-A0028iGSV60201510-201801

*325

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33021iGSV60201510-201801

*325

main35730-33021iGSV60201709

*324

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-28015iGSV60201709

*324

main90374-A0042iGSV60201510-201801

*325

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iGSV60201709

*324

main90374-A0029iGSV60201510-201801

*325

35743KGEAR, PLANETARY RING

main35743-33030iGSV60201709

*324

main35743-33030iGSV60201510-201801

*325

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iGSV60201709

*324

main90520-A0016iGSV60201510-201801

*325

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iGSV60201709

*324

main35762-73010iGSV60201510-201801

*325

35782CGEAR, COUNTER DRIVE

main35782-33031iGSV60201510-201801

*325

main35782-33031iGSV60201709

*324

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99154iGSV60201709

*324

main90520-A0042iGSV60201510-201801

*325

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72002iGSV60201709

*324

main90369-A0006iGSV60201510-201801

*325

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iGSV60201709

*324

main90179-A0017iGSV60201510-201801

*325

35788DRACE, THRUST BEARING, NO.3

main35788-07010iGSV60201510-201801

*325

main35788-33020iGSV60201709

*324

15 parts on this diagram · 1 diagram in section
