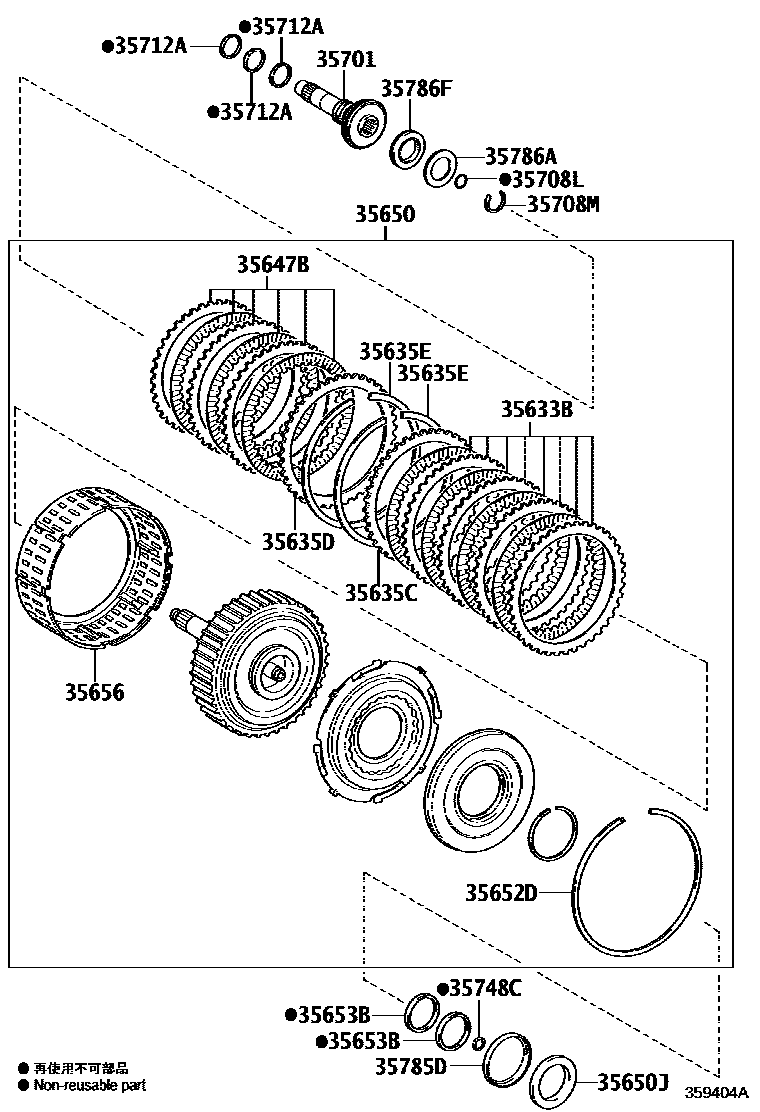

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
*325
*324
35635CCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.1
T=3.0,MARK 30,*325
T=3.1,MARK 31,*325
T=3.2,MARK 32,*325
T=3.3,MARK 33,*325
T=3.4,MARK 34,*325
T=3.5,MARK 35,*325
T=3.6,MARK 36,*325
T=3.0,MARK 30,*324
T=3.1,MARK 31,*324
T=3.2,MARK 32,*324
T=3.3,MARK 33,*324
T=3.4,MARK 34,*324
T=3.5,MARK 35,*324
35635DCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.2
T=3.0,MARK 30,*325
T=3.1,MARK 31,*325
T=3.2,MARK 32,*325
T=3.3,MARK 33,*325
T=3.4,MARK 34,*325
T=3.5,MARK 35,*325
T=3.6,MARK 36,*325
T=3.0,MARK 30,*324
T=3.1,MARK 31,*324
T=3.2,MARK 32,*324
T=3.3,MARK 33,*324
T=3.4,MARK 34,*324
T=3.5,MARK 35,*324
35635ERING, SNAP (FOR DIRECT MULTIPLE DISC CLUTCH)
*324
*325
35647BPLATE, CLUTCH, NO.2
*325
*324
35650CLUTCH ASSY, REAR MULTIPLE DISC
*324
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
*324
*325
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
*324
*325
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
*325
*324
35656PISTON, DIRECT CLUTCH, NO.2
*325
*324
35701SHAFT SUB-ASSY, INPUT
*325
*324
35708LRING, O (FOR INTERMEDIATE SHAFT)
*324
*325
35708MRING, SNAP (FOR INTERMEDIATE SHAFT)
*324
*325
35712ARING, INPUT SHAFT OIL SEAL
*325
*324
35748CRING, INTERMEDIATE SHAFT OIL SEAL
*324
*325
35785DRACE, THRUST BEARING, NO.4
*325
*324
35786ARACE, THRUST BEARING, NO.1
*325
*324
35786FBEARING, THRUST NEEDLE ROLLER
*324
*325
18 parts on this diagram · 1 diagram in section
