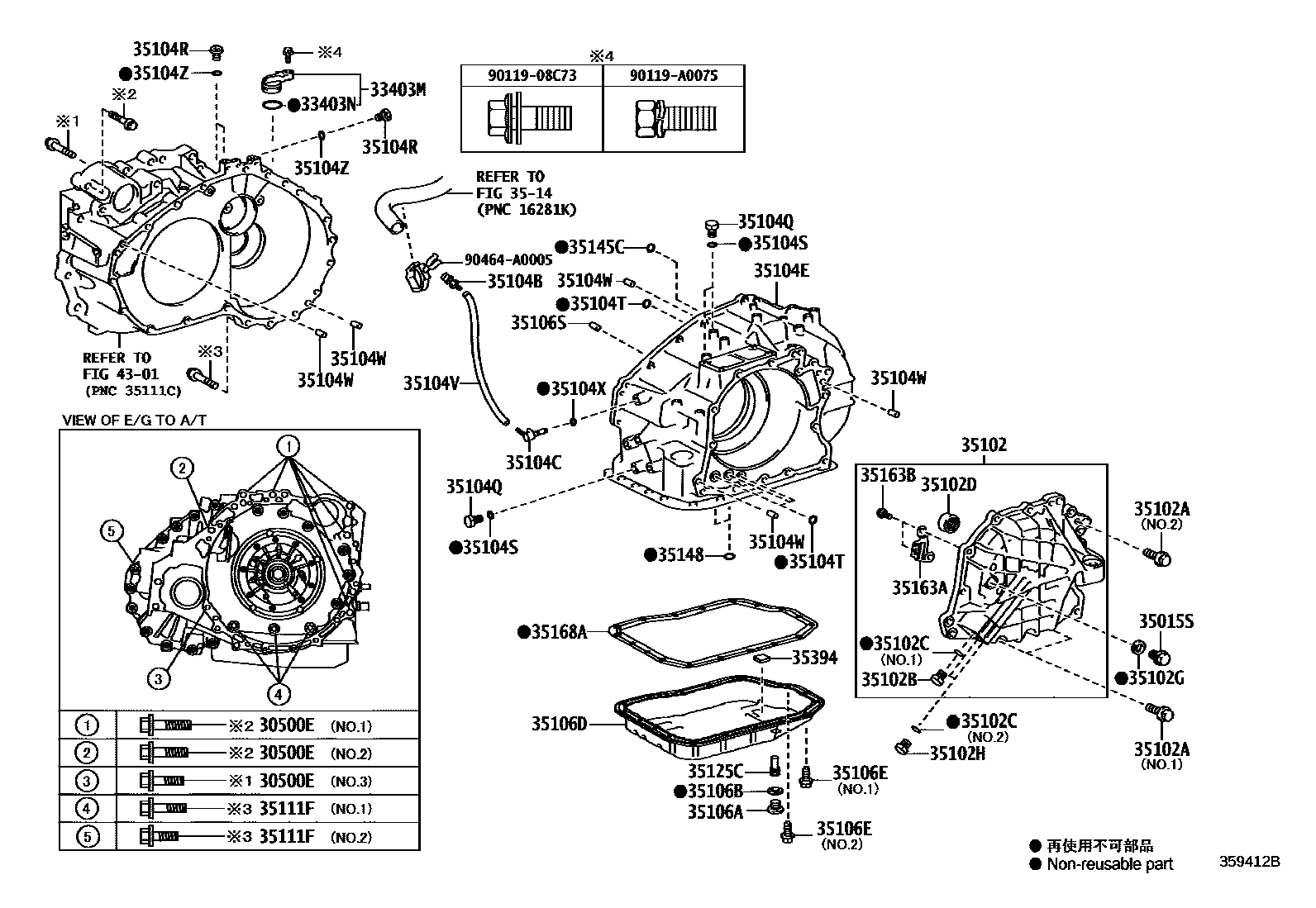

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-10338iGSV60201510

*10-1.25PX41-30,NO.3:REFER ILLUST.

main90080-11310iGSV60201510

*12-1.25PX55-30,NO.1:REFER ILLUST.

main90080-11604iGSV60201510

*12-1.25PX50-30,NO.2:REFER ILLUST.

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-35230iGSV60201510

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iGSV60201510

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iGSV60201709

*324

main90341-A0003iGSV60201510-201801

*325

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-07012iGSV60201510-201801

*325

main35102-33061iGSV60201709

*324

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431iGSV60201709

*8-1.25PX28-22,*324,NO.1

main90105-A0109iGSV60201510-201801

*8-1.25PX28-22,*325,NO.1

main90105-A0213iGSV60201510-201801

*8-1.25PX28-22,*325,NO.2

main91551-00828iGSV60201709

*8-1.25PX28-22,*324,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90080-34016iGSV60201510-201801

*325

main90341-08001iGSV60201709

*324

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90080-30075iGSV60201510-201801

*325,NO.1

main90080-30105iGSV60201510-201801

*325,NO.2

main90301-06196iGSV60201709

*324

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90080-36120iGSV60201510-201801

*325

main90364-18010iGSV60201709

*324

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iGSV60201709

*324

main90430-A0003iGSV60201510-201801

*325

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001iGSV60201709

*324

main90341-A0001iGSV60201510-201801

*325

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iGSV60201510-201801

*325

main90930-03149iGSV60201709

*324

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iGSV60201709

*324

main90930-03187iGSV60201510-201801

*325

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-07015iGSV60201510-201801

*325

main35141-33073iGSV60201709

*324

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iGSV60201709

*324

main90341-A0001iGSV60201510-201801

*325

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015iGSV60201709

*324

main90341-A0005iGSV60201510-201801

*325

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105iGSV60201510-201801

*325

main90301-06196iGSV60201709

*324

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018iGSV60201709

*324

main90301-A0016iGSV60201510-201801

*325

35104VHOSE (FOR BREATHER PLUG)

main35121-73011iGSV60201510-201801

*325

main35121-73011iGSV60201709

*324

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017iGSV60201510-201801

*325

main90250-10017iGSV60201709

*324

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iGSV60201510-201801

*325

main90301-06021iGSV60201709

*324

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008iGSV60201510-201801

*325

main90430-14008iGSV60201709

*324

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iGSV60201510-201801

*325

main90341-12034iGSV60201709

*324

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iGSV60201709

*324

main90430-A0002iGSV60201510-201801

*325

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-07010iGSV60201510-201801

*325

main35106-48011iGSV60201709

*324

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90080-11496iGSV60201510-201801

*325,NO.2

main90119-06173iGSV60201709

*324

main90119-A0298iGSV60201510-201801

*325,NO.1

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iGSV60201709

*324

main90253-A0012iGSV60201510-201801

*325

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432iGSV60201709

*8-1.25PX45-22,*324,NO.1

main90105-A0110iGSV60201510-201801

*8-1.25PX45-22,*325,NO.1

main90105-A0111iGSV60201510-201801

*8-1.25PX45-22,*325,NO.2

main91551-10845iGSV60201709

*8-1.25PX45-22,*324,NO.2

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-07020iGSV60201510-201801

*325

main35125-33130iGSV60201709

*324

3514

35145CGASKET, TRANSAXLE CASE

main35145-07010iGSV60201510-201801

*325

main35145-33010iGSV60201709

*324

35148GASKET, GOVERNOR APPLY, NO.1

main35145-07010iGSV60201510-201801

*325

main35145-33010iGSV60201709

*324

35163APLATE, TRANSAXLE REAR COVER

main35163-07010iGSV60201510-201801

*325

main35163-33010iGSV60201709

*324

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90080-14046iGSV60201510-201801

*325

main90148-60055iGSV60201709

*324

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-08010iGSV60201510-201801

*325

main35168-33080iGSV60201709

*324

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010iGSV60201510-201801

*325

main35394-30011iGSV60201709

*324

4301

9011908C73

main90119-08C73

90119A0075

main90119-A0075

90464A0005

main90464-A0005

40 parts on this diagram · 1 diagram in section
