TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

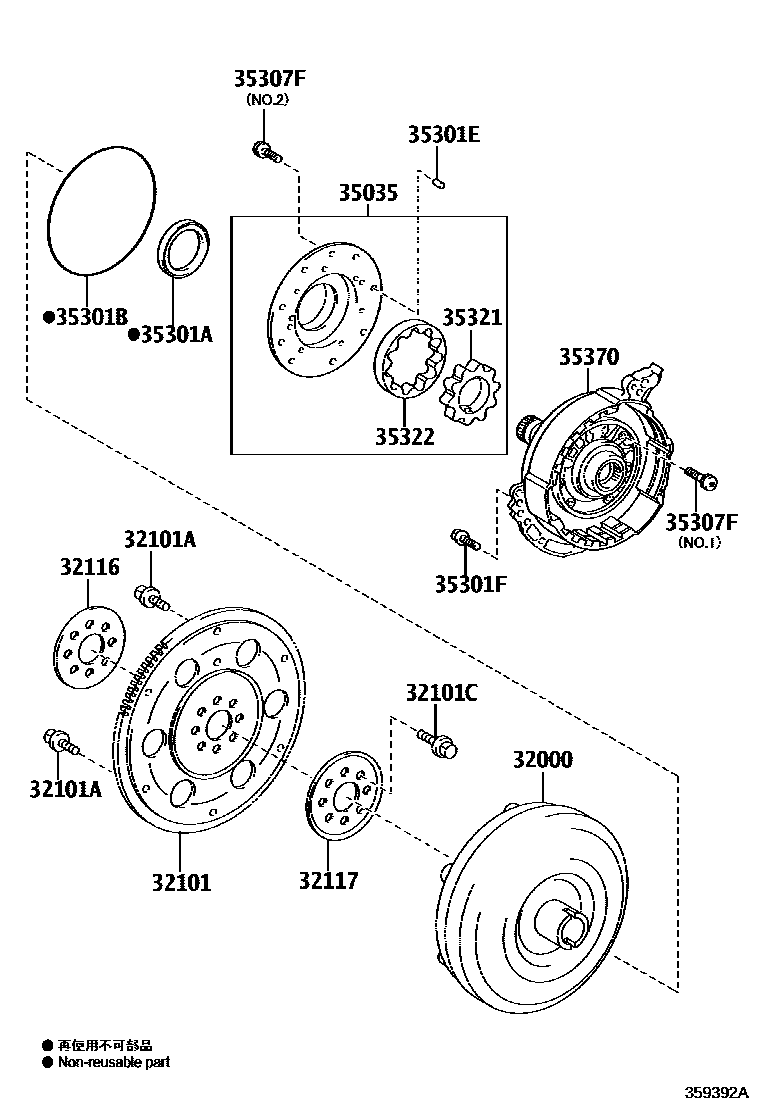

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-07022i201510-201801
*325
sub32000-33160
main32000-33132i201709-201807
*324
sub32000-33160
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-0E010i201510
(L)
main32101-48010i201510
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i201510
*9-1.25PX12.4-7.3,BLACK
main90119-09025i201510
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i201510
*10-1.25PX18-13
32116SPACER, DRIVE PLATE, FRONT
main32116-32020i201510
32117SPACER, DRIVE PLATE, REAR
main32117-32020i201510
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-07011i201510-201801
*325,(L)
main35035-33031i201709
*324
main35035-33031i201510-201801
*325,(J)
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-43010i201510-201801
*325,(J)
main90311-43010i201709
*324
main90311-A0010i201510-201801
*325,(L)
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-06010i201510-201801
*325
main35697-33010i201709
*324
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
main90250-08040i201510-201801
*325,(J)
main90250-08040i201709
*324
main90250-A0023i201510-201801
*325,(L)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-A0120i201510-201801
*8-1.25PX35-22,*325
main91551-80835i201709
*8-1.25PX35-22,*324
35307FBOLT (FOR STATOR SHAFT)
main90148-60064i201510-201801
*325,NO.1,(J)
main90148-60064i201709
*324,NO.1
main90148-60065i201510-201801
*325,NO.2,(J)
main90148-60065i201709
*324,NO.2
main90148-A0010i201510-201801
*325,NO.2,(L)
main90148-A0011i201510-201801
*325,NO.1,(L)
35321GEAR, FRONT OIL PUMP DRIVE
main35321-0R010i201510-201801
T=11.567,MARK 1,*325,(L)
main35321-0R020i201510-201801
T=11.567,MARK 2,*325,(L)
main35321-0R030i201510-201801
T=11.567,MARK 3,*325,(L)
main35321-0R040i201510-201801
T=11.567,MARK 4,*325,(L)
main35321-0R050i201510-201801
T=11.567,MARK 5,*325,(L)
main35321-33111i201709
T=11.567,MARK 1,*324
main35321-33111i201510-201801
T=11.567,MARK 1,*325,(J)
main35321-33121i201510-201801
T=11.567,MARK 2,*325,(J)
main35321-33121i201709
T=11.567,MARK 2,*324
main35321-33131i201510-201801
T=11.567,MARK 3,*325,(J)
main35321-33131i201709
T=11.567,MARK 3,*324
main35321-33141i201709
T=11.567,MARK 4,*324
main35321-33141i201510-201801
T=11.567,MARK 4,*325,(J)
main35321-33151i201709
T=11.567,MARK 5,*324
main35321-33151i201510-201801
T=11.567,MARK 5,*325,(J)
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-0R010i201510-201801
T=11.567,MARK 1,*325,(L)
main35322-0R020i201510-201801
T=11.567,MARK 2,*325,(L)
main35322-0R030i201510-201801
T=11.567,MARK 3,*325,(L)
main35322-0R040i201510-201801
T=11.567,MARK 4,*325,(L)
main35322-0R050i201510-201801
T=11.567,MARK 5,*325,(L)
main35322-33110i201709
T=11.567,MARK 1,*324
main35322-33110i201510-201801
T=11.567,MARK 1,*325,(J)
main35322-33120i201709
T=11.567,MARK 2,*324
main35322-33120i201510-201801
T=11.567,MARK 2,*325,(J)
main35322-33130i201510-201801
T=11.567,MARK 3,*325,(J)
main35322-33130i201709
T=11.567,MARK 3,*324
main35322-33140i201709
T=11.567,MARK 4,*324
main35322-33140i201510-201801
T=11.567,MARK 4,*325,(J)
main35322-33150i201510-201801
T=11.567,MARK 5,*325,(J)
main35322-33150i201709
T=11.567,MARK 5,*324
35370SHAFT ASSY, STATOR
main35370-07010i201510-201801
*325,(L)
main35370-33031i201510-201801
*325,(J)
main35370-33031i201709
*324

15 parts on this diagram · 1 diagram in section
