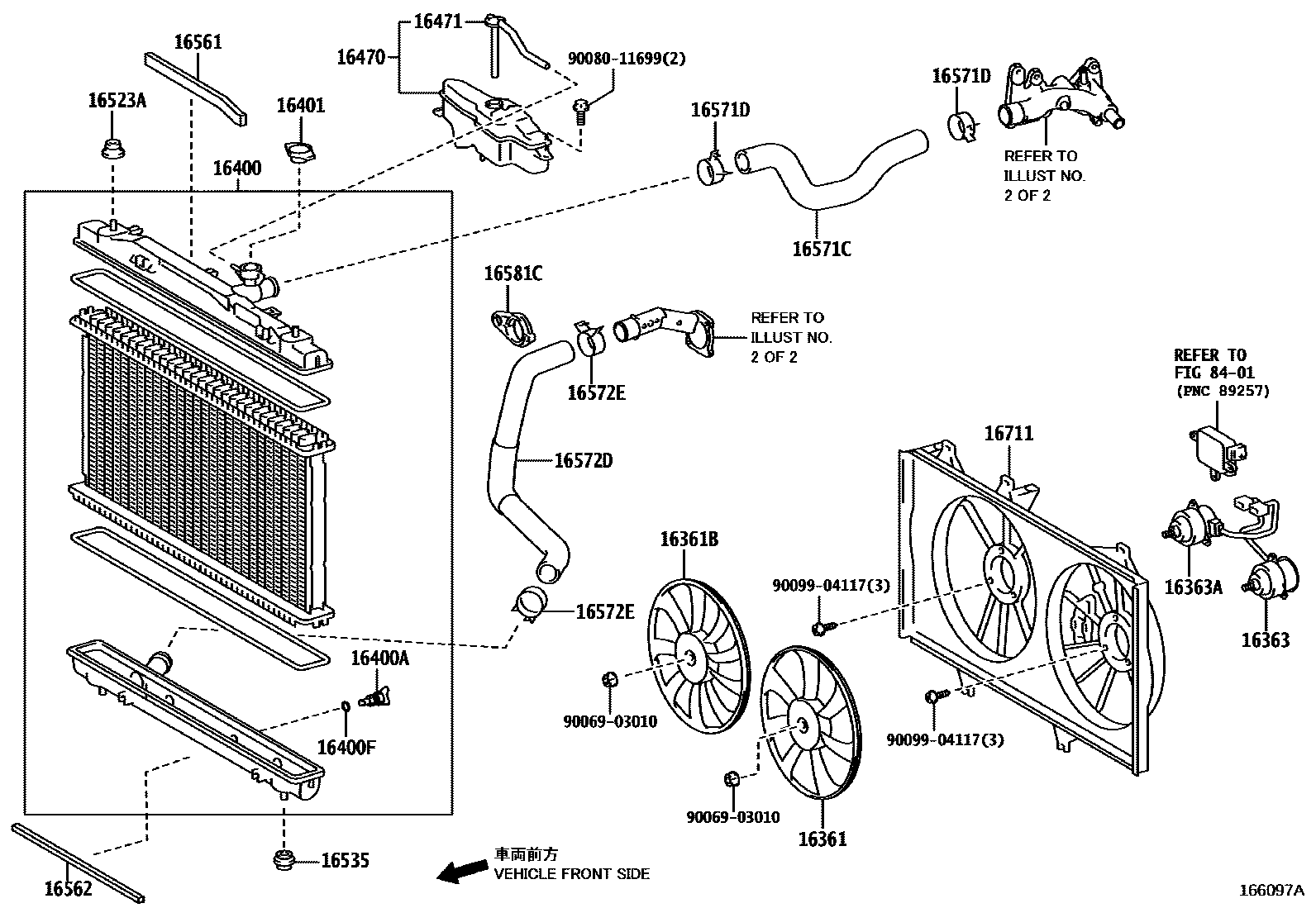

RADIATOR & WATER OUTLET

0001 1 0002 1

16361FAN

main16361-0P250i2GRFE..GSV60201510

16361BFAN, NO.2

main16361-0P260i2GRFE..GSV60201510

16363MOTOR, COOLING FAN

main16363-0A120i2GRFE..GSV60201510

16363AMOTOR, COOLING FAN, NO.2

main16363-0P030i2GRFE..GSV60201510

16400RADIATOR ASSY

main16400-0P350i2GRFE..GSV60201510

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-0C180i2GRFE..GSV60201510

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GRFE..GSV60201510

16401CAP SUB-ASSY, RADIATOR

main16401-31520i2GRFE..GSV60201510-201603

sub16401-36020

main16401-36020i2GRFE..GSV60201604

16470TANK ASSY, RADIATOR RESERVE

main16470-0V020i2GRFE..GSV60201510

16471CAP SUB-ASSY, RESERVE TANK

main16405-0V060i2GRFE..GSV60201510

16523ACUSHION, RADIATOR SUPPORT

main16523-AD010i2GRFE..GSV60201510

16535SUPPORT, RADIATOR, LOWER

main16535-0A050i2GRFE..GSV60201510

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-0V080i2GRFE..GSV60201510

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-0P120i2GRFE..GSV60201510

16571CHOSE, RADIATOR, NO.1

main16571-0P250i2GRFE..GSV60201510

16571DCLIP, RADIATOR HOSE, NO.1

main90466-A0020i2GRFE..GSV60201510

16572DHOSE, RADIATOR, NO.2

main16572-0P150i2GRFE..GSV60201510

16572ECLIP, RADIATOR HOSE, NO.2

main90466-A0020i2GRFE..GSV60201510

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-0P010i2GRFE..GSV60201510

16711SHROUD, FAN

main16711-0P200i2GRFE..GSV60201510

8401

9006903010

main90069-03010

9008011699

main90080-11699

9009904117

main90099-04117

24 parts on this diagram · 2 diagrams in section
