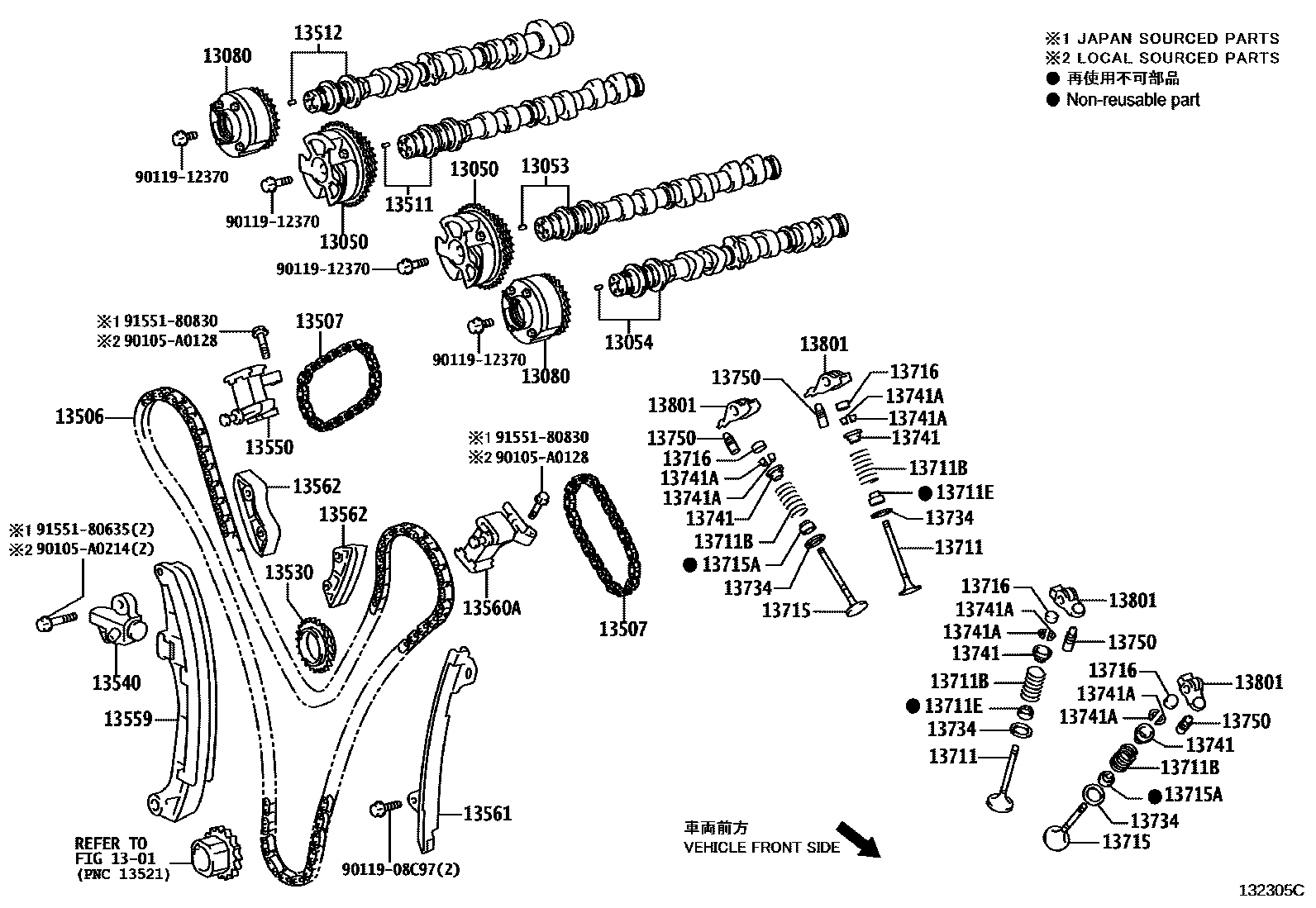

CAMSHAFT & VALVE
1301
13050GEAR ASSY, CAMSHAFT TIMING
(L)
(J)
13053CAMSHAFT SUB-ASSY, NO.3
(J)
(L)
13054CAMSHAFT SUB-ASSY, NO.4
(J)
(L)
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
(J)
13511CAMSHAFT
(J)
(L)
13512CAMSHAFT, NO.2
(J)
(L)
13530SPROCKET ASSY, IDLE
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13550TENSIONER ASSY, CHAIN, NO.2
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13560ATENSIONER ASSY, CHAIN, NO.3
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13562DAMPER, CHAIN VIBRATION, NO.2
(L)
(J)
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
(J)
13716CAP, VALVE STEM
(J)
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
90105A0128
main90105-A0128
90105A0214
main90105-A0214
9011908C97
main90119-08C97
9011912370
main90119-12370
9155180635
main91551-80635
9155180830
main91551-80830
33 parts on this diagram · 1 diagram in section
