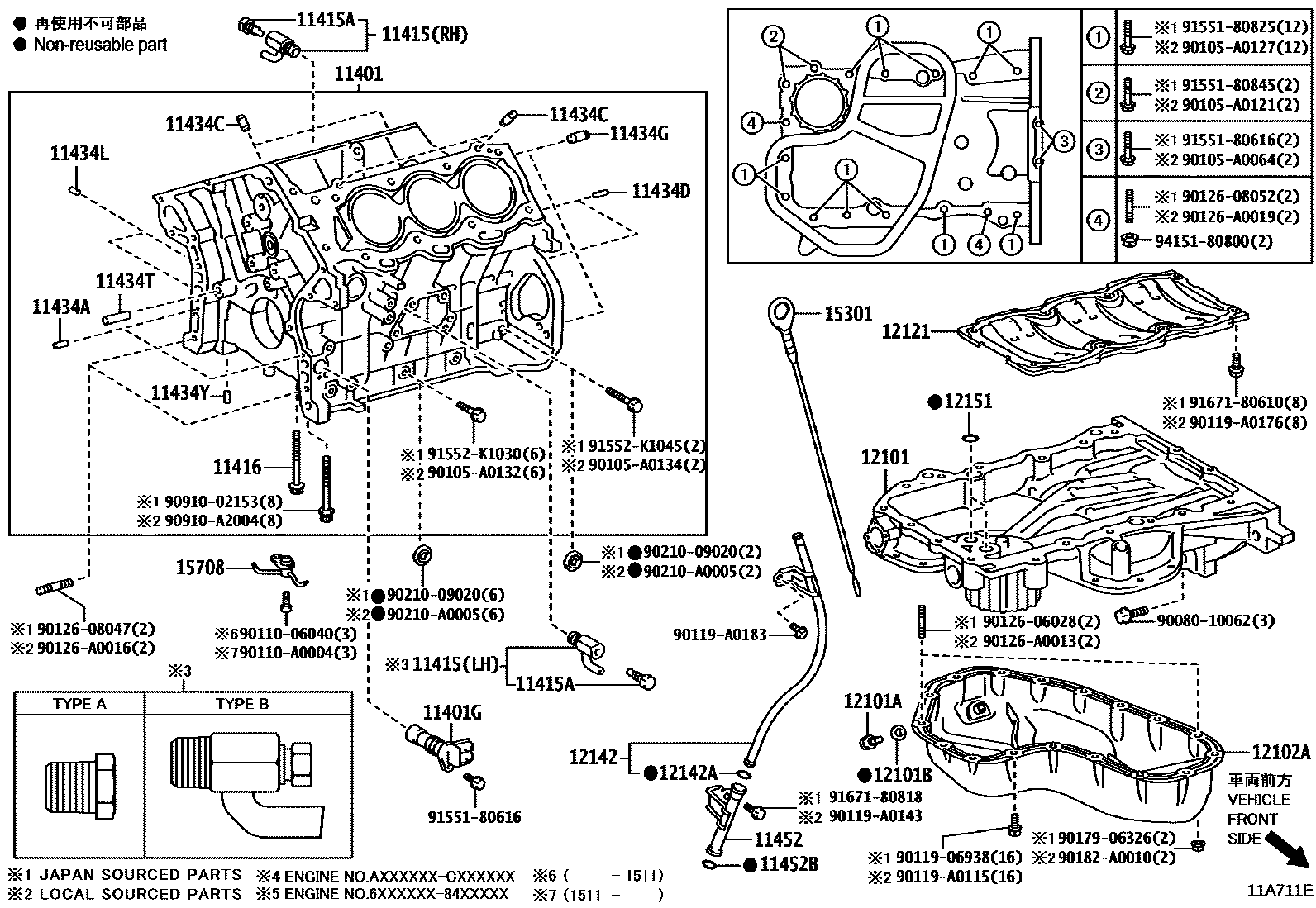

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
(J)
(L)
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
LH,TYPE A:REF.ILL.
(J),TYPE A:REF ILL.
(L),TYPE A:REF ILL.
RH,LH,TYPE B:REF.ILL.
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=12,OD=4.0
11434GPIN, STRAIGHT(FOR END PLATE)
11434LPIN, STRAIGHT(FOR ENGINE MOUNTING)
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
(L)
(J)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(J)
(L)
12102APAN SUB-ASSY, OIL, NO.2
(L)
(J)
12121PLATE, OIL PAN BAFFLE, NO.1
*402
*497
12142GUIDE, OIL LEVEL GAGE, NO.2
12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
15301GAGE SUB-ASSY, OIL LEVEL
15708NOZZLE SUB-ASSY, OIL, NO.1
*402
*497
*402
9008010062
main90080-10062
90105A0064
main90105-A0064
90105A0121
main90105-A0121
90105A0127
main90105-A0127
90105A0132
main90105-A0132
90105A0134
main90105-A0134
9011006040
main90110-06040
90110A0004
main90110-A0004
9011906938
main90119-06938
90119A0115
main90119-A0115
90119A0143
main90119-A0143
90119A0176
main90119-A0176
90119A0183
main90119-A0183
9012606028
main90126-06028
9012608047
main90126-08047
9012608052
main90126-08052
90126A0013
main90126-A0013
90126A0016
main90126-A0016
90126A0019
main90126-A0019
9017906326
main90179-06326
90182A0010
main90182-A0010
9021009020
main90210-09020
90210A0005
main90210-A0005
9091002153
main90910-02153
90910A2004
main90910-A2004
9155180616
main91551-80616
9155180825
main91551-80825
9155180845
main91551-80845
91552K1030
main91552-K1030
91552K1045
main91552-K1045
9167180610
main91671-80610
9167180818
main91671-80818
9415180800
main94151-80800
57 parts on this diagram · 1 diagram in section
