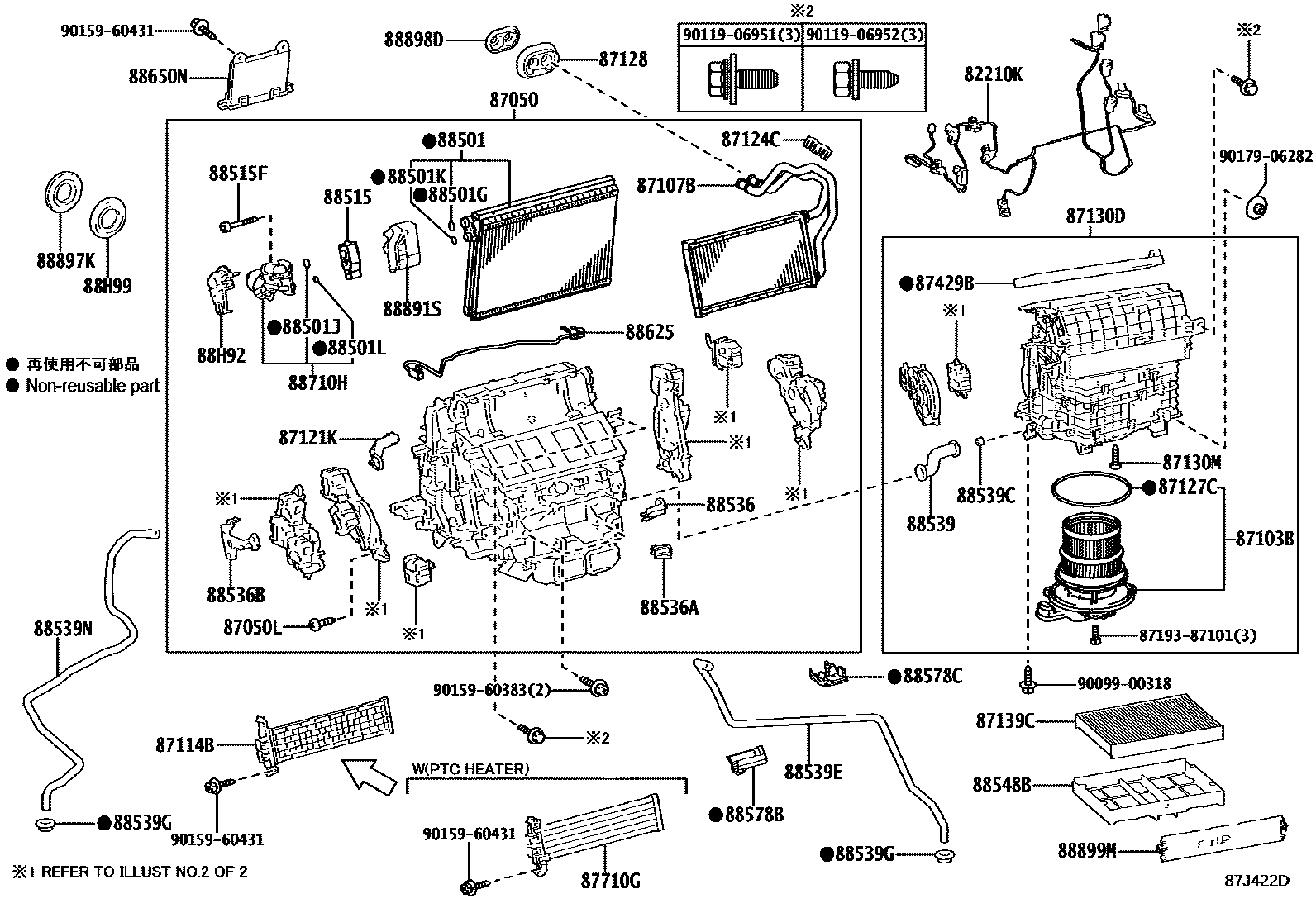

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87050LSCREW(FOR AIR CONDITIONER RADIATOR)
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107BUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87121KBRACKET, HEATER
87124CCLAMP, HEATER
87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1
87128GROMMET, HEATER
87130DBLOWER ASSY
87130MSCREW(FOR BLOWER)
87139CFILTER, CLEAN AIR
DEODORANT FILTER
87429BPACKING, COOLER UNIT, NO.1
87710GQUICK HEATER ASSY
ADDITIONAL HEATER-WITH
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)
ID=13.4,OD=18.2,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
ID=13.4,OD=18.2
88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)
ID=10.8,OD=15.6
88501LO-RING, COOLER EVAPORATOR NO.2(LIQUID)
ID=6.7,OD=10.3
ID=6.7,OD=10.3,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
88515VALVE, COOLER EXPANSION
88515FBOLT(FOR COOLER EXPANSION VALVE)
88536BRACKET, COOLING UNIT, NO.1
88536ABRACKET, COOLING UNIT, NO.2
88536BBRACKET, COOLING UNIT, NO.3
88539HOSE, COOLER UNIT DRAIN, NO.1
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539EHOSE, COOLER UNIT DRAIN, NO.3
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88539NHOSE, COOLER UNIT DRAIN, NO.4
88548BCASE, AIR FILTER
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88625THERMISTOR, COOLER, NO.1
88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER
88891SCOVER, COOLER, NO.1
88897KGROMMET, (FOR COOLER PIPE)
88898DGROMMET
88899MPLATE, COVER(FOR AIR FILTER)
88H92COVER, COOLER, NO.2
88H99PARTS, COOLING UNIT
8719387101
main87193-87101
9009900318
main90099-00318
9011906951
main90119-06951
9011906952
main90119-06952
9015960383
main90159-60383
9015960431
main90159-60431
9017906282
main90179-06282
49 parts on this diagram · 2 diagrams in section
