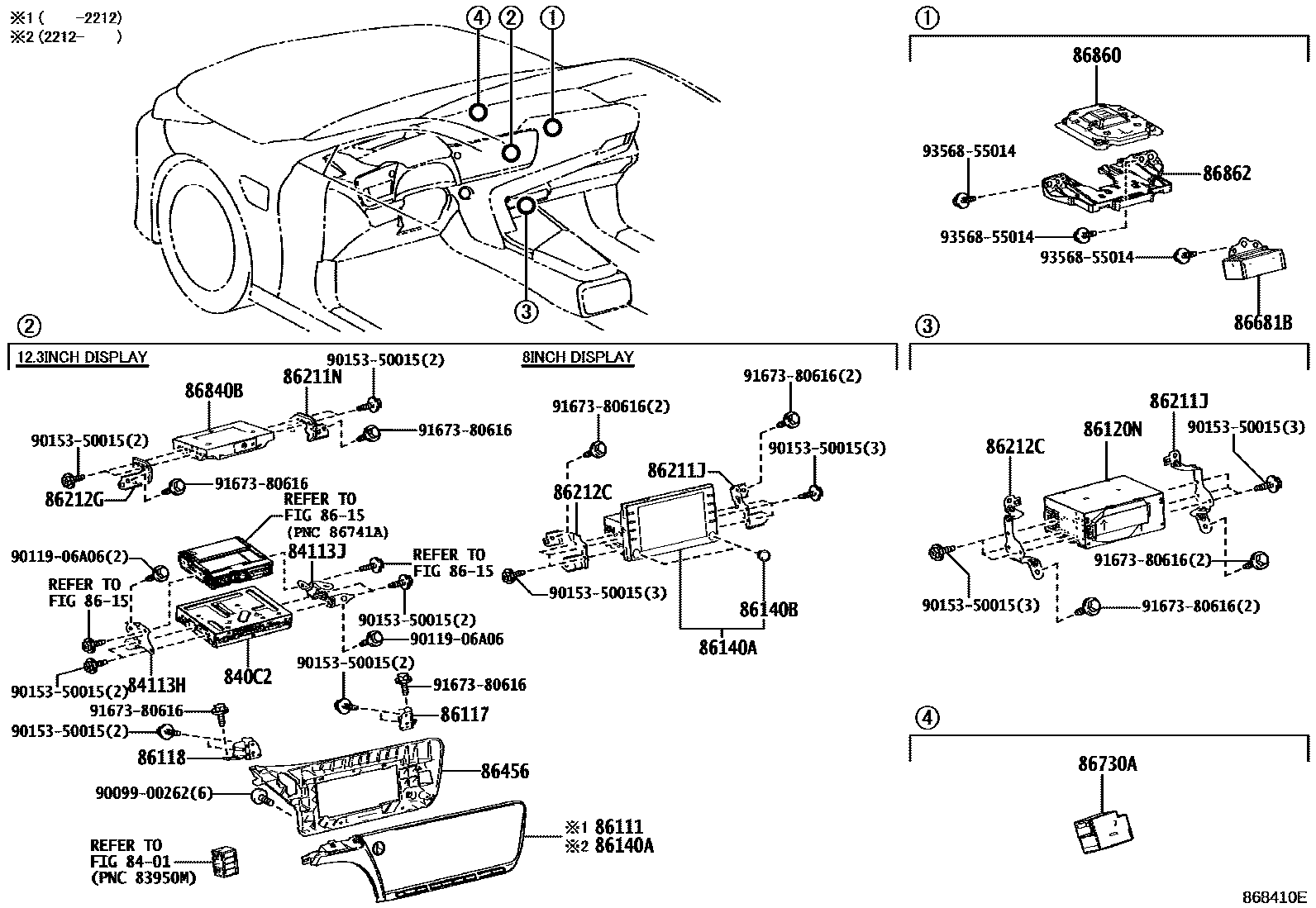

NAVIGATION & FRONT MONITOR DISPLAY
8401
84113HBRACKET, INTEGRATION CONTROL, NO.1
84113JBRACKET, INTEGRATION CONTROL, NO.2
86111MULTI-DISPLAY
DENSO
DENSO,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
86117BRACKET, MULTI-DISPLAY CONTROLLER, A
86118BRACKET, MULTI-DISPLAY CONTROLER, B
86120NRECEIVER ASSY, RADIO
CANADA SPEC
86140ARECEIVER ASSY, RADIO & DISPLAY
PANASONIC
PANASONIC,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
PANASONIC,CANADA SPEC
PANASONIC
PANASONIC,CANADA SPEC
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
8615
86211JBRACKET, RADIO RECEIVER, NO.1
86211NBRACKET, NAVIGATION COMPUTER, NO.1
86212CBRACKET, RADIO RECEIVER, NO.2
86212GBRACKET, NAVIGATION COMPUTER, NO.2
86456COVER, MULTI-MEDIA MODULE
86681BDIVIDER, ANTENNA
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
86730AMICROPHONE ASSY, TELEPHONE
86840BCOMPUTER ASSY, NAVIGATION
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
sub86840-62132
sub86840-62134
86860ANTENNA ASSY, NAVIGATION
86862BRACKET, NAVIGATION ANTENNA
MARK = D1
MARK = DE
9009900262
main90099-00262
9011906A06
main90119-06A06
9015350015
main90153-50015
9167380616
main91673-80616
9356855014
main93568-55014
26 parts on this diagram · 1 diagram in section
