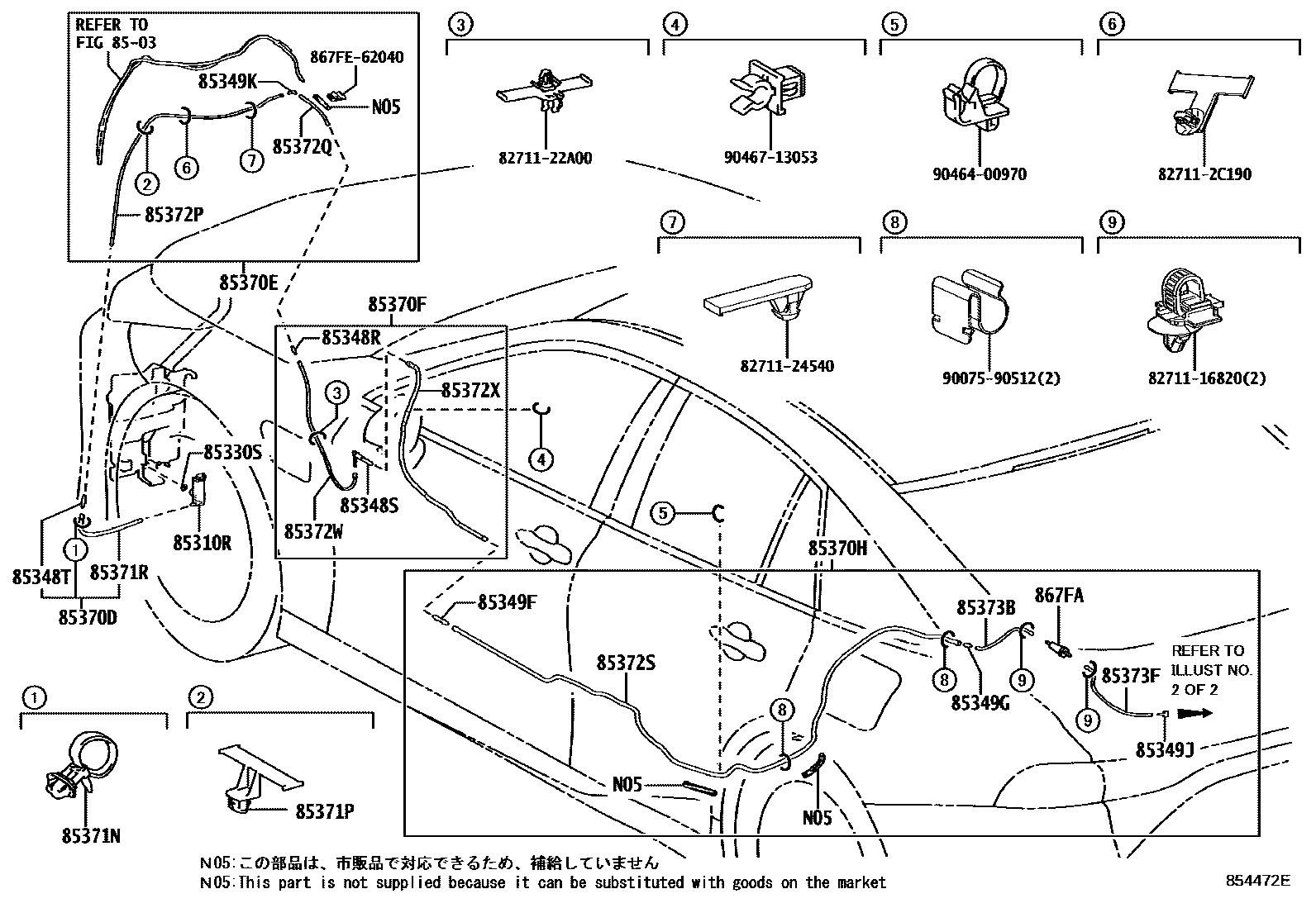

REAR WASHER
8503
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
85349JJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85370DHOSE ASSY, REAR WASHER, NO.1
85370EHOSE ASSY, REAR WASHER, NO.2
85370FHOSE ASSY, REAR WASHER, NO.3
85370HHOSE ASSY, REAR WASHER, NO.4
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=170
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=960
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=185
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=2445
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=450
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=770
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=185
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
L=290
867FAFILTER, CLEANER HOSE
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271122A00WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22A00
8271124540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24540
827112C190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C190
867FE62040
main867FE-62040
9007590512
main90075-90512
9046400970
main90464-00970
9046713053
main90467-13053
33 parts on this diagram · 4 diagrams in section
