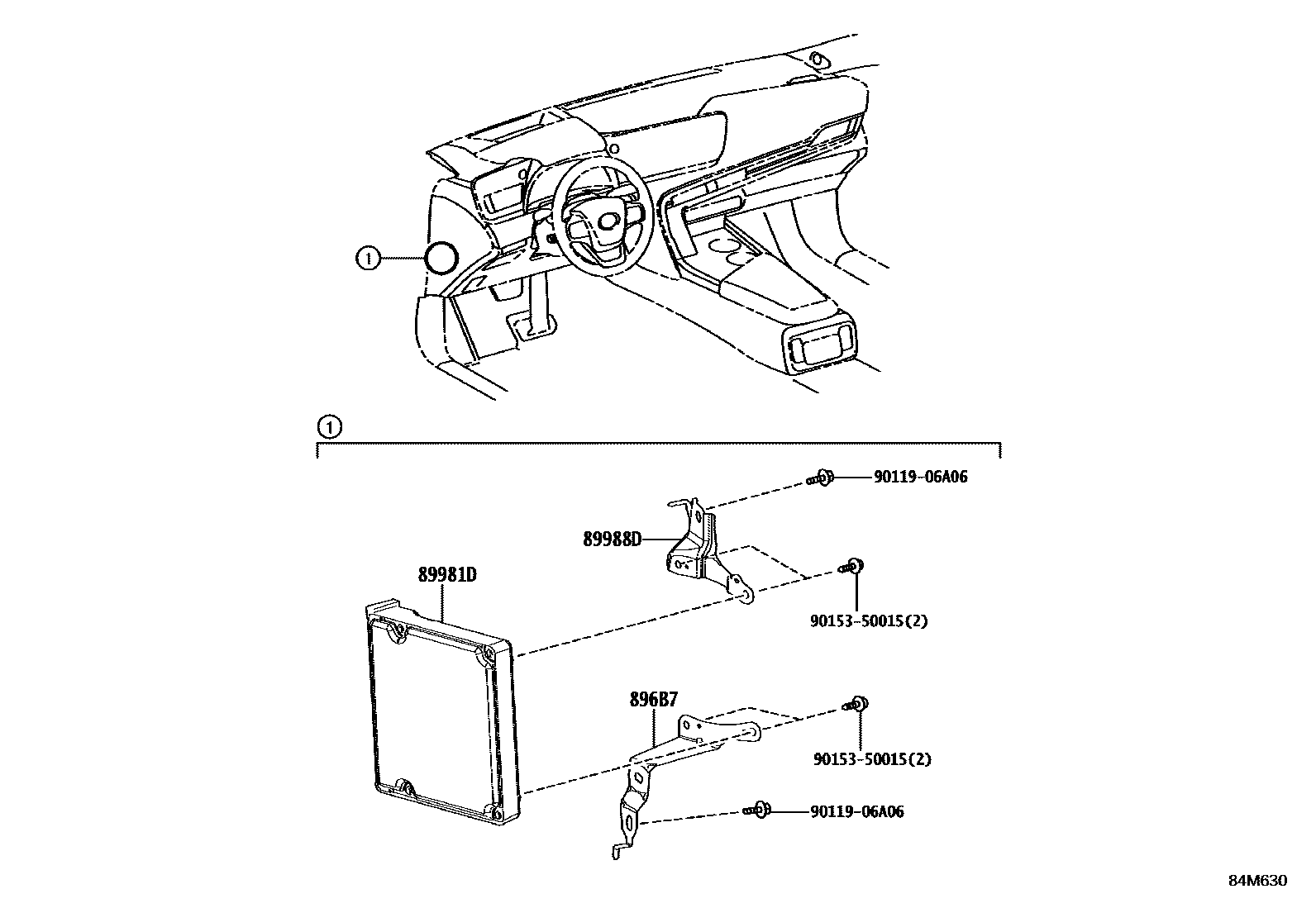

CONTROL COMPUTER(BEV OR FCEV)

896B7BRACKET, EV CONTROL COMPUTER, NO.1

main896B7-62020iJPD20..S202011-202411

89981DCOMPUTER, EV CONTROL

main89981-62120iJPD20..B202011-202212

*614

main89981-62160iJPD20..H,S202011-202212

*614

main89981-62270iJPD20..B202212-202312

*614

main89981-62290iJPD20..H,S202212-202312

*614

main89981-62380iJPD20202312-202411

*614

89988DBRACKET, EV CONTROL COMPUTER, NO.2

main89988-62020iJPD20202011-202411

9011906A06

main90119-06A06

9015350015

main90153-50015

5 parts on this diagram · 1 diagram in section
