WIRELESS DOOR LOCK
8435
89000COMPUTER ASSY, DIGITAL KEY
DIGITAL KEY-WITH
890E0RECEIVER ASSY, BLE DIGITAL KEY
DIGITAL KEY-WITH
890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY
DIGITAL KEY-WITH
890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2
DIGITAL KEY-WITH
89747BUZZER, WIRELESS DOOR LOCK
8974EANTENNA, ROOF HEADER ELECTRICAL KEY
89990ACOMPUTER ASSY, SMART KEY
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&SMART ENTRY-WITH(PANIC BUTTON)
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&SMART ENTRY-WITH(PANIC BUTTON)
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&SMART ENTRY-WITH(PANIC BUTTON)
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&SMART ENTRY-WITH(PANIC BUTTON)
9011906A06
main90119-06A06
9011906A07
main90119-06A07
9017906274
main90179-06274
9018306032
main90183-06032
9167380620
main91673-80620

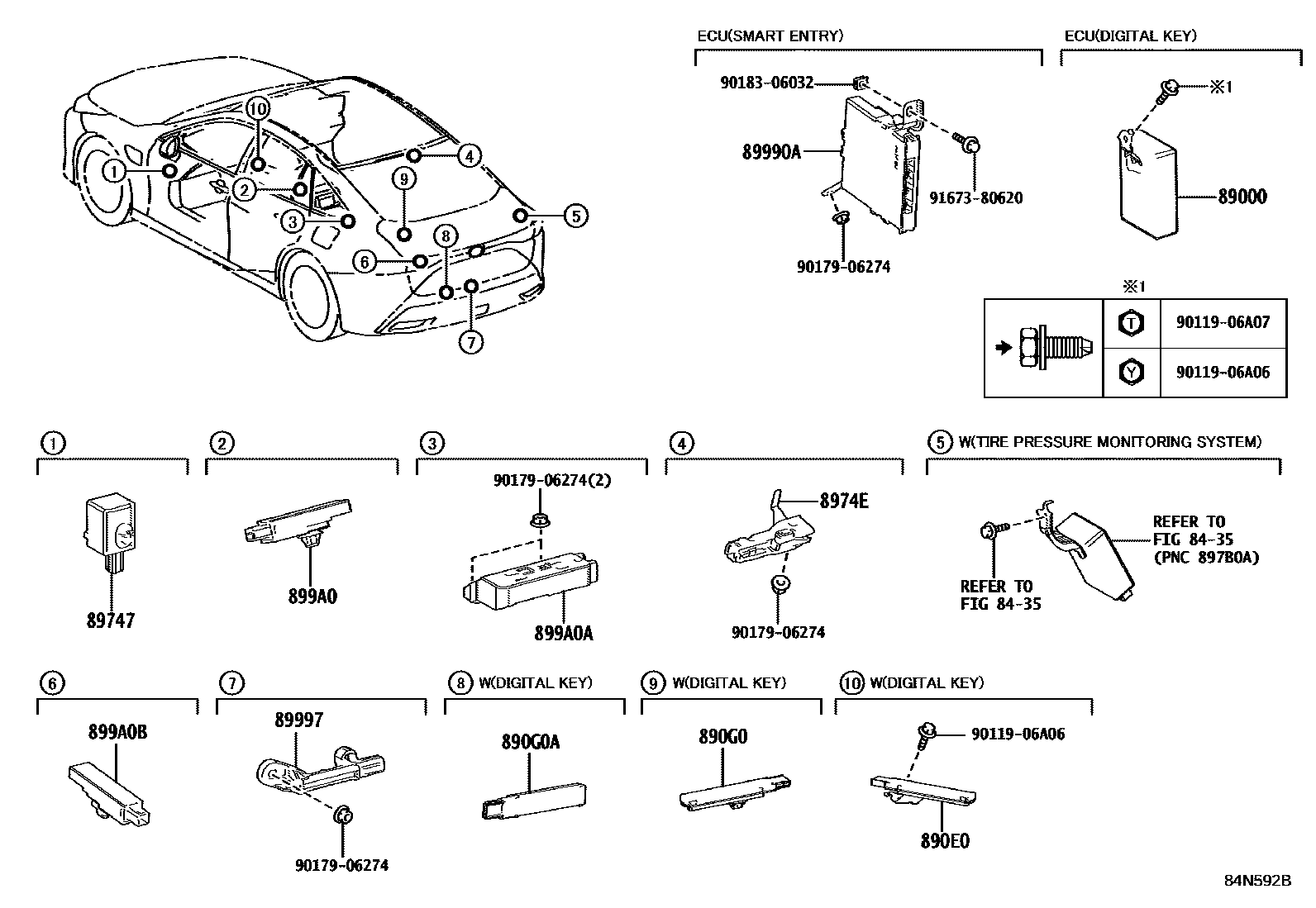

17 parts on this diagram · 1 diagram in section
