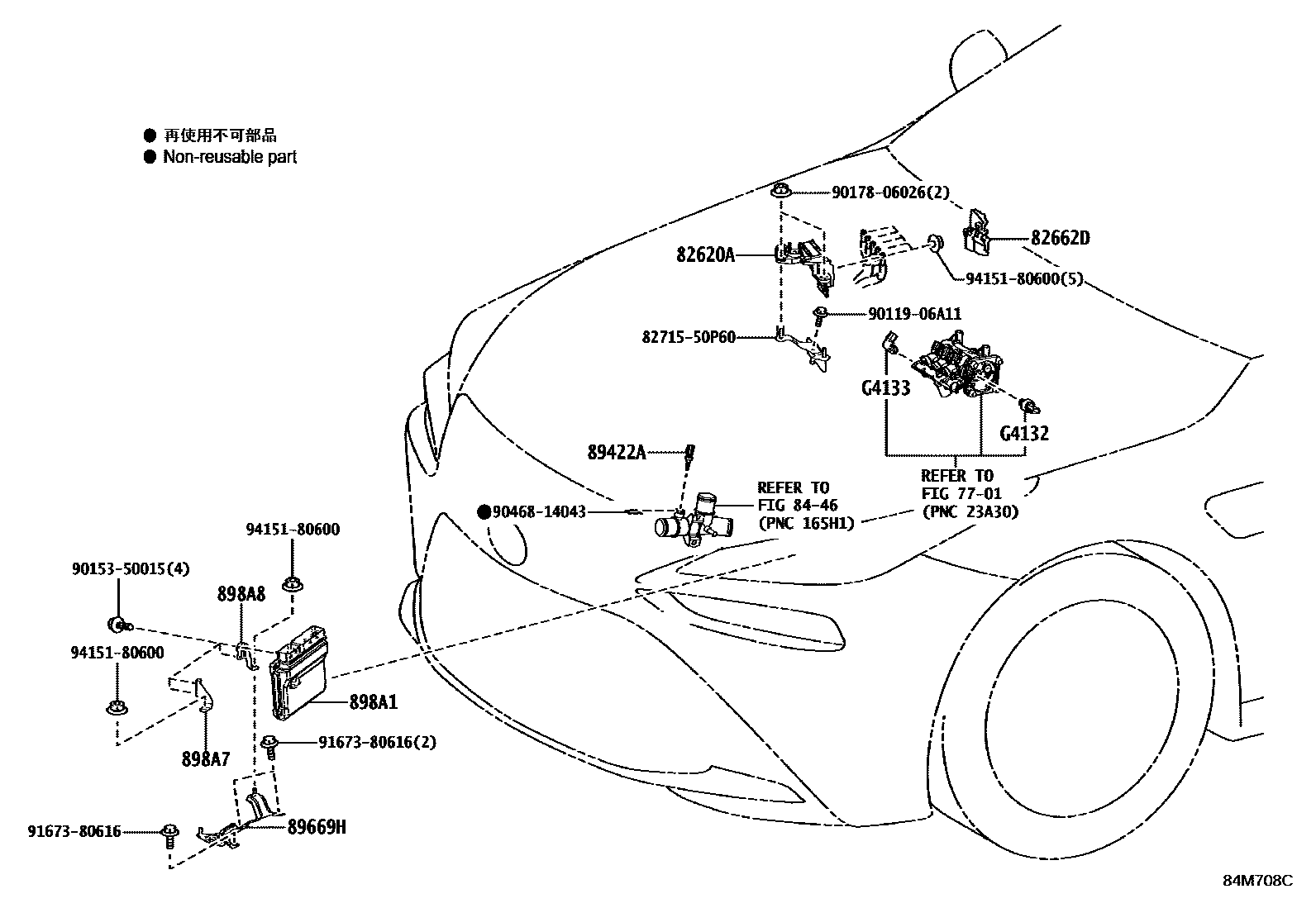

SWITCH & RELAY & COMPUTER

0001 1MOTOR COMPARTMENT 0002 1MOTOR COMPARTMENT RELAY BLOCK0003 1MOTOR COMPARTMENT RELAY BLOCK0004 1COWL 0005 1COWL 1/2 0006 1COWL 2/2 0007 1INSTRUMENT PANEL 0008 1CONSOLE BOX 0009 1STEERING 0010 1SEAT 0011 1DOOR & ROOF 0012 1FLOOR & LUGGAGE 0013 1FLOOR & LUGGAGE 0014 1RELAY BLOCK(LUGGAGE) 0015 1RELAY BLOCK (LUGGAGE)

7701

82620ABLOCK ASSY, FUSIBLE LINK

main82620-50200iJPD20202011-202411

82662DCOVER, RELAY BLOCK, UPPER, NO.4

main82662-50490iJPD20202312-202411

8446

89422ASENSOR, WATER TEMPERATURE

main89422-47010iJPD20202011-202411

89669HBRACKET, FC CONTROL COMPUTER, NO.3

main89669-30180iJPD20202011-202411

898A1COMPUTER, FC CONTROL

main898A1-62030iJPD20..H202312-202406

ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE

main898A1-62030iJPD20202011-202312

main898A1-62070iJPD20202312-202411

main898A1-62090iJPD20..H202406-202411

ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE

898A7BRACKET, FC CONTROL COMPUTER, NO.1

main898A7-62010iJPD20202011-202411

898A8BRACKET, FC CONTROL COMPUTER, NO.2

main898A8-62010iJPD20202011-202411

G4132SENSOR, HYDROGEN PRIMARY PRESSURE

mainG413262020iJPD20..S202011-202411

G4133SENSOR, HYDROGEN SECONDARY PRESSURE

mainG413362020iJPD20202011-202411

8271550P60BRACKET,WIRING HARNESS CLAMP

main82715-50P60

9011906A11

main90119-06A11

9015350015

main90153-50015

9017806026

main90178-06026

9046814043

main90468-14043

9167380616

main91673-80616

9415180600

main94151-80600

18 parts on this diagram · 15 diagrams in section
