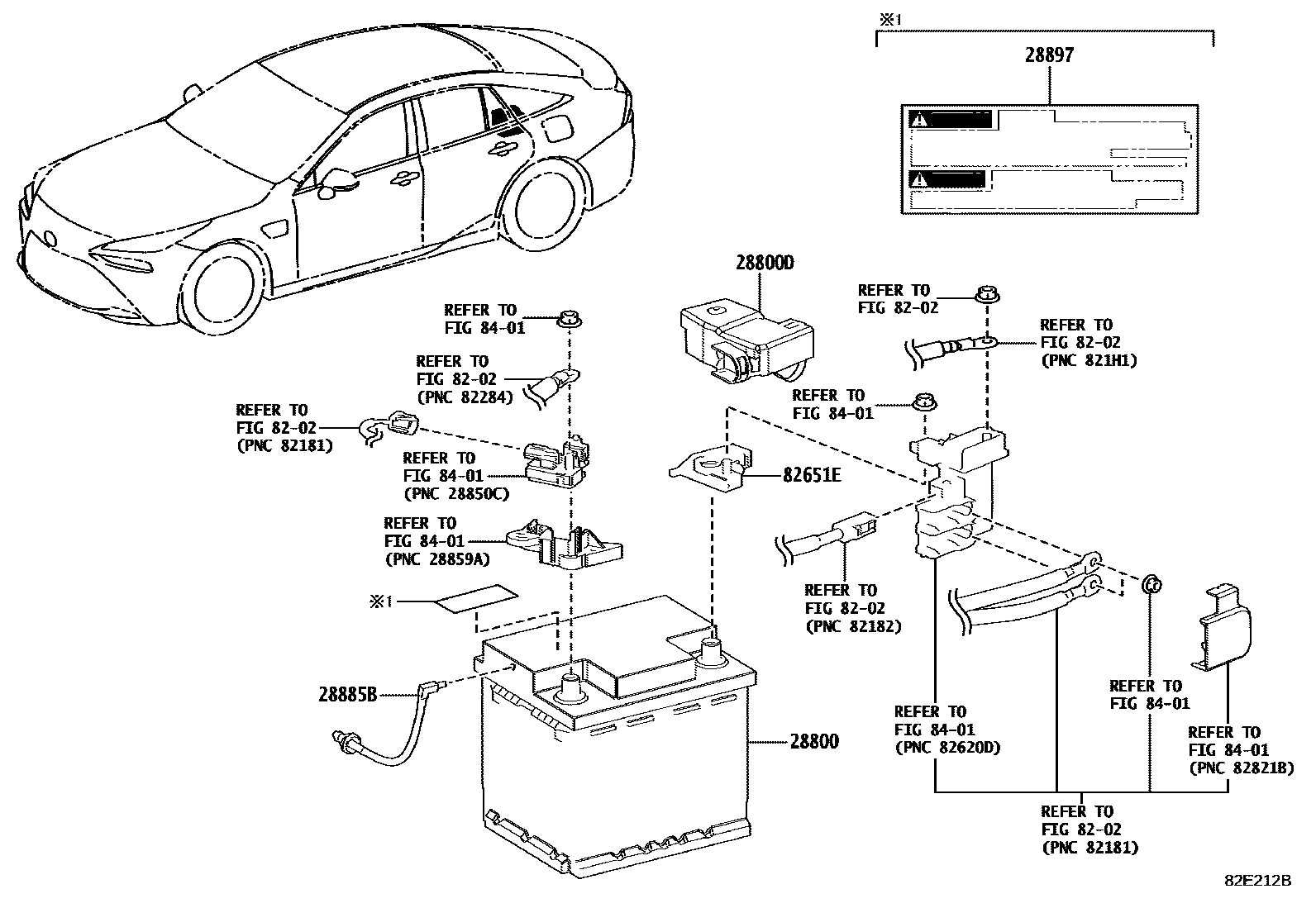

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1FC BATTERY 0003 1FC BATTERY(WITH(ADVANCED DRIV0004 1FC BATTERY

28800BATTERY

main28800-25030i3KM..JPD20202011-202206

LN2

sub28800-25031

main28800-25031i3KM..JPD20202207-202302

LN2

sub28800-25032

main28800-25032i3KM..JPD20202303-202403

LN2

sub28800-25033

main28800-25033i3KM..JPD20..S202404-202411

LN2

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-62030i3KM..JPD20202011-202411

28885BHOSE, BATTERY

main28885-77030i3KM..JPD20202011-202411

28897PLATE, BATTERY CAUTION

main28897-31021

8202

82651EBLOCK, TERMINAL

main82651-62010iJPD20202011-202411

8401

7 parts on this diagram · 4 diagrams in section
