FUEL TANK & TUBE

0001 1FUEL TANK NO.1,NO.2 0002 1FUEL TANK NO.3 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1HYDROGEN SUPPLY SYSTEM 0006 1FUEL LID OPENER

7403

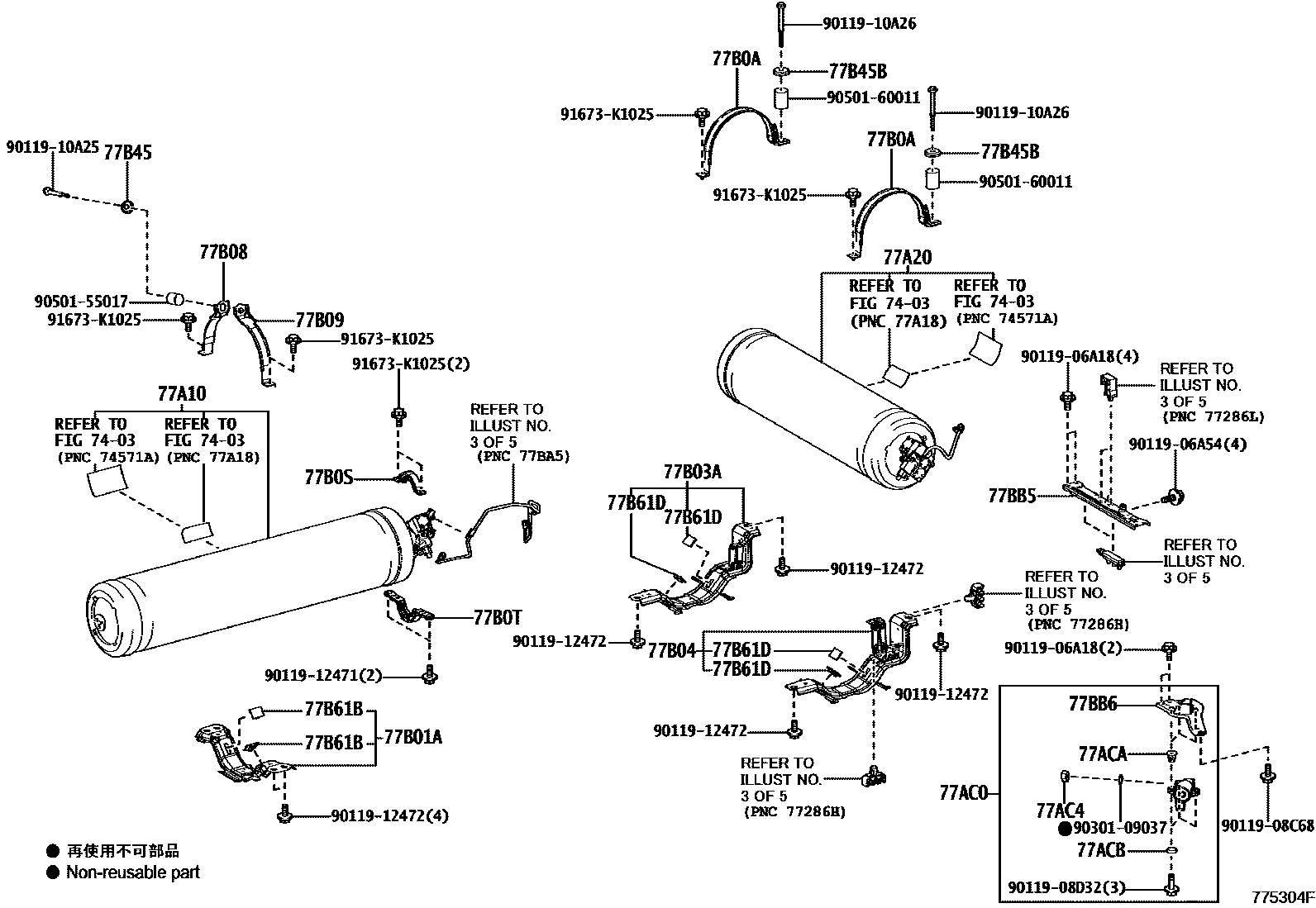

77A10TANK ASSY, HYDROGEN, NO.1

main77A10-62081iJPD20202011-202306

sub77A10-62082

main77A10-62082iJPD20202307-202411

77A20TANK ASSY, HYDROGEN, NO.2

main77A20-62081iJPD20202011-202306

sub77A20-62082

main77A20-62082iJPD20202307-202411

77AC0REGULATOR ASSY, HYDROGEN SUPPLY

main77AC0-62040iJPD20..S202011-202411

77AC4PLUG, HYDROGEN SUPPLY REGULATOR, NO.1

main77AC4-62020iJPD20202011-202411

77ACACUSHION, HYDROGEN SUPPLY REGULATOR, UPPER

main77ACA-62010iJPD20202011-202411

77ACBCUSHION, HYDROGEN SUPPLY REGULATOR, LOWER

main77ACB-62010iJPD20202011-202411

77B01AFRAME SUB-ASSY, HYDROGEN TANK, NO.1

main77B01-62030iJPD20202011-202411

77B03FRAME SUB-ASSY, HYDROGEN TANK, REAR

main77B05-62030iJPD20..S202011-202411

77B03AFRAME SUB-ASSY, HYDROGEN TANK, NO.2 RH

main77B03-62020iJPD20202011-202411

77B04FRAME SUB-ASSY, HYDROGEN TANK, NO.2 LH

main77B04-62010iJPD20202011-202411

77B08BAND SUB-ASSY, HYDROGEN TANK, NO.1 RH

main77B08-62010iJPD20202011-202411

77B09BAND SUB-ASSY, HYDROGEN TANK, NO.1 LH

main77B09-62010iJPD20202011-202411

77B0ABAND SUB-ASSY, HYDROGEN TANK, NO.2

main77B0A-62010iJPD20202011-202411

77B0SBRACKET SUB-ASSY, HYDROGEN TANK, UPPER

main77B0S-62010iJPD20202011-202411

77B0TBRACKET SUB-ASSY, HYDROGEN TANK, LOWER

main77B0T-62010iJPD20202011-202411

77B45CUP, HYDROGEN TANK SPRING BOLT, FRONT

main77B45-62020iJPD20202011-202411

77B45BCUP, HYDROGEN TANK SPRING BOLT, NO.2

main77B45-62030iJPD20202011-202411

77B61SEAT, HYDROGEN TANK FRAME, FRONT

main77B61-62020iJPD20..B202011-202101

sub77B61-62021

main77B61-62021iJPD20..B202102-202312

77B61BSEAT, HYDROGEN TANK FRAME, NO.1

main77B61-62020iJPD20202011-202101

sub77B61-62021

main77B61-62021iJPD20202102-202411

77B61DSEAT, HYDROGEN TANK FRAME, NO.3

main77B61-62020iJPD20202011-202101

sub77B61-62021

main77B61-62021iJPD20..S202102-202411

77BB5BRACKET, HYDROGEN TANK, NO.1

main77BB5-62010iJPD20202011-202411

77BB6BRACKET, HYDROGEN TANK, NO.2

main77BB6-62010iJPD20202011-202411

9011906A18

main90119-06A18

9011906A54

main90119-06A54

9011908C68

main90119-08C68

9011908D32

main90119-08D32

9011910A25

main90119-10A25

9011910A26

main90119-10A26

9011912471

main90119-12471

9011912472

main90119-12472

9030109037

main90301-09037

9050155017

main90501-55017

9050160011

main90501-60011

91673K1025

main91673-K1025

35 parts on this diagram · 6 diagrams in section
