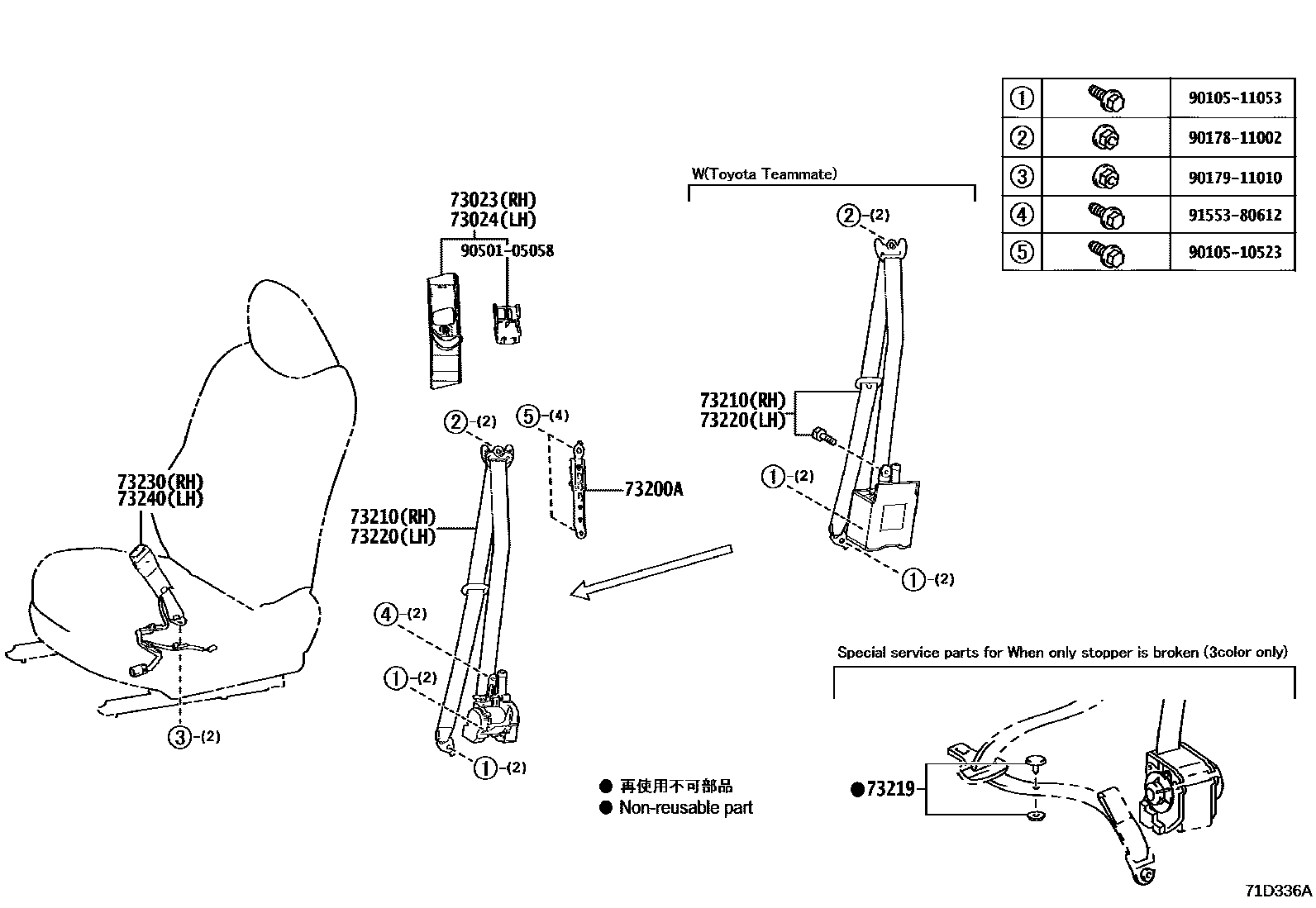

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/BLACK,TRIM2#
NOBLE BROWN/BLACK,TRIM0#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/BLACK,TRIM2#
NOBLE BROWN/BLACK,TRIM0#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#
BLACK,TRIM0#,2#
9010510523
9010511053
9017811002
9017911010
9050105058
9155380612
14 parts on this diagram · 2 diagrams in section
