REAR SEAT & SEAT TRACK

66990HOLDER ASSY, CUP

main66990-41010-C0iJPD20..H202011-202411

BLACK,TRIM0#,2#

main66990-78010-C1iJPD20..S202011-202411

BLACK,TRIM0#,2#

sub66990-78010

main66990-78010-C1iJPD20..S202011-202312

BLACK,TRIM2#

sub66990-78010

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-62030-C0iJPD20..B202011-202312

BLACK,TRIM2#

main71075-62040-A0iJPD20..S202011-202411

WHITE&WHITE,TRIM0#

main71075-62040-C0iJPD20..S202011-202411

BLACK&GRAY,TRIM2#

main71075-62060-A0iJPD20..H202011-202411

WHITE&WHITE,TRIM0#

main71075-62060-C0iJPD20..H202011-202411

BLACK&GRAY,TRIM20

main71075-62060-C1iJPD20..H202011-202312

BLACK&IVORY,TRIM20,21

main71075-62060-C1iJPD20..H202312-202411

BLACK&IVORY,TRIM21

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-62090-C1iJPD20..B202011-202312

BLACK,TRIM2#

main71077-62100-A2iJPD20..S202011-202411

WHITE&WHITE,TRIM0#

main71077-62100-C2iJPD20..S202011-202411

BLACK&GRAY,TRIM2#

main71077-62110-A2iJPD20..H202011-202411

WHITE&WHITE,TRIM0#

main71077-62110-C4iJPD20..H202011-202411

BLACK&IVORY,TRIM21

main71077-62110-C5iJPD20..H202011-202411

BLACK&GRAY,TRIM20

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-30090iJPD20..S202011-202411

71389DPLATE, REAR SEAT STOPPER

main71389-30010iJPD20202011-202411

71398AHOLDER, REAR SEATBACK

main71398-33010iJPD20..S202104-202411

main71398-33010-C1iJPD20202011-202104

BLACK

sub71398-33010

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-62030iJPD20202011-202411

71507APAD SUB-ASSY, REAR SEATBACK

main71507-62020iJPD20..S202011-202411

71891BRACKET, REAR SEATBACK SET, NO.1

main71891-62010iJPD20202011-202411

71931ASUPPORT, REAR SEAT HEADREST

main71930-47020-C4iJPD20..B202011-202312

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71930-47020-C4iJPD20202011-202411

W(LOCK),BLACK,TRIM0#,2#

sub71930-47020

main71931-47020-C4iJPD20..H,S202011-202312

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

main71931-47020-C4iJPD20..H,S202011-202411

W/O(LOCK),BLACK,TRIM0#,2#

sub71931-47020

71940AHEADREST ASSY, REAR SEAT

main71940-62020-C0iJPD20..B202212-202312

BLACK,TRIM2#

main71940-62020-C1iJPD20..B202011-202212

BLACK,TRIM2#

main71940-62030-A0iJPD20..H,S202011-202212

WHITE&WHITE,TRIM0#

main71940-62030-C0iJPD20..H202011-202212

BLACK&IVORY,TRIM21

main71940-62030-C1iJPD20..H202011-202212

BLACK&GRAY,TRIM2#

main71940-62030-C1iJPD20..H202011-202212

BLACK&GRAY,TRIM20

main71940-62031-A2iJPD20202212-202411

WHITE/WHITE,TRIM0#

main71940-62031-C4iJPD20..H202212-202411

BLACK/IVORY,TRIM21

main71940-62031-C5iJPD20..H202212-202312

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2#

main71940-62031-C5iJPD20..H202212-202411

BLACK/GRAY,TRIM20

main71940-62031-C5iJPD20..H202212-202411

BLACK/GRAY,TRIM2#

71956BSUPPORT, REAR SEAT HEADREST

main71930-47020-C4iJPD20202011-202411

W(LOCK),BLACK,TRIM0#,2#

sub71930-47020

main71930-47020-C4iJPD20..B202011-202312

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71931-47020-C4iJPD20..S202011-202411

W/O(LOCK),BLACK,TRIM0#,2#

sub71931-47020

main71931-47020-C4iJPD20..B202011-202312

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-62010-C0iJPD20..B202212-202312

BLACK,TRIM2#

main71960-62010-C1iJPD20..B202011-202212

BLACK,TRIM2#

main71960-62020-A1iJPD20..H,S202011-202212

WHITE&WHITE,TRIM0#

main71960-62020-C1iJPD20..H202011-202212

BLACK&IVORY,TRIM21

main71960-62020-C2iJPD20..H202011-202212

BLACK&GRAY,TRIM2#

main71960-62020-C2iJPD20..H202011-202212

BLACK&GRAY,TRIM20

main71960-62021-A3iJPD20202212-202411

WHITE/WHITE,TRIM0#

main71960-62021-C5iJPD20..H202212-202411

BLACK/IVORY,TRIM21

main71960-62021-C6iJPD20..H202212-202411

BLACK/GRAY,TRIM2#

main71960-62021-C6iJPD20..H202212-202411

BLACK/GRAY,TRIM20

main71960-62021-C6iJPD20..B202212-202312

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iJPD20202011-202411

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-62010-C0iJPD20..B202011-202312

BLACK,TRIM2#

main72830-62020-A1iJPD20..S202011-202411

WHITE&WHITE,TRIM0#

main72830-62020-C1iJPD20..S202011-202411

BLACK&GRAY,TRIM2#

main72830-62110-A1iJPD20..H202011-202411

WHITE&WHITE,TRIM0#

main72830-62110-C2iJPD20..H202312-202411

BLACK&IVORY,TRIM21

main72830-62110-C2iJPD20..H202011-202312

BLACK&IVORY,TRIM20,21

main72830-62110-C3iJPD20..H202011-202411

BLACK&GRAY,TRIM20

72860BOX ASSY, REAR SEAT CENTER ARMREST

main72860-62070-A2iJPD20..H202011-202411

WHITE&WHITE,TRIM0#

main72860-62070-C4iJPD20..H202011-202411

BLACK&IVORY,TRIM21

main72860-62070-C5iJPD20..H202011-202411

BLACK&GRAY,TRIM20

72868COVER, CENTER ARMREST HINGE, RH

main72868-62010-C0iJPD20202011-202411

BLACK,TRIM0#,2#

main72868-62010-C0iJPD20..B202011-202312

BLACK,TRIM2#

72869COVER, CENTER ARMREST HINGE, LH

main72869-62010-C0iJPD20..H,S202011-202411

BLACK,TRIM0#,2#

main72869-62010-C0iJPD20..B202011-202312

BLACK,TRIM2#

72987COVER, REAR SEAT CENTER ARMREST

main72987-78010iJPD20..S202011-202411

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-62020iJPD20202011-202411

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-62020iJPD20202011-202411

8202

82668FHOLDER, CONNECTOR

main90980-12413iJPD20..S202011-202411

85867BBLOWER, REAR SEATBACK CLIMATE CONTROL, RH

85867CBLOWER, REAR SEATBACK CLIMATE CONTROL, LH

87501DCONTROL SUB-ASSY, SEAT HEATER

main87501-33010iJPD20..H202011-202411

87510PHEATER ASSY, SEAT

main87510-62050iJPD20..H202011-202411

87510QHEATER ASSY, SEAT

main87510-62060iJPD20..H202011-202411

87510RHEATER ASSY, SEAT

main87530-62070iJPD20..H202011-202411

87510SHEATER ASSY, SEAT

main87530-62080iJPD20..H202011-202411

9010906208

main90109-06208

9011908C96

main90119-08C96

9017906274

main90179-06274

9167180820

main91671-80820

9352054014

main93520-54014

9356054012

main93560-54012

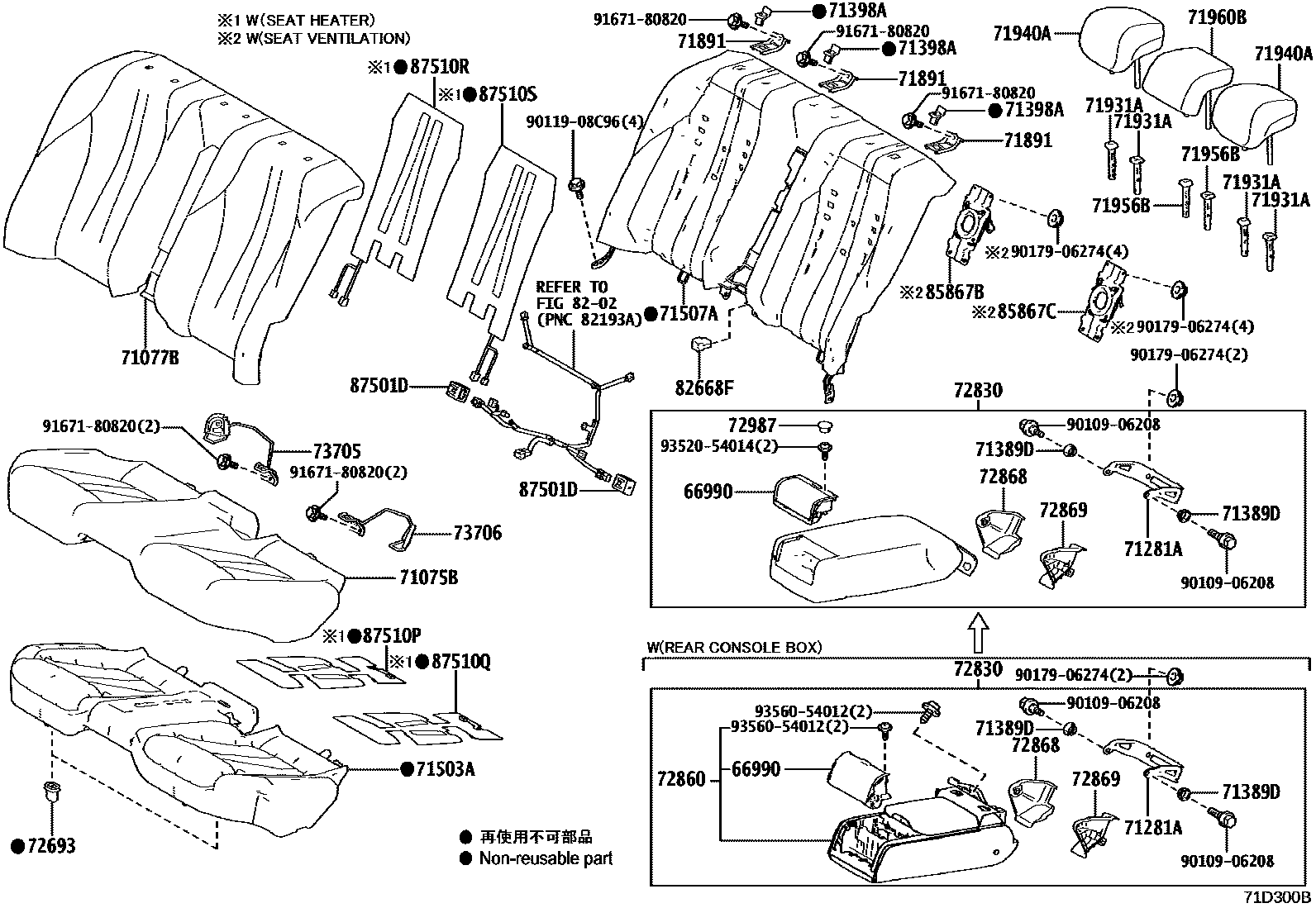

36 parts on this diagram · 1 diagram in section
