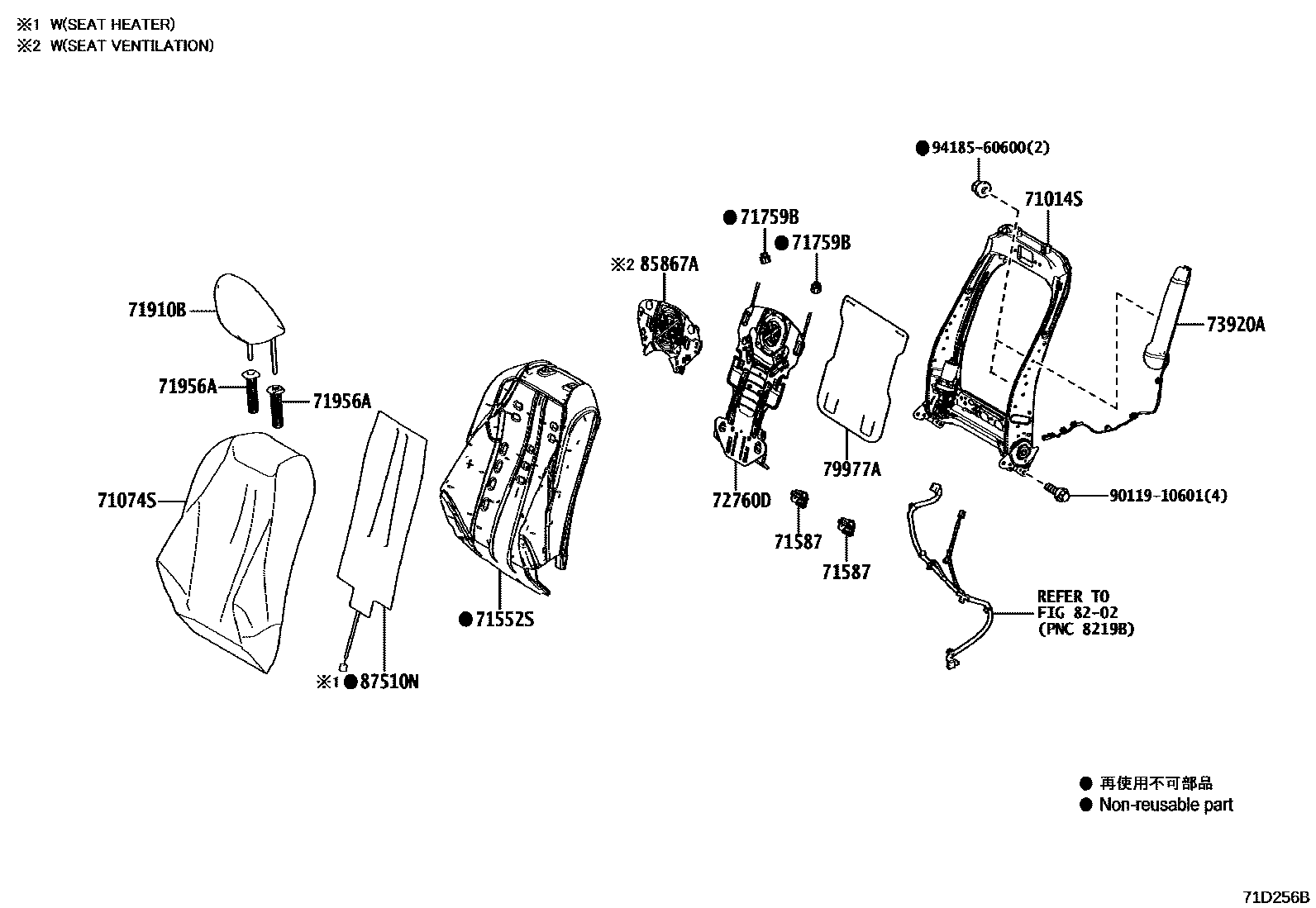

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE(SEAT BACK) 0002 1DRIVER SIDE(SEAT CUSHION) 0003 1PASSENGER SIDE(SEAT BACK) 0004 1PASSENGER SIDE(SEAT CUSHION(40005 1PASSENGER SIDE(SEAT CUSHION(8

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-62100iJPD20..S202011-202411

main71014-62110iJPD20..H202011-202411

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-62030-C0iJPD20..B202011-202312

BLACK,TRIM2#

main71074-62070-A0iJPD20..S202011-202411

WHITE&WHITE,TRIM0#

main71074-62070-C0iJPD20..S202011-202411

BLACK&GRAY,TRIM2#

main71074-62120-A0iJPD20..H202011-202411

WHITE&WHITE,TRIM0#

main71074-62120-C0iJPD20..H202011-202312

BLACK&IVORY,TRIM20,21

main71074-62120-C0iJPD20..H202312-202411

BLACK&IVORY,TRIM21

main71074-62120-C1iJPD20..H202011-202411

BLACK&GRAY,TRIM20

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-30B10iJPD20..S202011-202411

main71552-62020iJPD20..H202011-202411

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iJPD20202011-202411

71759BHOOK, FRONT SEATBACK

main71759-50040iJPD20..S202011-202411

71910BHEADREST ASSY, FRONT SEAT

main71910-62040-C1iJPD20..B202011-202312

BLACK,TRIM2#

main71910-62050-A0iJPD20..H,S202011-202411

WHITE&WHITE,TRIM0#

main71910-62050-C0iJPD20..H202312-202411

BLACK&IVORY,TRIM21

main71910-62050-C0iJPD20..H202011-202312

BLACK&IVORY,TRIM20,21

main71910-62050-C1iJPD20..H202011-202411

BLACK&GRAY,TRIM2#

main71910-62050-C1iJPD20..S202011-202411

BLACK&GRAY,TRIM20

71956ASUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iJPD20..H,S202011-202312

W(LOCK),BLACK,TRIM2#

main71930-47050-C5iJPD20202011-202411

W(LOCK),BLACK,TRIM0#,2#

main71931-47030-C4iJPD20..S202011-202411

W/O(LOCK),BLACK,TRIM0#,2#

main71931-47030-C4iJPD20..B202011-202312

W/O(LOCK),BLACK,TRIM2#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72750-33140iJPD20..B,S202011-202312

main72750-33150iJPD20..H202011-202411

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-12090iJPD20202011-202411

79977AFELT, SEATBACK

main79977-33030iJPD20..S202011-202411

8202

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

main85867-30040iJPD20..H202011-202411

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-30300iJPD20202011-202411

9011910601

main90119-10601

9418560600

main94185-60600

15 parts on this diagram · 5 diagrams in section
