E
EPC Data

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

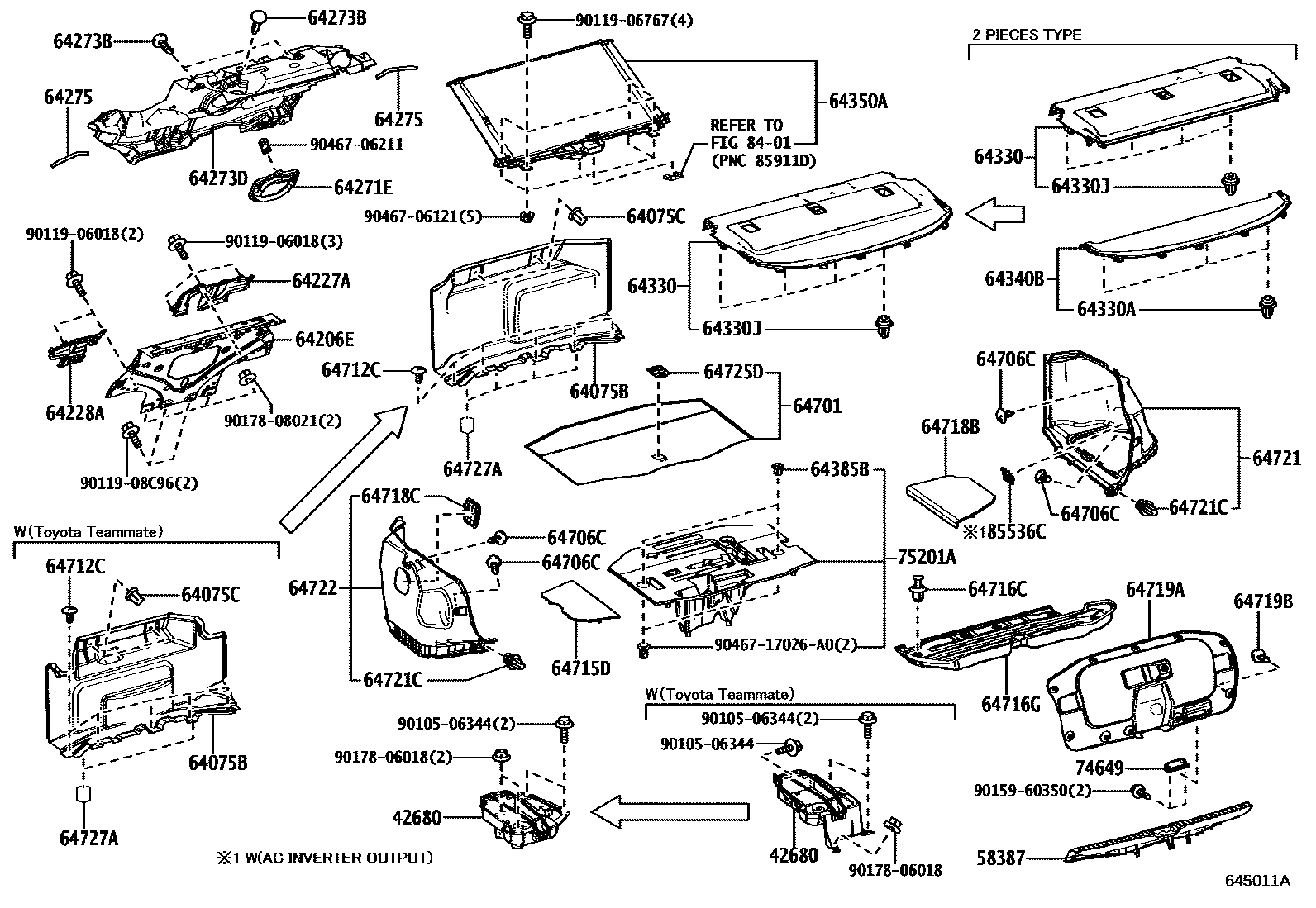

Parts diagram
42680CASE ASSY, TIRE REPAIR KIT
main42680-62010i202011-202411
main42680-62020i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
58387PLATE, REAR FLOOR FINISH
main58387-62030-C0i202011-202312
BLACK,TRIM2#
main58387-62030-C0i202011-202411
BLACK,TRIM0#,2#
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64075-62030-C0i202011-202312
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM2#
main64075-62030-C0i202011-202411
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM0#,2#
main64075-62040-C0i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&AC INVERTER OUTPUT-120V/100W,BLACK,TRIM0#,2#
main64075-62050-C0i202011-202411
BLACK,TRIM0#,2#
main64075-62050-C0i202011-202312
BLACK,TRIM2#
64075CCLIP, LUGGAGE COMPARTMENT TRIM COVER
main90467-05145i202011-202411
64206EPANEL SUB-ASSY, ROOM PARTITION
main64206-62010i202011-202411
64227AEXTENSION, CENTER FLOOR TO BLACE, NO.1
main64227-62010i202011-202411
64228AEXTENSION, CENTER FLOOR TO BRACE, NO.2
main64228-62010i202011-202411
64271EPANEL, ROOM PARTITION
main64298-62010i202011-202411
64273BCLIP
main90467-05164-B8i202011-202411
LT.GRAY
sub90467-05164
64273DPAD, ROOM PARTITION, NO.1
main64273-62010i202011-202411
main64273-62020i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
64275PAD, ROOM PARTITION TRIM, NO.2
main64274-62020i202011-202411
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-62030-C0i202011-202312
BLACK,TRIM2#
main64330-62050-C0i202011-202411
BLACK,TRIM0#,2#
main64330-62060-C0i202011-202411
BLACK,TRIM0#,2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-10161i202011-202411
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-10161i202011-202411
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
main64340-62010-C0i202011-202411
BLACK,TRIM0#,2#
64350ASHADE ASSY, REAR WINDOW
main64350-62010i202011-202411
64385BCLIP
main90467-17027-C0i202011-202411
BLACK
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
main64701-62010-C0i202011-202312
BLACK,TRIM2#
main64701-62010-C0i202011-202411
BLACK,TRIM0#,2#
main64701-62020-C0i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,BLACK,TRIM0#,2#
64706CCLIP
main90467-08186-C3i202011-202411
BLACK,TRIM0#,2#
sub90467-08186
main90467-08186-C3i202011-202312
BLACK,TRIM2#
sub90467-08186
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-08186-C3i202011-202312
BLACK,TRIM2#
sub90467-08186
main90467-08186-C3i202011-202411
BLACK,TRIM0#,2#
sub90467-08186
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-62010-C0i202011-202411
BLACK,TRIM0#,2#
main64715-62010-C0i202011-202312
BLACK,TRIM2#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-07214i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-62030-C0i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,BLACK,TRIM0#,2#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
main64718-62020-C0i202011-202411
BLACK,TRIM0#,2#
main64718-62020-C0i202011-202312
BLACK,TRIM2#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
main64718-33010i202011-202411
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-62030-C0i202011-202312
BLACK,TRIM2#
main64719-62030-C0i202011-202411
BLACK,TRIM0#,2#
main64719-62040-C0i202011-202411
BLACK,TRIM0#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-08186-C3i202011-202411
BLACK,TRIM0#,2#
sub90467-08186
main90467-08186-C3i202011-202312
BLACK,TRIM2#
sub90467-08186
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-62030-C0i202011-202411
BLACK,TRIM0#,2#
main64721-62030-C0i202011-202312
BLACK,TRIM2#
main64721-62040-C0i202011-202210
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM0#,2#
sub64721-62061
sub85536-62011
main64721-62040-C0i202011-202210
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM2#
sub64721-62061
sub85536-62011
main64721-62050-C0i202111-202210
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&AC INVERTER OUTPUT-120V/100W,BLACK,TRIM0#,2#
sub64721-62051
sub85536-62011
main64721-62051-C0i202210-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&AC INVERTER OUTPUT-120V/100W,BLACK,TRIM0#,2#
main64721-62061-C0i202210-202411
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM0#,2#
main64721-62061-C0i202210-202312
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM2#
64721CCLIP(LUGGAGE COMPARTMENT)
main90467-10161i202011-202411
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-62020-C0i202011-202411
BLACK,TRIM0#,2#
main64722-62020-C0i202011-202312
BLACK,TRIM2#
main64722-62040-C0i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&AC INVERTER OUTPUT-120V/100W,BLACK,TRIM0#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
main64725-33100i202011-202411
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
main64727-62010i202011-202312
main64727-62010i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&AC INVERTER OUTPUT-120V/100W
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
main74649-51010-C3i202011-202312
BLACK,TRIM2#
sub74649-51010
main74649-51010-C3i202011-202411
BLACK,TRIM0#,2#
sub74649-51010
75201ABOX, TOOL
main75201-62020i202011-202411
main75201-62030i202111-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
8401
85536CBEZEL, POWER OUTLET SOCKET
main85536-62010-C0i202011-202210
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM0#,2#
sub85536-62011
sub64721-62051
sub64721-62061
main85536-62010-C0i202111-202210
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&AC INVERTER OUTPUT-120V/100W,BLACK,TRIM0#,2#
sub85536-62011
sub64721-62051
sub64721-62061
main85536-62010-C0i202011-202210
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM2#
sub85536-62011
sub64721-62051
sub64721-62061
main85536-62011-C0i202210-202411
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&AC INVERTER OUTPUT-120V/100W,BLACK,TRIM0#,2#
main85536-62011-C0i202210-202312
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM2#
main85536-62011-C0i202210-202411
AC INVERTER OUTPUT-120V/1500W,BLACK,TRIM0#,2#
9010506344
main90105-06344
9011906018
main90119-06018
9011906767
main90119-06767
9011908C96
main90119-08C96
9015960350
main90159-60350
9017806018
main90178-06018
9017808021
main90178-08021
9046706121
main90467-06121
9046706211
main90467-06211
9046717026A0
main90467-17026A0

46 parts on this diagram · 1 diagram in section
