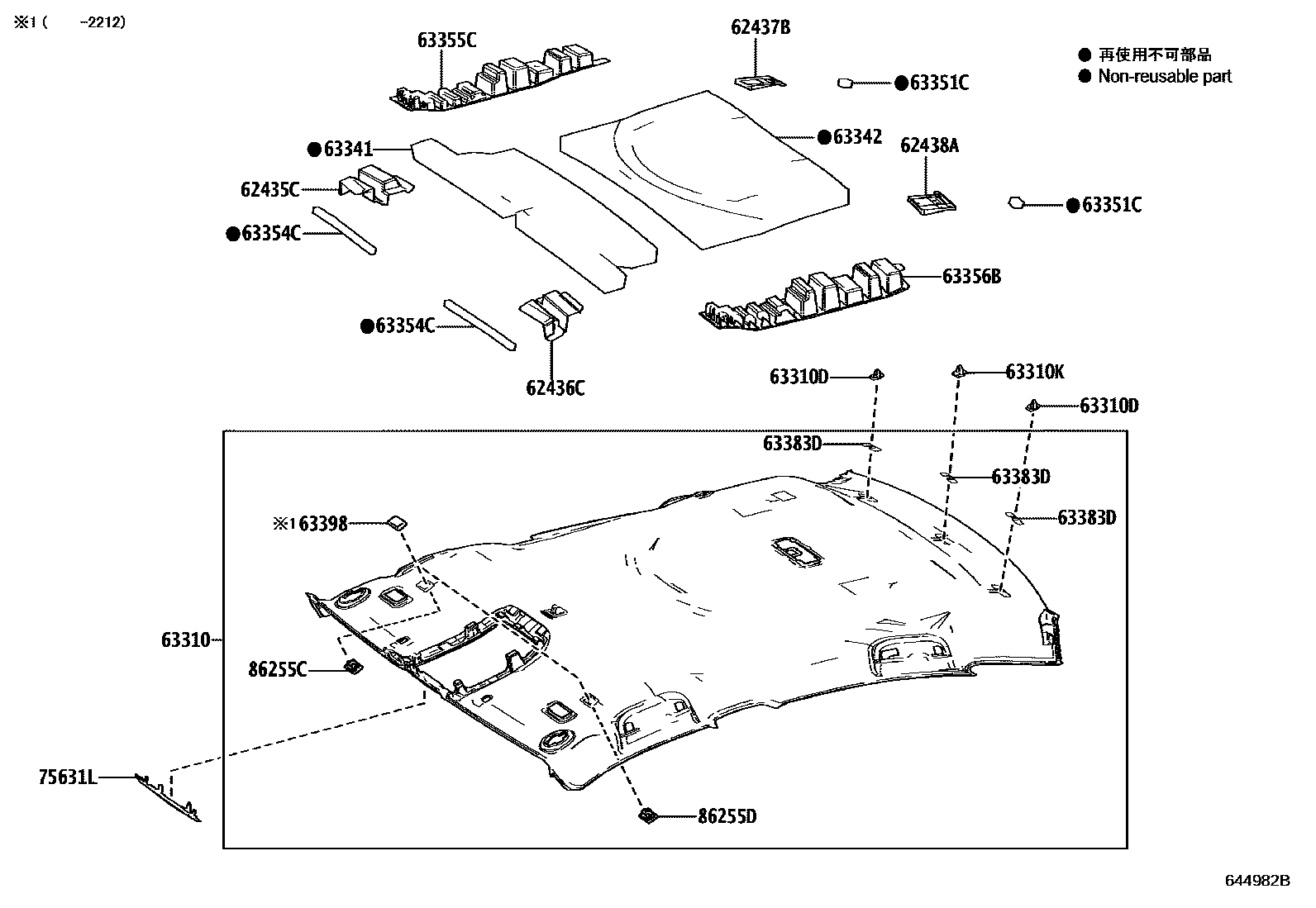

ROOF HEADLINING & SILENCER PAD
62435CPAD, ROOF SIDE RAIL GARNISH, RH
62436CPAD, ROOF SIDE RAIL GARNISH, LH
62437BPAD, ROOF SIDE RAIL, REAR RH
62438APAD, ROOF SIDE RAIL, REAR LH
63310HEADLINING ASSY, ROOF
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM0#,2#
63310DCLIP, ROOF HEADLINING
63310KCLIP
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63354CPAD, ROOF HEADLINING FRONT SIDE
63355CPAD, ROOF HEADLINING, RH
63356BPAD, ROOF HEADLINING, LH
63383DRETAINER, ROOF HEADLINING, REAR
63398PLATE, ROOF HEADLINING SUPPORT
75631LGARNISH, ROOF TOP, FRONT
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM0#,2#
86255CCASE, MICROPHONE, RH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
86255DCASE, MICROPHONE, LH
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
LT.GRAY,TRIM0#,2#
LT.GRAY,TRIM2#
18 parts on this diagram · 2 diagrams in section
