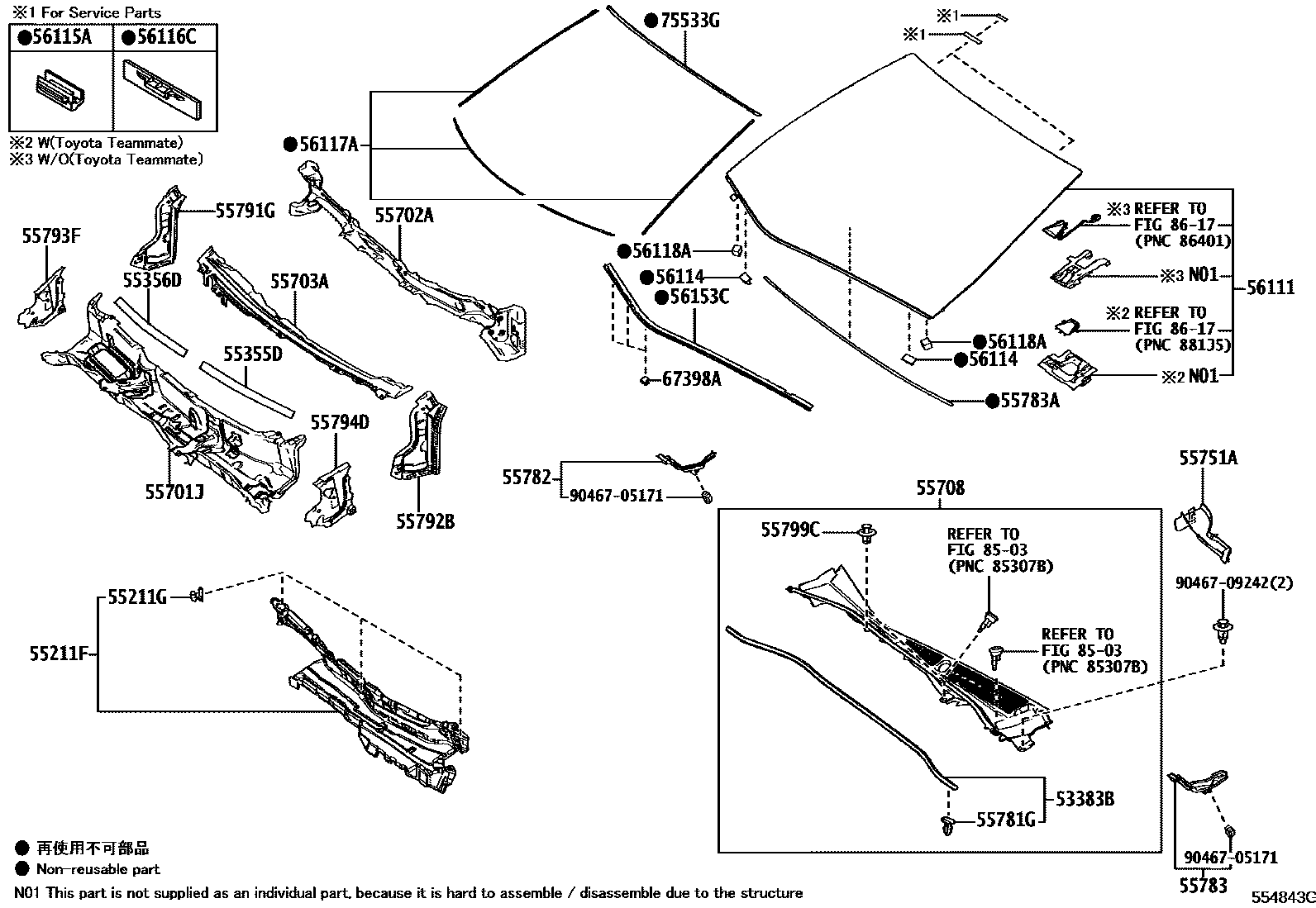

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211GCLIP, DASH PANEL INSULATOR COVER
55355DCUSHION, INSTRUMENT PANEL, NO.1
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55703APANEL SUB-ASSY, COWL TOP, INNER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55751ASHIELD, COWL VENTILATOR SPLASH, RH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH
55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH
55783APAD, COWL TOP SILENCER
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1387 OR 650,CANADA SPEC
*D,L=1387 OR 650
*D,L=1387 OR 650,CANADA SPEC&COLD AREA SPEC
*D,L=1387 OR 650,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
*D,L=1387 OR 650,ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&COLD AREA SPEC
*D,L=1387 OR 650,COLD AREA SPEC
*D,L=1387 OR 650,CANADA SPEC&WITHOUT(COLD AREA SPEC)
*D,L=1387 OR 650,WITHOUT(COLD AREA SPEC)
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
CANADA SPEC
CANADA SPEC&COLD AREA SPEC
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE
ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE&COLD AREA SPEC
COLD AREA SPEC
CANADA SPEC&WITHOUT(COLD AREA SPEC)
WITHOUT(COLD AREA SPEC)
56153CMOULDING, FRONT WINDOW, INNER CENTER
67398AGUIDE(FOR WINDOW DEFOGGER WIRE)
75533GMOULDING, WINDSHIELD, OUTSIDE
8503
8617
9046705171
main90467-05171
9046709242
main90467-09242
32 parts on this diagram · 1 diagram in section
