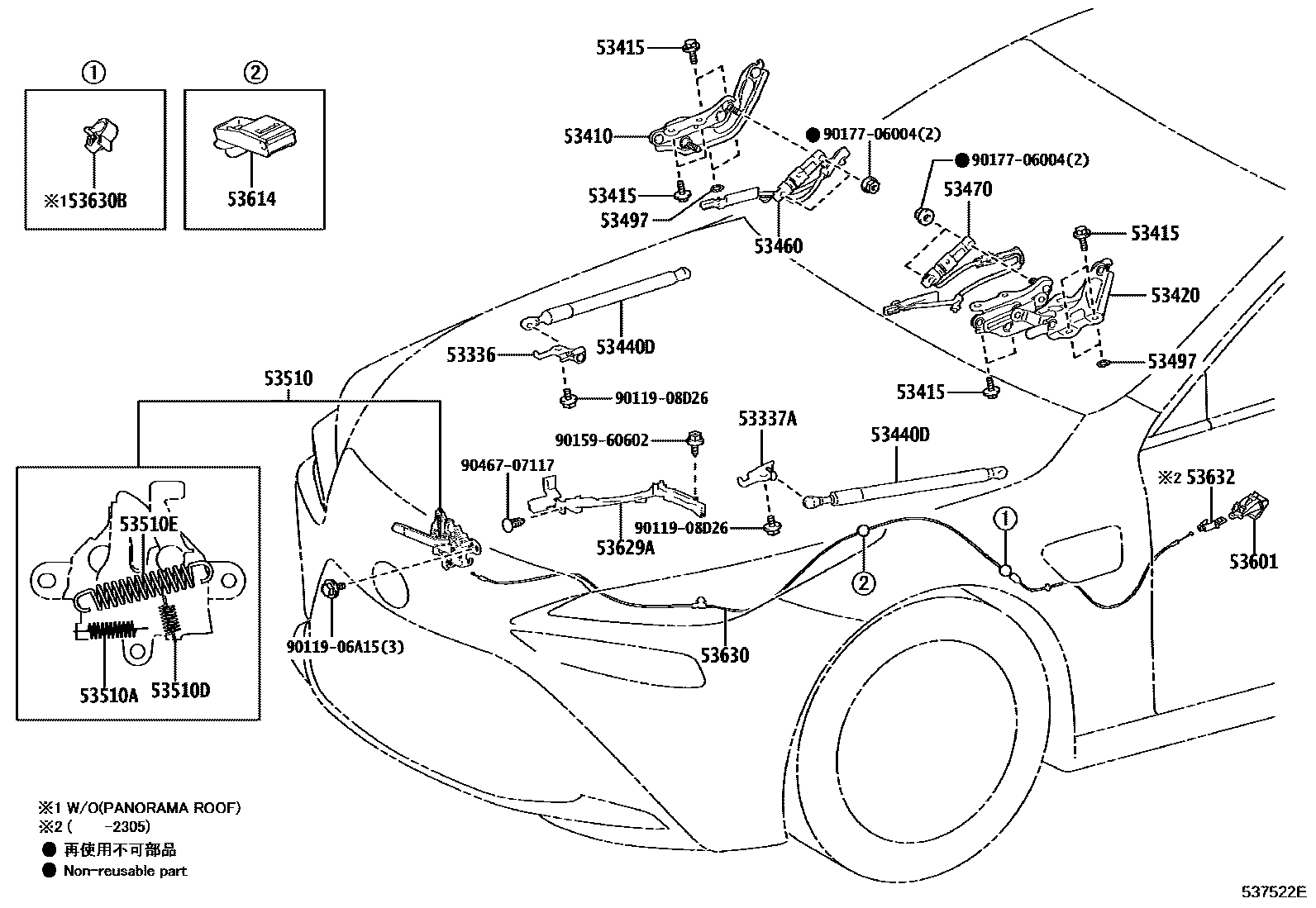

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337ABRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53415BOLT, HOOD HINGE
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
53497PAD, HOOD HINGE, NO.1
T=1.0
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=12
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
53614CLAMP, HOOD LOCK CONTROL CABLE
53629ACOVER, HOOD LOCK CONTROL CABLE
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53632HOLDER, HOOD LOCK CONTROL CABLE
9011906A15
main90119-06A15
9011908D26
main90119-08D26
9015960602
main90159-60602
9017706004
main90177-06004
9046707117
main90467-07117
24 parts on this diagram · 1 diagram in section
