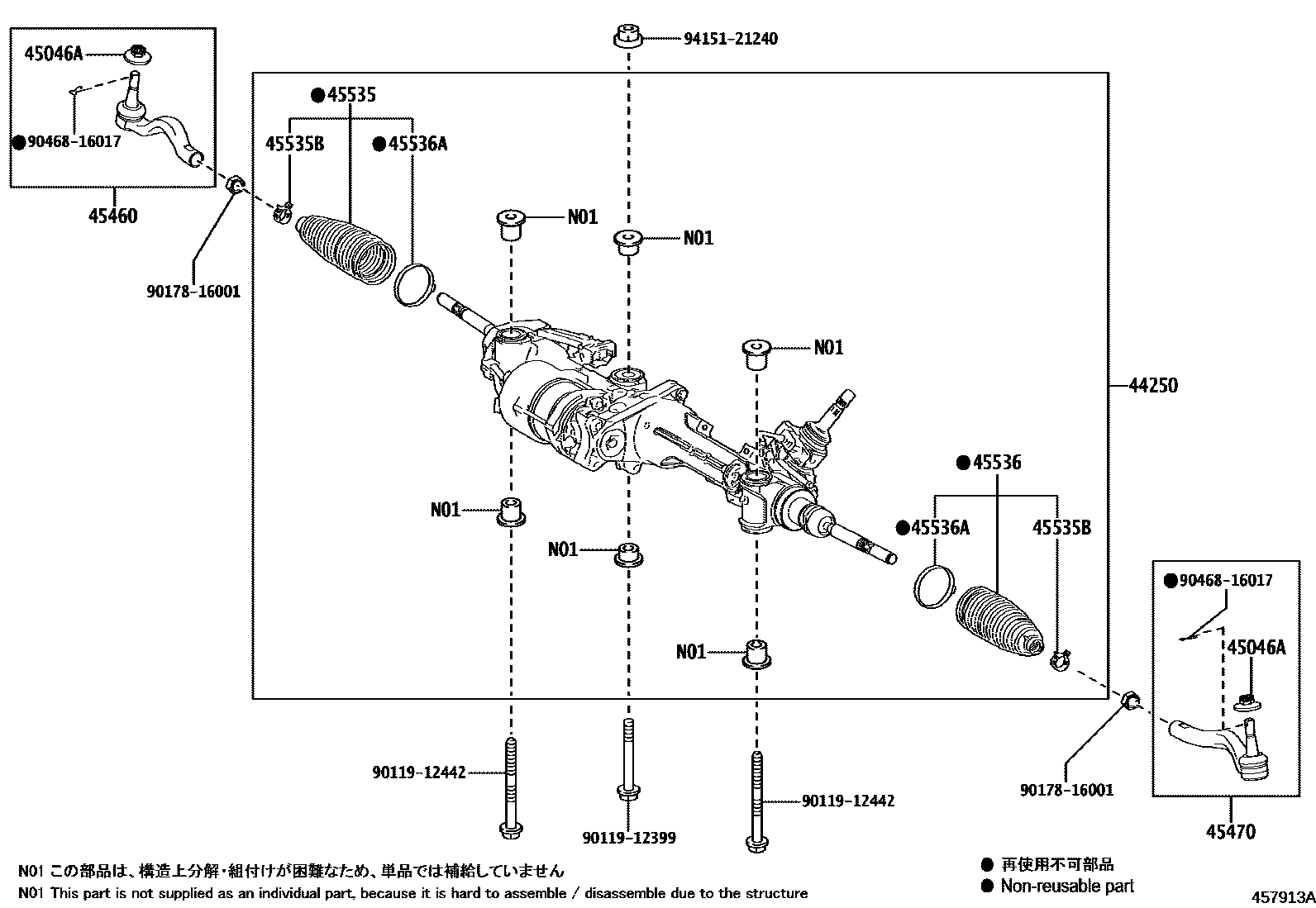

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-62031iJPD20..S202312-202411

main44250-62050iJPD20..H202111-202212

ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,*614

main44250-62051iJPD20..H202212-202406

ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE,*614

main44250-62052iJPD20..H202406-202411

ACTIVE SAFETY PACKAGE-TOYOTA TEAM MATE

main44250-62070iJPD20202011-202312

*614

main44250-62090iJPD20..H202011-202312

TIRE & DISC WHEEL-245/45R20, BLACK, ALL SEASON TIRE,*614

main44250-62090iJPD20..H202011-202312

TIRE & DISC WHEEL-245/45R20, *CR, ALL SEASON TIRE,*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iJPD20202011-202411

45460ROD ASSY, TIE, RH

main45460-59125iJPD20202011-202411

45470ROD ASSY, TIE, LH

main45470-59145iJPD20202011-202411

45535BOOT, STEERING RACK, NO.1

main45535-19005iJPD20202011-202411

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iJPD20202011-202411

45536BOOT, STEERING RACK, NO.2

main45535-19005iJPD20202011-202411

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02070iJPD20202011-202411

9011912399

main90119-12399

9011912442

main90119-12442

9017816001

main90178-16001

9046816017

main90468-16017

9415121240

main94151-21240

13 parts on this diagram · 1 diagram in section
