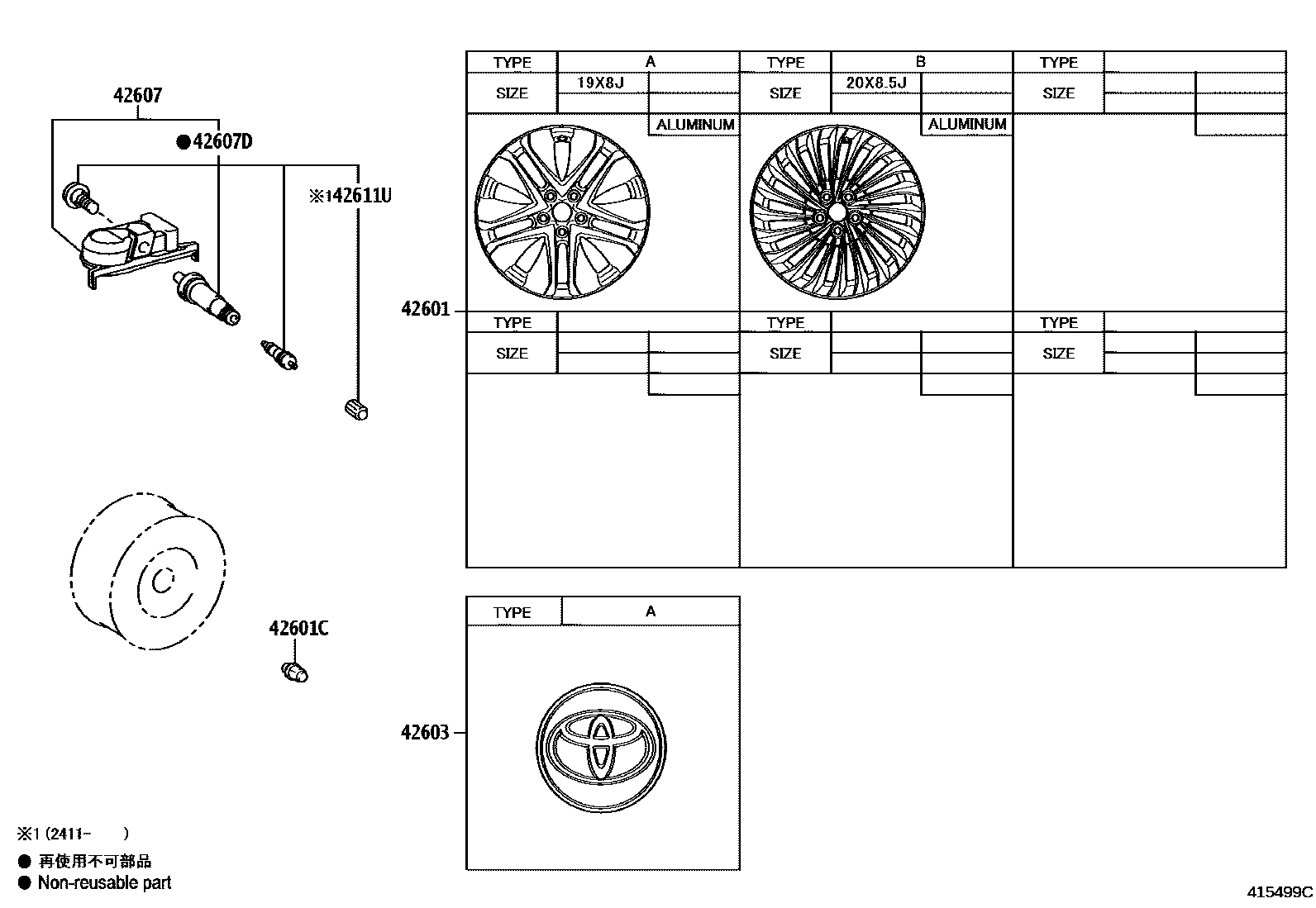

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-62050iJPD20..B202011-202312

19X8J,#,TYPE A:REFER ILLUST.

main42611-62090iJPD20..H202011-202411

19X8J,#,TYPE A:REFER ILLUST.

main4261A-62010iJPD20..S202011-202411

19X8J, #,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01121iJPD20..B,S202011-202312

TIRE & DISC WHEEL-245/45R20, *CR, ALL SEASON TIRE

main90942-01121iJPD20..S202312-202411

main90942-01122iJPD20..H202011-202411

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iJPD20..S202011-202411

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12010iJPD20202011-202411

main42607-60020iJPD20..S202411

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05043iJPD20202011-202411

main90942-05047iJPD20..S202411

42611UCAP, TIRE VALVE

main90942-05039iJPD20..S202411

6 parts on this diagram · 1 diagram in section
