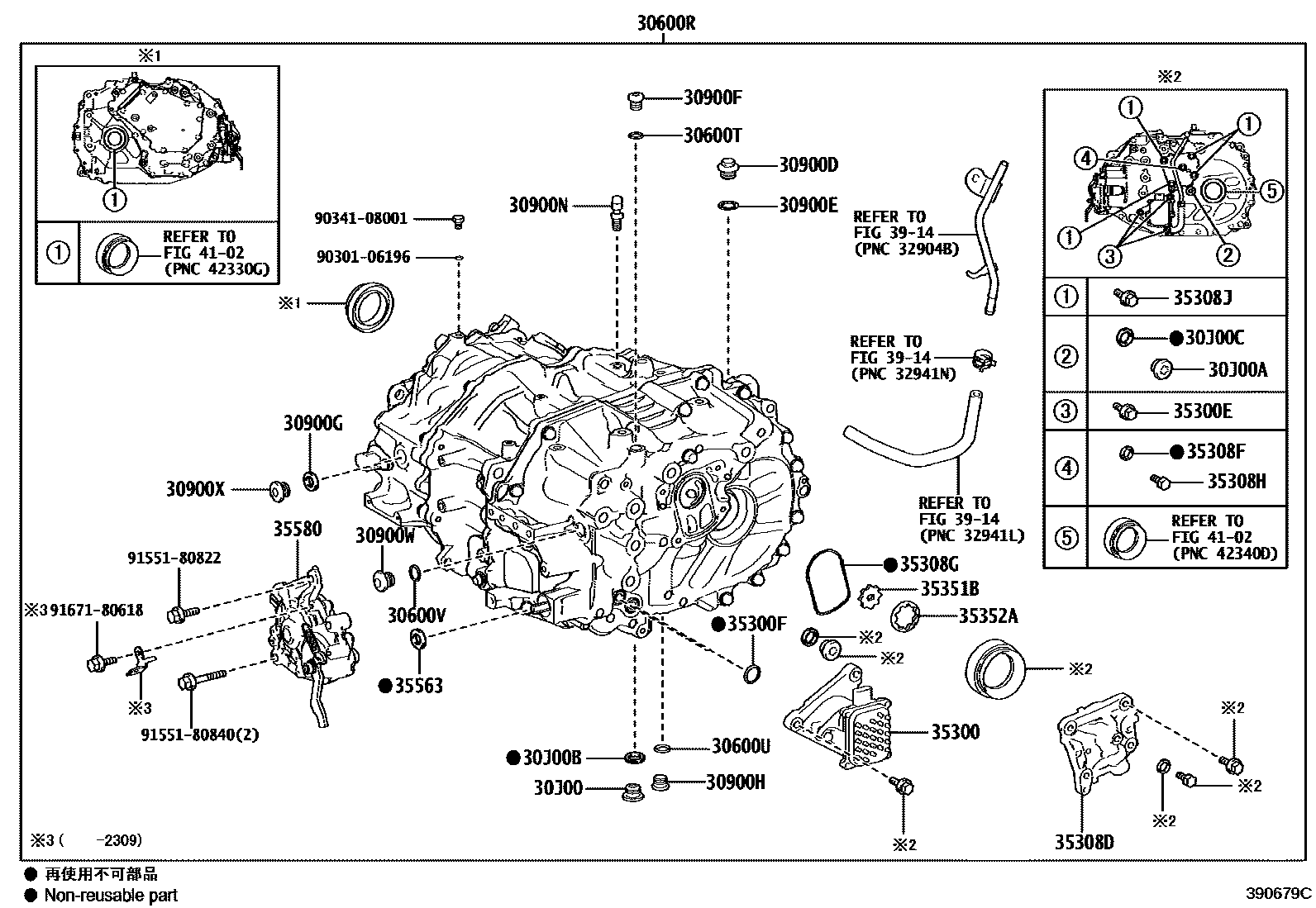

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30600TO RING, TRANSAXLE CASE, NO.1
30600UO RING, TRANSAXLE CASE, NO.2
30600VO RING, TRANSAXLE CASE, NO.3
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
CAP COLLER=BLACK
30900WPLUG, W/HEAD STRAIGHT SCREW, NO.4(TRANSAXLE HOUSING & CASE)
30900XPLUG, W/HEAD STRAIGHT SCREW, NO.5(TRANSAXLE HOUSING & CASE)
30J00PLUG, DRAIN(FCEV)
30J00APLUG, FILLER(FCEV)
30J00BGASKET, DRAIN PLUG(FCEV)
30J00CGASKET, FILLER PLUG(FCEV)
35300PUMP ASSY, OIL W/MOTOR
35300EBOLT(FOR TRANSMISSION OIL PUMP)
35300FO RING(FOR TRANSMISSION OIL PUMP)
35308DCOVER SUB-ASSY, TRANSMISSION OIL PUMP
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35308JBOLT(FOR TRANSMISSION OIL PUMP COVER)
35351BROTOR, TRANSAXLE OIL PUMP DRIVE
35352AROTOR, TRANSMISSION OIL PUMP DRIVEN
35563SEAL, SHIFT CONTROL ACTUATOR
35580ACTUATOR ASSY, SHIFT CONTROL
3914
4102
9030106196
main90301-06196
9034108001
main90341-08001
9155180822
main91551-80822
9155180840
main91551-80840
9167180618
main91671-80618
35 parts on this diagram · 2 diagrams in section
