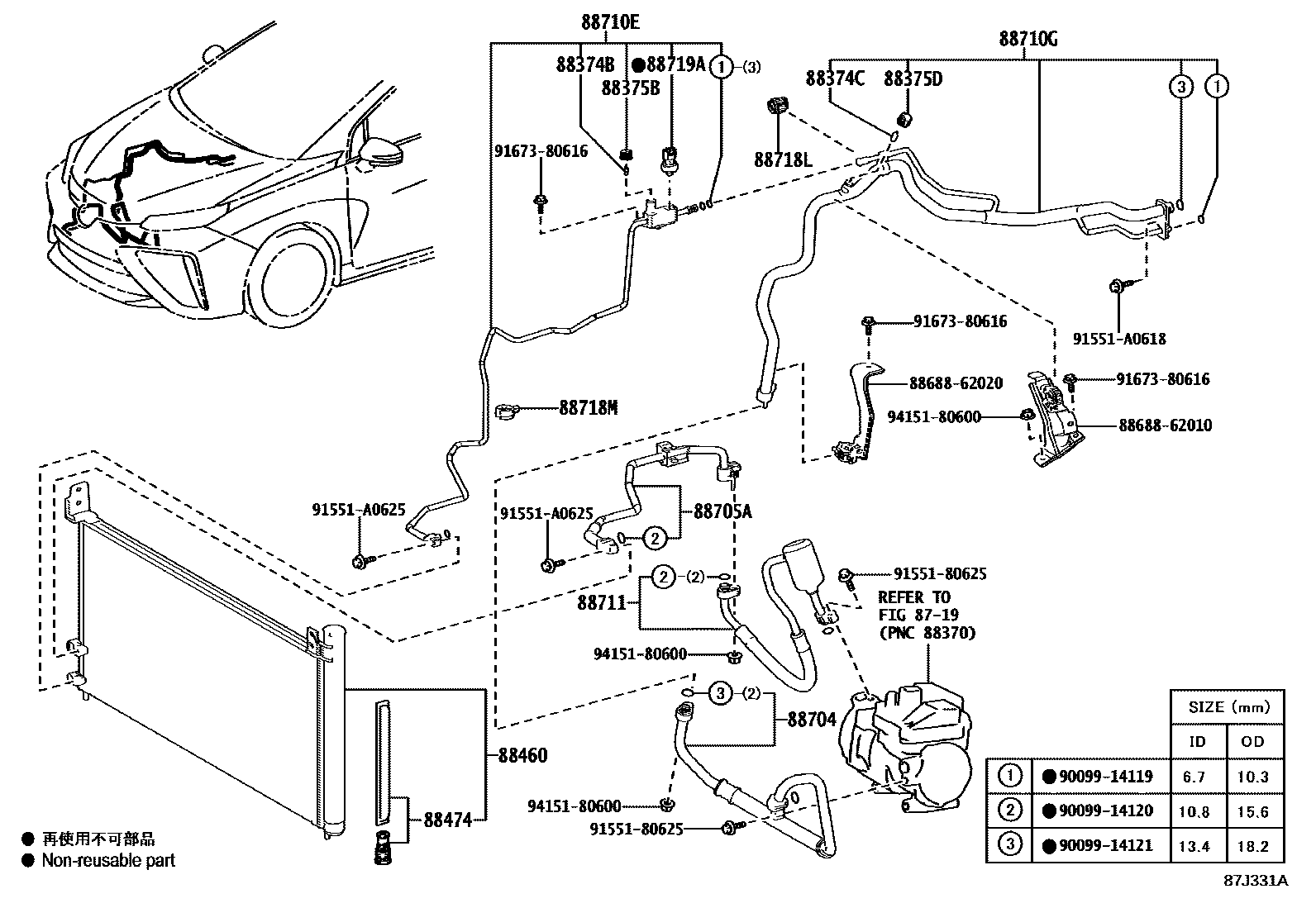

HEATING & AIR CONDITIONING - COOLER PIPING
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88704HOSE SUB-ASSY, SUCTION
88705ATUBE SUB-ASSY, DISCHARGE
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88718LCLAMP, PIPING
88718MCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
8868862010BRACKET, COOLER DIAPHRAGM
main88688-62010
8868862020BRACKET, COOLER DIAPHRAGM
main88688-62020
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9155180625
main91551-80625
91551A0618
main91551-A0618
91551A0625
main91551-A0625
9167380616
main91673-80616
9415180600
main94151-80600
25 parts on this diagram · 1 diagram in section
