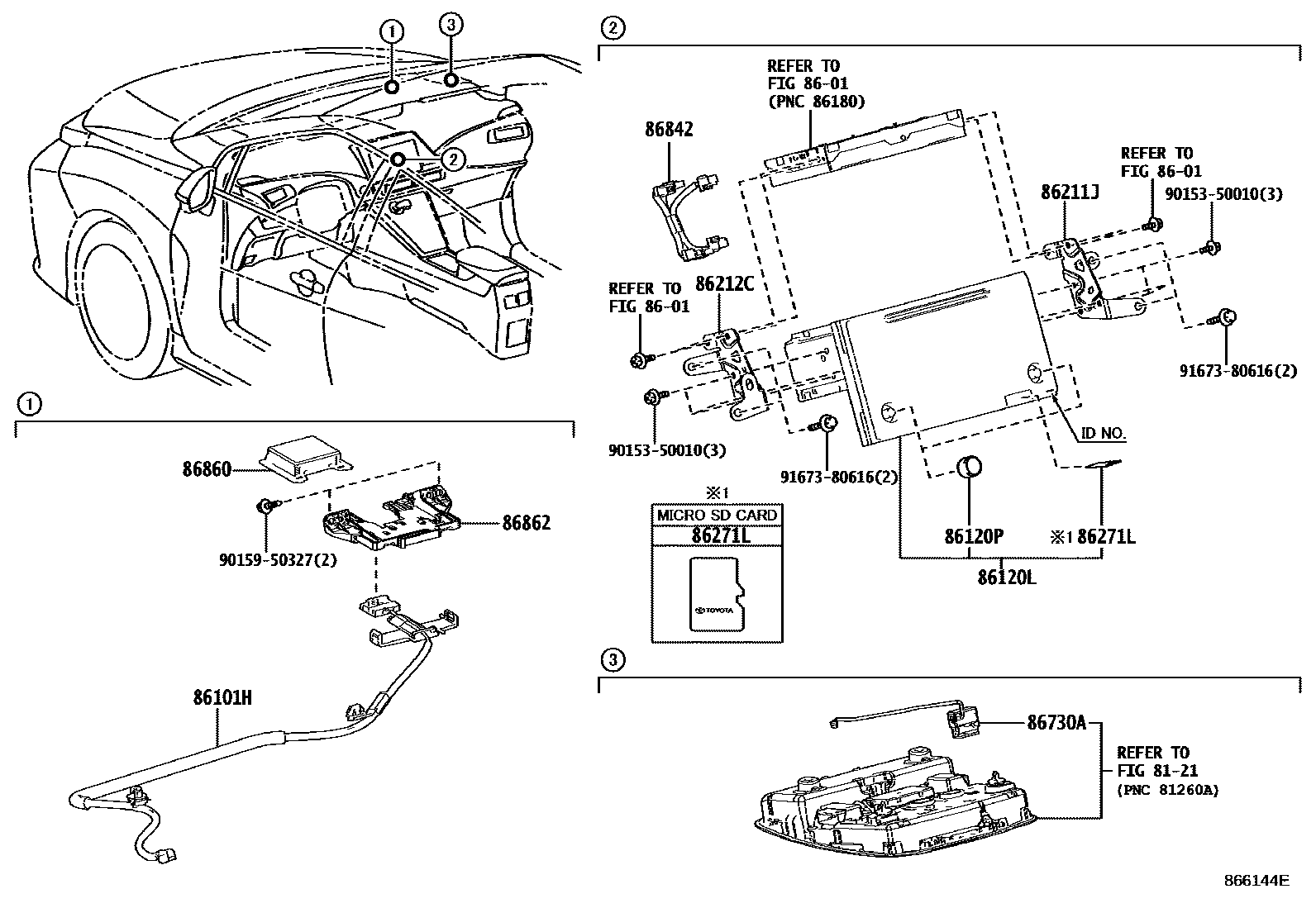

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8121

8601

86101HCORD SUB-ASSY, ANTENNA

main86101-62060iJPD10201506-201801

86120LRECEIVER ASSY, NAVIGATION

main86804-62010iJPD10201506-201801

PANASONIC,ID=510068

86120PKNOB, NAVIGATION RECEIVER SWITCH

main90010-24177iJPD10201506-201801

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-62010iJPD10201506-201801

main86211-62030iJPD10201801-202005

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-62010iJPD10201506-201801

main86212-62030iJPD10201801-202005

86271LHARD DISC

main86271-35012iJPD10201506-201507

MICRO SD CARD

sub86271-35013

main86271-35013iJPD10201507-201608

MICRO SD CARD

sub86271-35014

main86271-35014iJPD10201608-201707

MICRO SD CARD

sub86271-35015

main86271-35015iJPD10201708-201801

MICRO SD CARD

86730AMICROPHONE ASSY, TELEPHONE

main86730-30180iJPD10201506-202005

86842WIRE, NAVIGATION, NO.1

main86842-33150iJPD10201801-202005

HAWAII SPEC

main86842-62010iJPD10201506-201801

HAWAII SPEC

86860ANTENNA ASSY, NAVIGATION

main86860-78010iJPD10201506-201801

main86880-47090iJPD10201801-202005

86862BRACKET, NAVIGATION ANTENNA

main86862-62010iJPD10201506-202005

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

15 parts on this diagram · 2 diagrams in section
