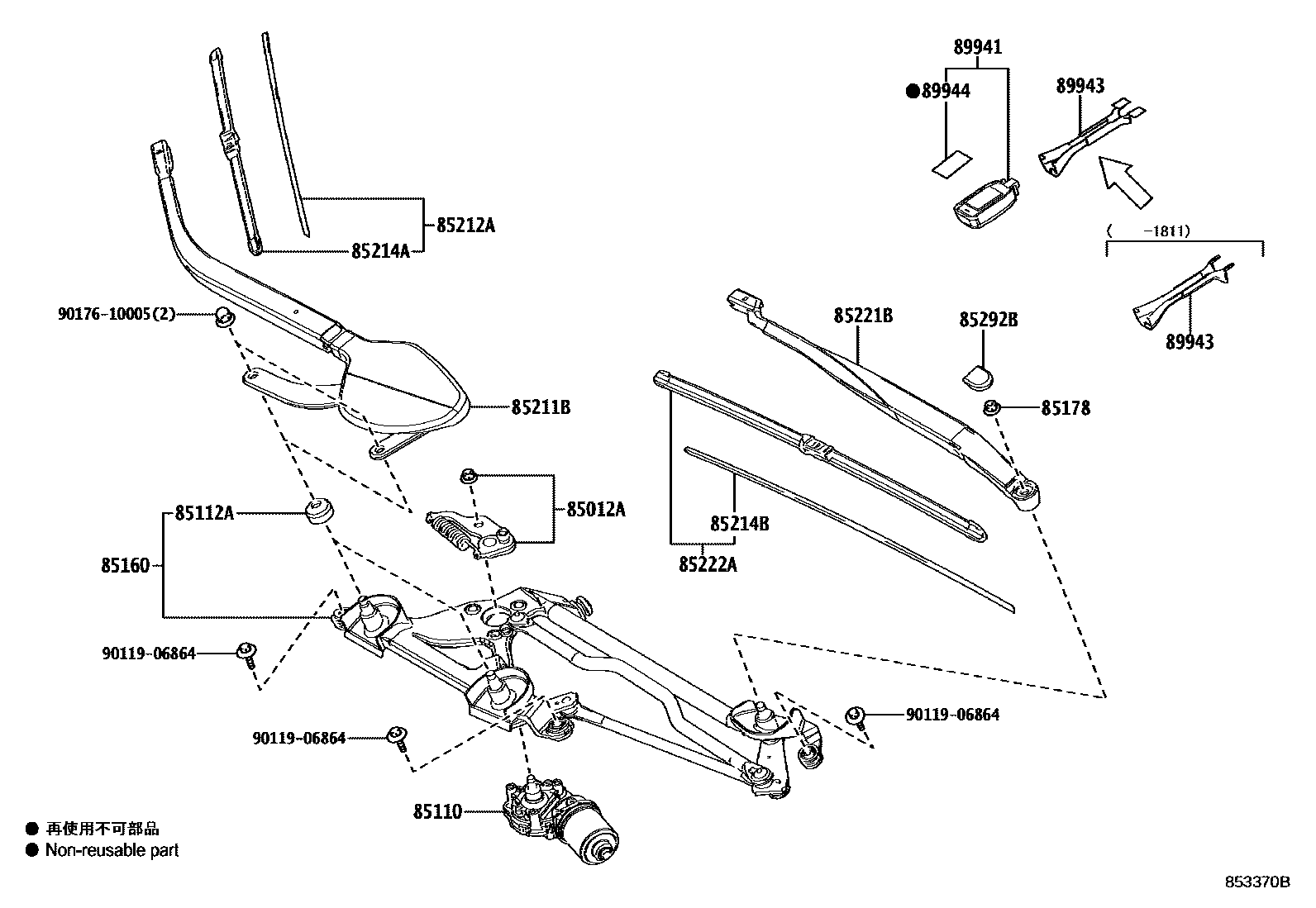

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iJPD10201506-202005

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28250iJPD10201506-202005

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-47010iJPD10201506-202005

85160LINK ASSY, WINDSHIELD WIPER

main85150-62050iJPD10201506-202005

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iJPD10201506-202005

85211BARM, FRONT WIPER, RH

main85211-62030iJPD10201506-202005

85212ABLADE, FR WIPER, RH

main85212-62020iJPD10201506-201603

sub85212-62021

main85212-62021iJPD10201604-202005

85214ARUBBER, WIPER, RH

main85214-62030iJPD10201506-202005

85214BRUBBER, WIPER, LH

main85214-78020iJPD10201506-202005

85221BARM, FRONT WIPER, LH

main85221-62030iJPD10201506-202005

85222ABLADE, FR WIPER, LH

main85222-62040iJPD10201506-201603

sub85222-62041

main85222-62041iJPD10201604-202005

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iJPD10201506-202005

89941SENSOR, RAIN

main89941-52010iJPD10201506-202005

89943COVER, RAIN SENSOR

main89943-47030iJPD10201811-202005

main89943-53010iJPD10201506-201811

89944TAPE, RAIN SENSOR

main89944-42010iJPD10201506-202005

9011906864

main90119-06864

9017610005

main90176-10005

17 parts on this diagram · 1 diagram in section
