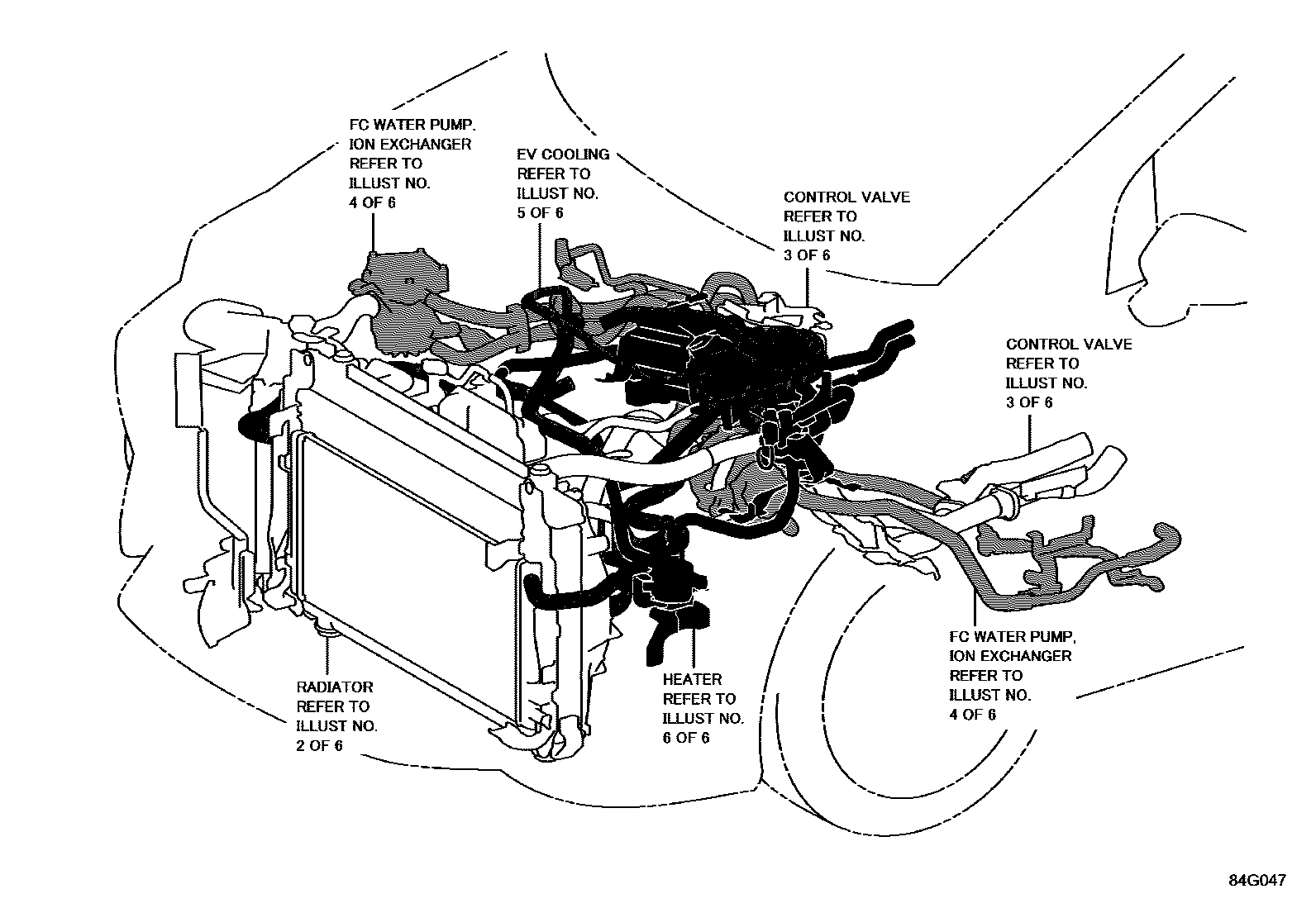

FCEV COOLING
0416AELEMENT KIT, ION EXCHANGER
16035AJOINT SUB-ASSY, WATER HOSE
16361GFAN
16361HFAN, NO.2
16363EMOTOR, COOLING FAN W/CONTROLLER
16400XRADIATOR ASSY, FC
16405CAP SUB-ASSY, RESERVE TANK
16417ECOCK, RADIATOR DRAIN
16505DSUPPORT SUB-ASSY, RADIATOR
16506DSUPPORT SUB-ASSY, RADIATOR, NO.2
16510GSUB-RADIATOR ASSY
16523FCUSHION, RADIATOR SUPPORT
16535BSUPPORT, RADIATOR, LOWER
16561BSEAL, RADIATOR TO SUPPORT, NO.1
16582BBRACKET, RADIATOR, NO.1
16583BBRACKET, RADIATOR, NO.2
16590PLATE ASSY, COOLANT W/LABEL
16595CLABEL, RADIATOR CAP CAUTION
165A1HOSE, INTERCOOLER COOLING WATER INLET
165A5GUIDE, SUB-RADIATOR AIR
165B1HOSE, INTERCOOLER COOLING WATER OUTLET
16711CSHROUD, FAN
16716ACUSHION, FAN SHROUD
16A10PUMP ASSY, FC COOLING WATER
16A10ABOLT, STUD(FOR FC COOLING WATER PUMP)
16A1ABRACKET, FC COOLING WATER PUMP CABLE, NO.1
16A1BBRACKET, FC COOLING WATER PUMP CABLE, NO.2
16A20HOSE ASSY, FC WATER PUMP DRAIN
16A23BRACKET, FC WATER PUMP DRAIN HOSE
16A31VALVE, FC COOLING WATER TEMPERATURE CONTROL
16A33BRACKET, FC COOLING WATER VALVE
16A40EXCHANGER ASSY, FC COOLING WATER ION
sub16A40-77021
16A45BRACKET, FC COOLING WATER ION EXCHANGER
16B11HOSE, FC COOLING WATER VALVE OUTLET, NO.1
16B13HOSE, FC STACK COOLING WATER INLET
16B16PIPE, FC STACK COOLING WATER INLET
16B31HOSE, FC STACK COOLING WATER OUTLET
16B36PIPE, FC STACK COOLING WATER OUTLET
16B51HOSE, FC COOLING BY-PASS, NO.1
16B52HOSE, FC COOLING BY-PASS, NO.2
16B61PIPE, FC COOLING BY-PASS
16B71HOSE, FC RADIATOR INLET
16B77HOSE, FC RADIATOR OUTLET, NO.1
16B78HOSE, FC RADIATOR OUTLET, NO.2
16B79BRACKET, FC RADIATOR OUTLET
16B81PIPE, FC RADIATOR INLET
16B88PIPE, FC RADIATOR
16B91HOSE, FC SUB-RADIATOR INLET
16B97HOSE, FC SUB-RADIATOR OUTLET
16BB1HOSE, FC COOLING ION EXCHANGER INLET
16BB7HOSE, FC COOLING ION EXCHANGER OUTLET
16BD1HOSE, FC COOLING WATER PUMP OUTLET, NO.1
16BD2HOSE, FC COOLING WATER PUMP OUTLET, NO.2
16BD6PIPE, FC COOLING WATER PUMP OUTLET
16BD9CONNECTOR, FC WATER HOSE
NO.1
16BE1HOSE, FC COOLING WATER VALVE INLET, NO.1
16BE6PIPE, FC COOLING WATER VALVE INLET
16BE9BRACKET, FC STACK COOLING WATER OUTLET
16BF1HOSE, FC COOLING WATER PUMP INLET
16BF6PIPE, FC COOLING WATER PUMP INLET
16BF9BRACKET, FC COOLING WATER PUMP INLET
7403
82284EWIRE, EARTH
8401
8431
8447
8448
87101JHEATER SUB-ASSY, ELECTRIC
87121MBRACKET, HEATER, NO.1
87121NBRACKET, HEATER, NO.2
8714
8716
87200FVALVE, 3 WAY
87208NPIPE SUB-ASSY, WATER
87209FHOSE SUB-ASSY, WATER, NO.1
87209HHOSE SUB-ASSY, WATER, NO.2
87245VHOSE, WATER
88718PCLAMP, PIPING
G9010ERADIATOR ASSY
G9040BPUMP ASSY, HEATER WATER W/MOTOR
G9040CPUMP ASSY, EV WATER W/MOTOR
G9141DBRACKET, EV WATER PUMP
G91A1APIPE, INVERTER COOLING INLET
G91B1PIPE, INVERTER COOLING OUTLET
G91H0CTANK ASSY, INVERTER RESERVE
G9225MHOSE, INVERTER COOLING, NO.1
G9226BHOSE, INVERTER COOLING, NO.2
G922ACHOSE, INVERTER COOLING INLET, NO.1
G922BBHOSE, INVERTER COOLING INLET, NO.2
G922CBHOSE, INVERTER COOLING OUTLET, NO.1
G922DAHOSE, INVERTER COOLING OUTLET, NO.2
G922KCCONNECTOR, EV WATER HOSE
G922KDCONNECTOR, EV WATER HOSE, NO.2
G9237DHOSE, INVERTER DRAIN, NO.1
G923EAHOSE, INVERTER DRAIN, NO.2
G938AHOSE, EV RADIATOR INLET, NO.1
G938BHOSE, EV RADIATOR INLET, NO.2
G938CHOSE, EV RADIATOR OUTLET
G9391AHOSE, EV WATER PUMP, NO.1
G9392AHOSE, EV WATER PUMP, NO.2
G939AHOSE, EV WATER PUMP INLET
G939BPIPE, EV WATER PUMP OUTLET
G93A1PIPE, EV RADIATOR INLET
G93A2PIPE, EV RADIATOR OUTLET
G93A9BRACKET, EV RADIATOR COOLING PIPE
G9AA1PIPE, FC CONVERTER COOLING WATER INLET
G9AB1HOSE, FC CONVERTER COOLING WATER OUTLET
G9AB2HOSE, FC CONVERTER COOLING WATER INLET
1649221050RING, O(FOR RADIATOR RESERVE TANK COCK)
main16492-21050
16BE277010HOSE, FC COOLING WATER VALVE INLET, NO.2
main16BE2-77010
8871858110PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-58110
9009904119
main90099-04119
9009904625
main90099-04625
9009912405
main90099-12405
9011906900
main90119-06900
9011906915
main90119-06915
9011906951
main90119-06951
9011906995
main90119-06995
9011908C30
main90119-08C30
9017808006
main90178-08006
9017906274
main90179-06274
9017908025
main90179-08025
9020106045
main90201-06045
9030199207
main90301-99207
9041317004
main90413-17004
9046400763
main90464-00763
9046621004
main90466-21004
9046626002
main90466-26002
9046626004
main90466-26004
9046707214
main90467-07214
9046713020
main90467-13020
9046715022
main90467-15022
9046916002
main90469-16002
9155180630
main91551-80630
91551A0616
main91551-A0616
91621J0614
main91621-J0614
9167180612
main91671-80612
9167180616
main91671-80616
91671A0612
main91671-A0612
91671A0616
main91671-A0616
91671A0620
main91671-A0620
9167380614
main91673-80614
9167380616
main91673-80616
9167380630
main91673-80630
9167380820
main91673-80820
9167380825
main91673-80825
91673A0616
main91673-A0616
91673A0620
main91673-A0620
91673A0816
main91673-A0816
91673A0820
main91673-A0820
9415180600
main94151-80600
9415180640
main94151-80640
9613251100
main96132-51100
9613642501
main96136-42501
9613643901
main96136-43901
9613644301
main96136-44301
9613751501
main96137-51501
160 parts on this diagram · 6 diagrams in section
