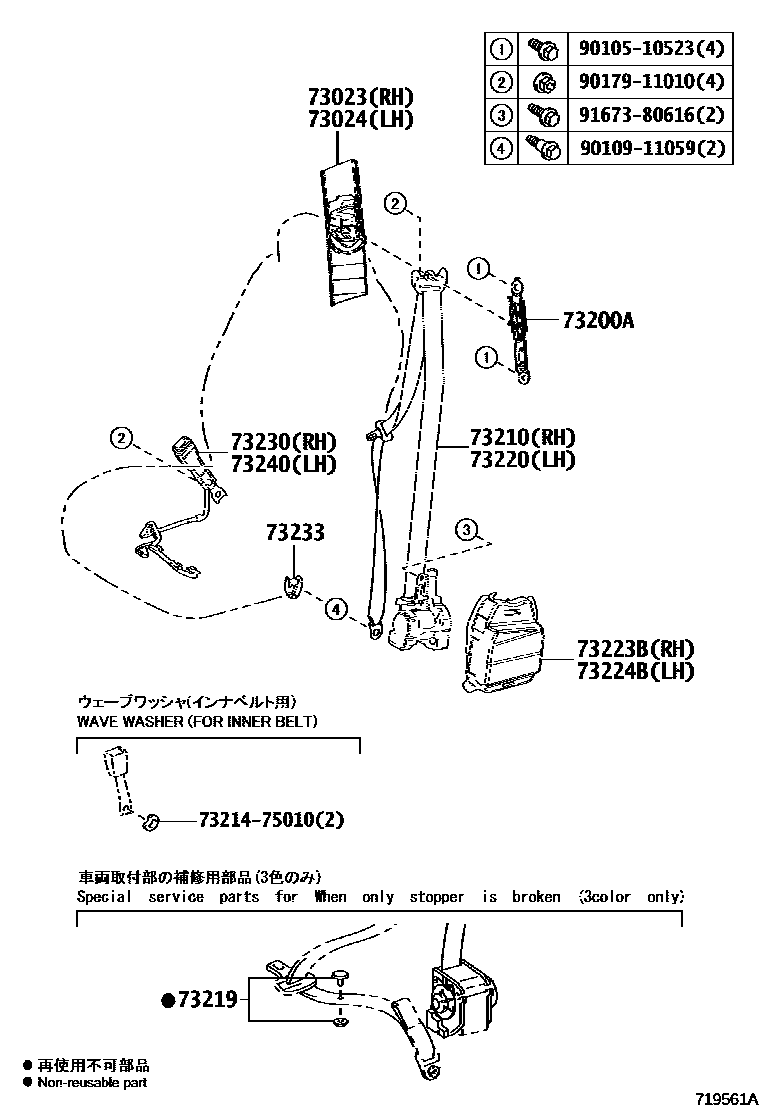

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
WARM WHITE,TRIM0#
BLUE BLACK,TRIM8#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
WARM WHITE,TRIM0#
BLUE BLACK,TRIM8#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
WARM WHITE,TRIM00
BLACK,TRIM01,8#
73233COVER, LAP BELT OUTER ANCHOR
73240BELT ASSY, FRONT SEAT INNER, LH
WARM WHITE,TRIM00
BLACK,TRIM01,8#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010911059
main90109-11059
9017911010
main90179-11010
9167380616
main91673-80616
17 parts on this diagram · 3 diagrams in section
