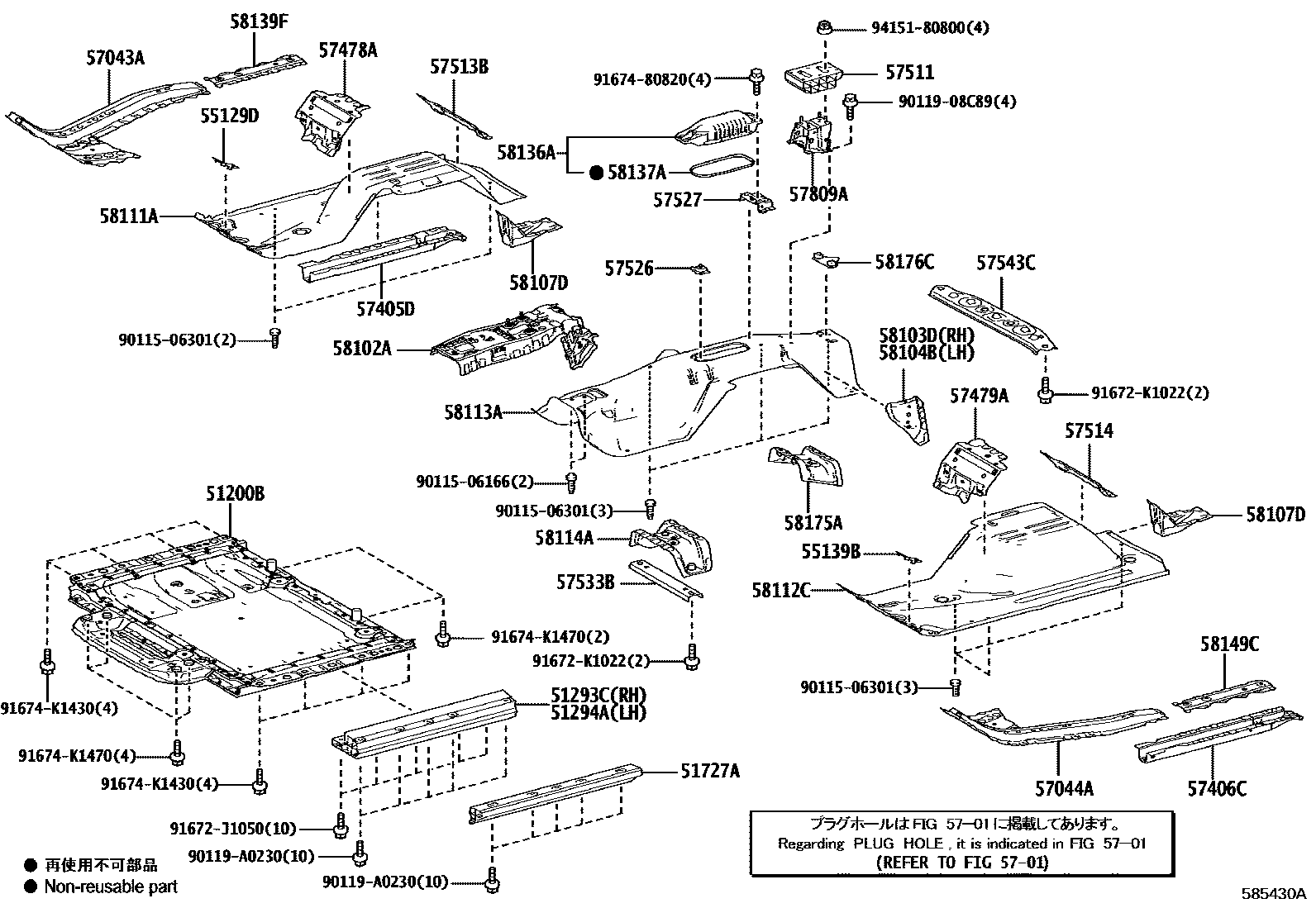

FLOOR PAN & LOWER BACK PANEL
51200BFRAME ASSY, REAR
51293CEXTENSION, FRAME REAR CROSSMEMBER, RH
51294AEXTENSION, FRAME REAR CROSSMEMBER, LH
51727AREINFORCEMENT, BODY SUPPORT BRACKET, REAR RH
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH
57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH
57478AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH
57479AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH
57511REINFORCEMENT, FRONT FLOOR, CENTER
57513BREINFORCEMENT, FRONT FLOOR, RH
57514REINFORCEMENT, FRONT FLOOR SIDE, LH
57526PLATE, CENTER FLOOR, NO.2
57527PLATE, CENTER FLOOR, NO.2
57533BBRACE, FRONT FLOOR, CENTER
57543CBRACE, CENTER FLOOR, NO.1
57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58103DBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE RH
58104BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH
58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58136ACOVER, FRONT FLOOR SERVICE HOLE
58137ASEAL, FRONT FLOOR HOLE
58139FPLATE, FRONT FLOOR SIDE, REAR RH
58149CPLATE, FRONT FLOOR SIDE, REAR LH
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
9011506166
9011506301
9011908C89
90119A0230
91672J1050
91672K1022
9167480820
91674K1430
91674K1470
9415180800
45 parts on this diagram · 5 diagrams in section
