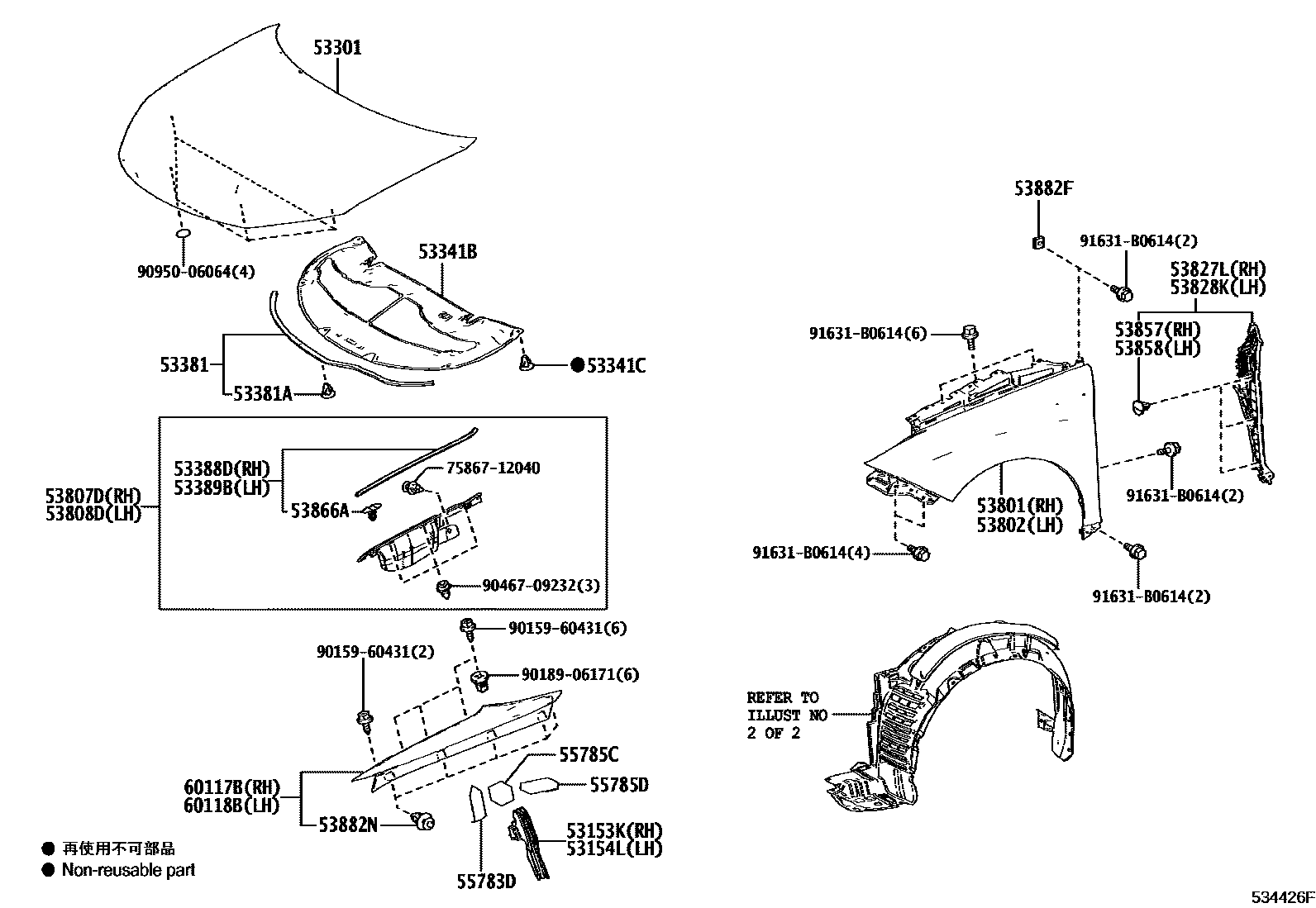

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)
53882FSEAL, FRONT FENDER
53882NCLIP(FOR FRONT FENDER SEAL)
55783DPAD, COWL TOP SILENCER
55785CPAD, FRONT PANEL COVER
55785DPAD, COWL TOP SILENCER, NO.2
60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH
SUPER WHITE 2,2MQ
WHITE PEARL CS.,2NL
PRECIOUS SILVER,2MR
PRECIOUS BLACK,2MS
DK. RED M.M.,2NM
DK.BLUE MC.,2MT
PURE BLUE ME.,2NV
60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH
SUPER WHITE 2,2MQ
WHITE PEARL CS.,2NL
PRECIOUS SILVER,2MR
PRECIOUS BLACK,2MS
DK. RED M.M.,2NM
DK.BLUE MC.,2MT
PURE BLUE ME.,2NV
7586712040MOULDING, FRONT PANEL
main75867-12040
9015960431
main90159-60431
9018906171
main90189-06171
9046709232
main90467-09232
9095006064
main90950-06064
91631B0614
main91631-B0614
31 parts on this diagram · 2 diagrams in section
