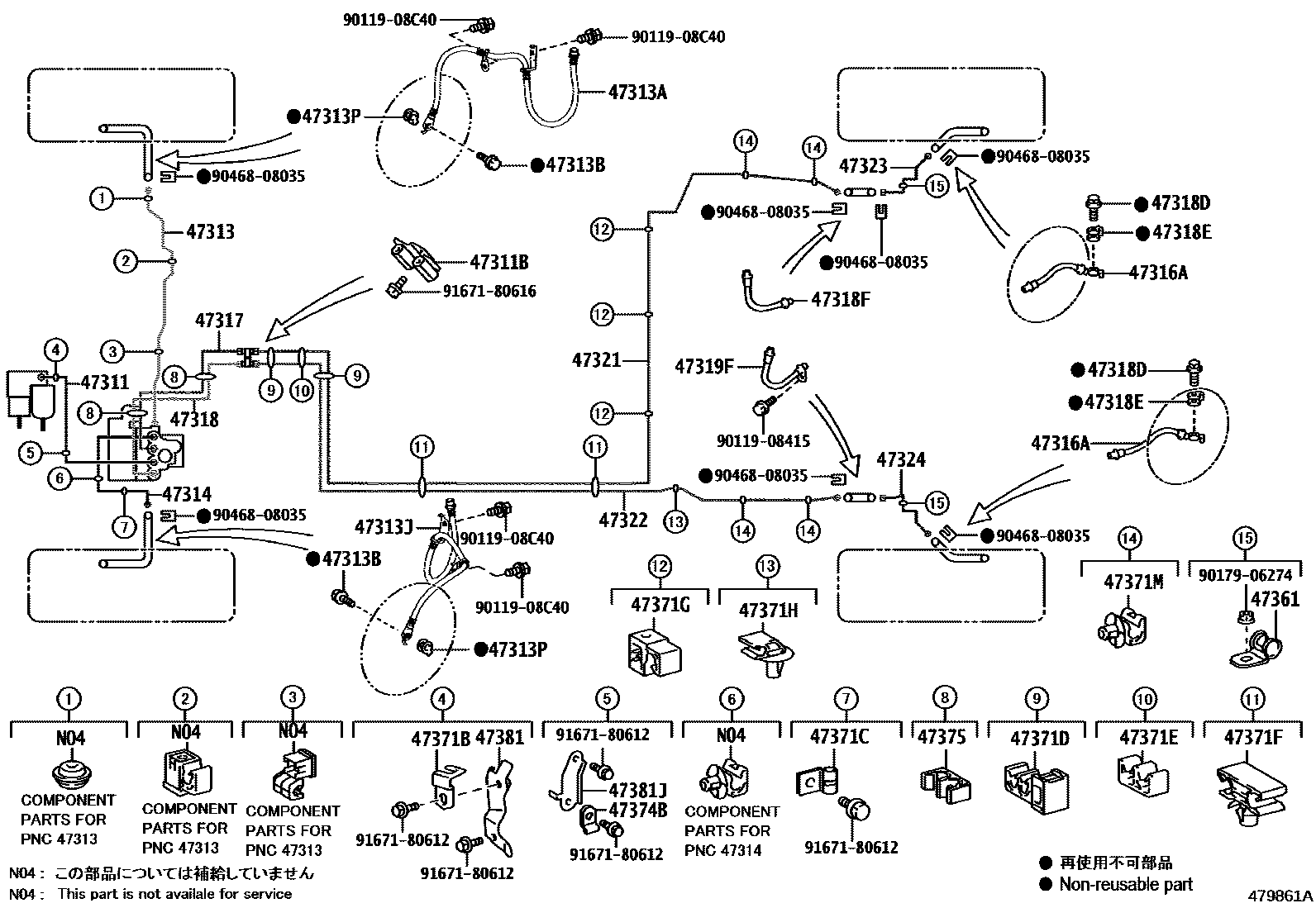

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47361CLAMP, TUBE
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47371FCLAMP, BRAKE TUBE, NO.10
47371GCLAMP, BRAKE TUBE, NO.11
47371HCLAMP, BRAKE TUBE, NO.12
47371MCLAMP, BRAKE TUBE, NO.13
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47381BRACKET, BRAKE TUBE CLAMP NO.1
47381JBRACKET, BRAKE TUBE CLAMP, NO.2
9011908415
main90119-08415
9011908C40
main90119-08C40
9017906274
main90179-06274
9046808035
main90468-08035
9167180612
main91671-80612
9167180616
main91671-80616
38 parts on this diagram · 2 diagrams in section
