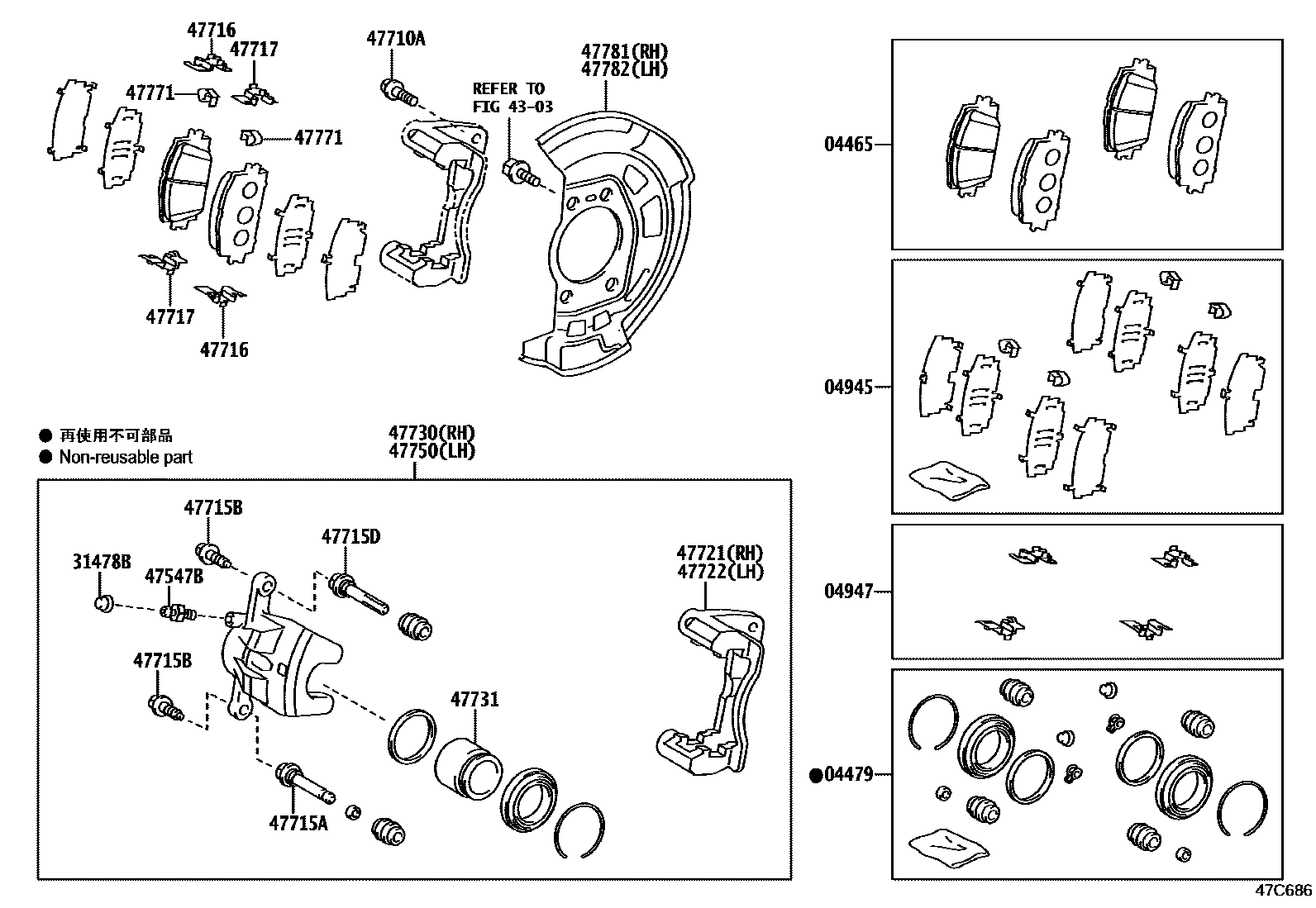

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42180iJPD10201506-202005

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33130iJPD10201506-202005

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42060iJPD10201506-202005

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iJPD10201506-202005

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iJPD10201506-202005

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iJPD10201506-202005

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iJPD10201506-202005

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iJPD10201506-202005

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iJPD10201506-202005

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iJPD10201506-202005

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52191iJPD10201506-202005

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52191iJPD10201506-202005

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42091iJPD10201506-202005

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42091iJPD10201506-202005

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42091iJPD10201506-202005

47731PISTON, FRONT DISC BRAKE

main47731-12A70iJPD10201506-202005

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42091iJPD10201506-202005

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iJPD10201506-202005

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iJPD10201506-202005

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iJPD10201506-202005

21 parts on this diagram · 1 diagram in section
