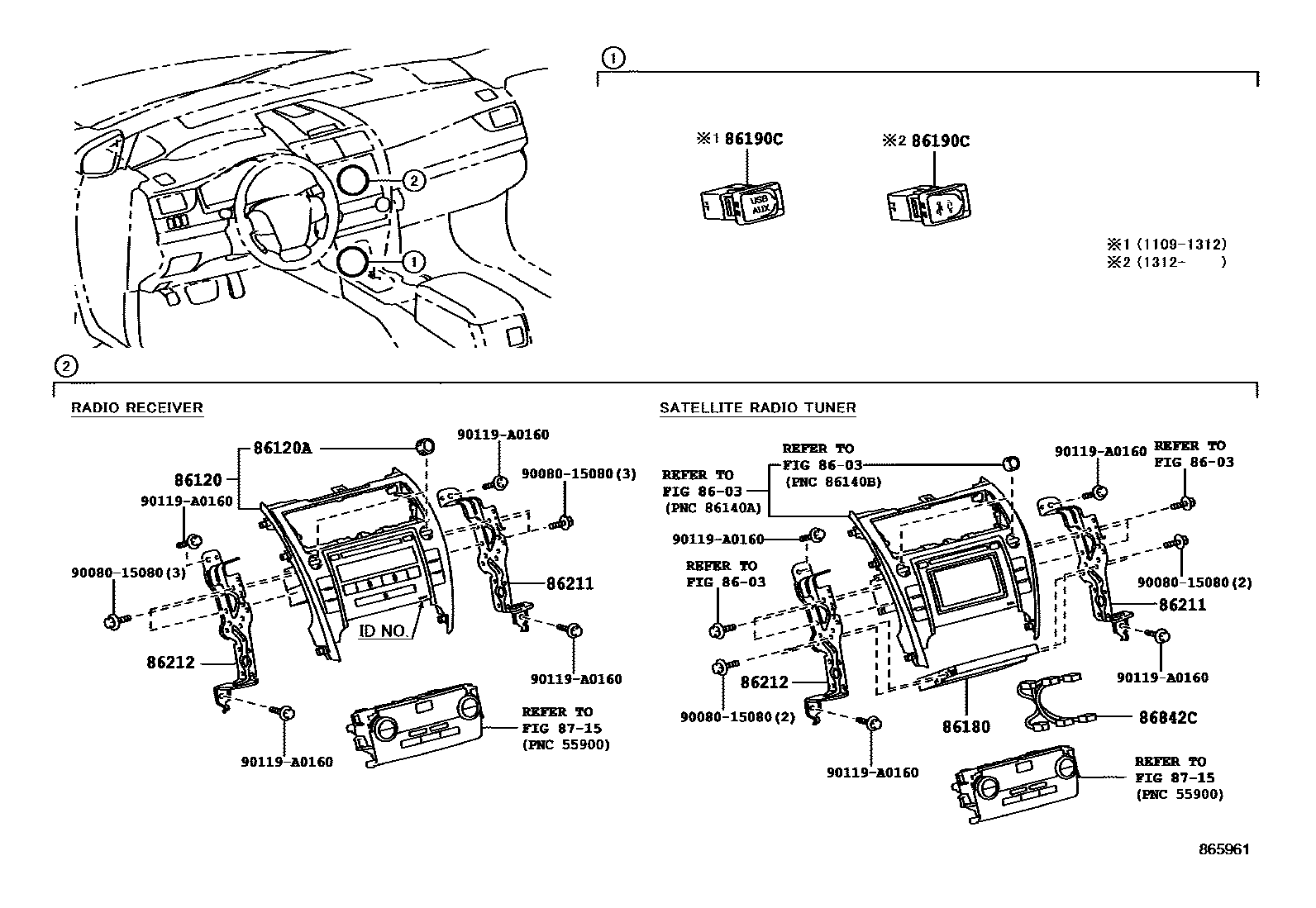

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86120-06340iASV50..N201109-201212

PIONEER,ID=P10069

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25195iASV50..N201109-201212

86180TUNER ASSY, STEREO COMPONENT

main86180-0E011

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-06030iASV50201109-201312

main86190-0R010iASV50¥8,700201312-201409

86211BRACKET, RADIO, NO.1

main86211-06090iASV50201109-201409

86212BRACKET, RADIO, NO.2

main86212-06090iASV50201109-201409

86842CWIRE, NAVIGATION

8715

9008015080

main90080-15080¥60

90119A0160

main90119-A0160

11 parts on this diagram · 3 diagrams in section
