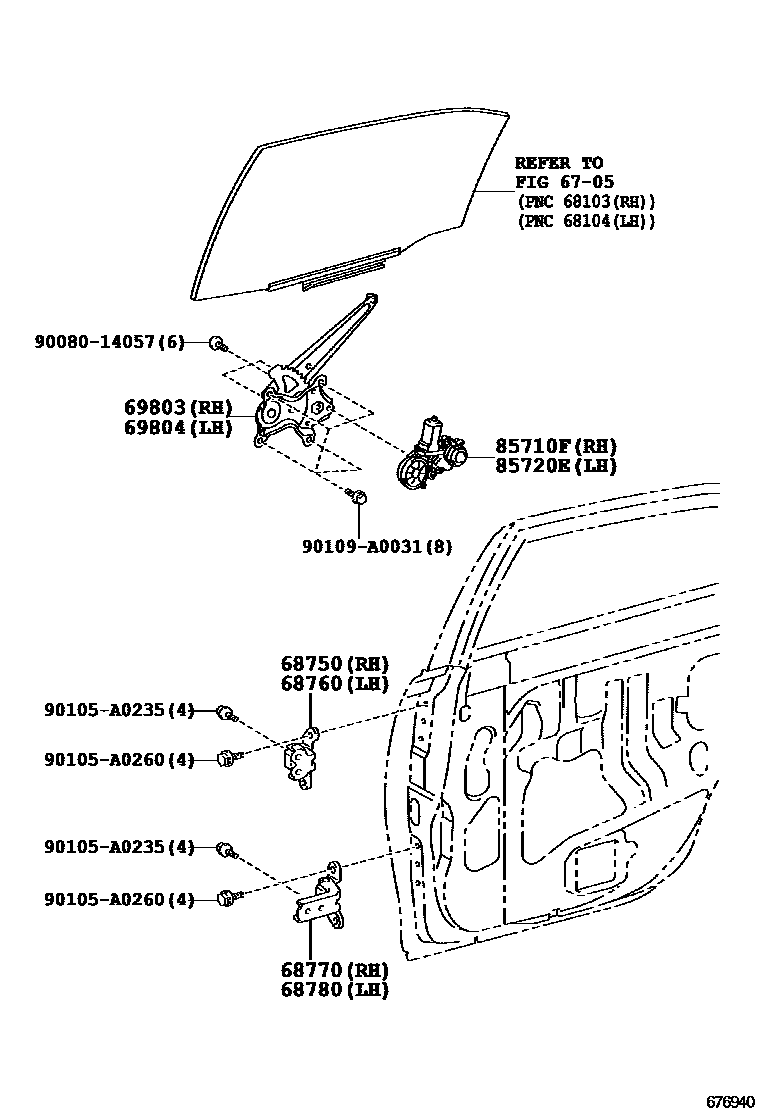

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-06010iASV50201109-201409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-06010iASV50201109-201409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02050iASV50201109-201409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02050iASV50201109-201409

sub68780-52030

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-06140iASV50201109-201409

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-06140iASV50201109-201409

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-AE010iASV50201109-201409

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-AE010iASV50201109-201409

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0260

main90105-A0260

90109A0031

main90109-A0031

13 parts on this diagram · 1 diagram in section
