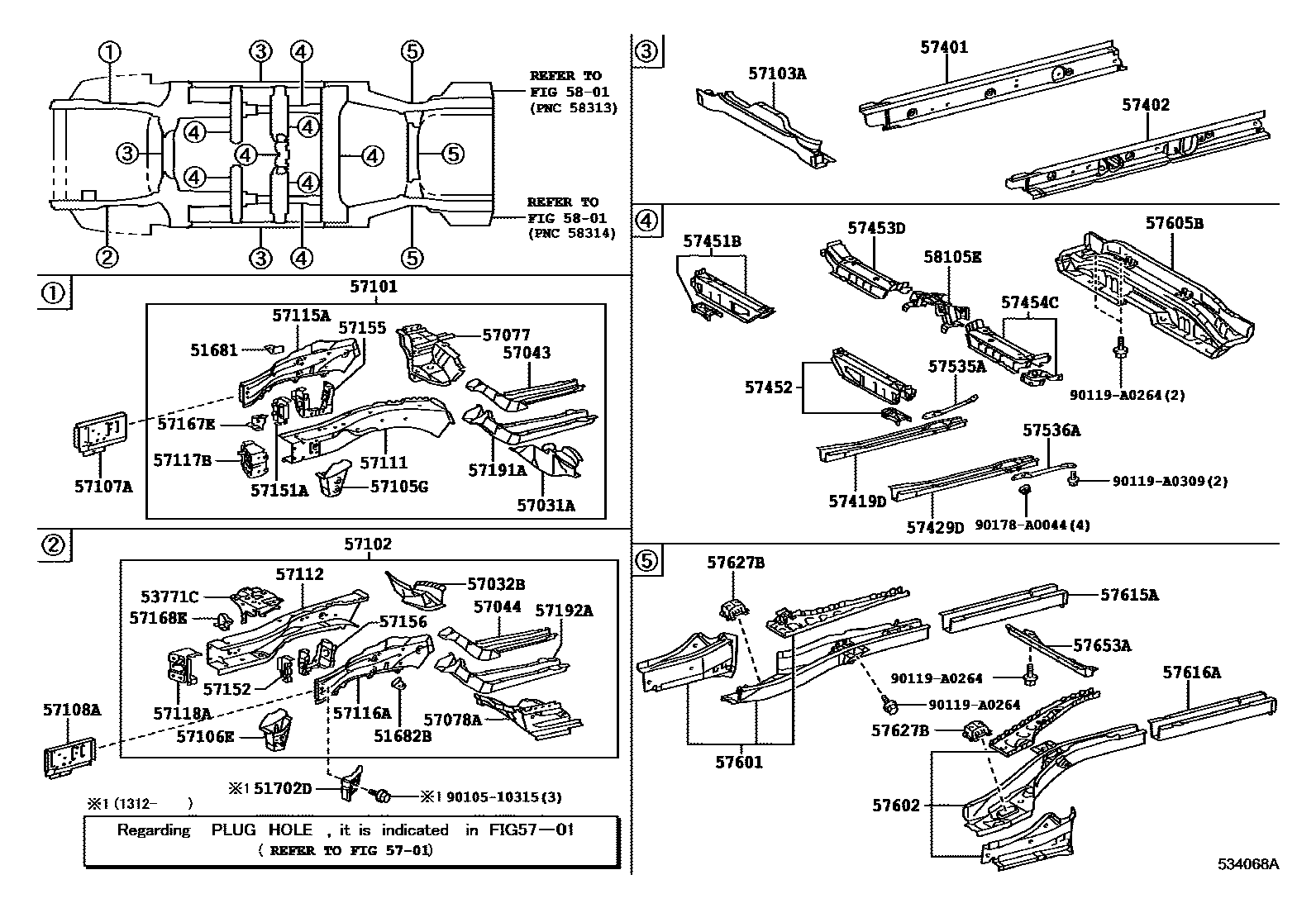

FLOOR SIDE MEMBER

0001 1 0002 1

51681BRACKET, FLEXIBLE HOSE

main51681-06020iASV50201109-201409

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-06020iASV50201109-201409

51702DBRACKET SUB-ASSY, BODY SUPPORT, LH

main51702-06010iASV50201312-201409

53771CSUPPORT, BATTERY CARRIER

main53771-06090iASV50201109-201409

5701

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-06010iASV50201109-201409

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-06010iASV50201109-201409

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06010iASV50201109-201409

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06010iASV50201109-201409

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-06040iASV50201109-201409

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-06040iASV50201109-201312

sub57078-06110

main57078-06110iASV50201312-201409

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06171iASV50201109-201606

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-06212iASV50201109-201312

main57102-06280iASV50201312-201606

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-06150iASV50201409-201606

main57103-07011iASV50201109-201409

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-06010iASV50201109-201409

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-06010iASV50201109-201409

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-06011iASV50201109-201606

sub57107-33031

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-06011iASV50201109-201606

57111MEMBER, FRONT SIDE, RH

main57111-06021iASV50201109-201409

57112MEMBER, FRONT SIDE, LH

main57112-06031iASV50201109-201409

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-06030iASV50201109-201409

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-06020iASV50201109-201312

main57116-06071iASV50201312-201409

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-06030iASV50201109-201409

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-06030iASV50201109-201409

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-06010iASV50201109-201409

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-06010iASV50201109-201409

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-06010iASV50201109-201409

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-06011iASV50201109-201409

57167EGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-06010iASV50201109-201409

57168EGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-06010iASV50201109-201409

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-06010iASV50201109-201409

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-06010iASV50201109-201409

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-06211iASV50201109-201606

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-06201iASV50201109-201312

main57402-06260iASV50201312-201606

57419DREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-06040iASV50201109-201409

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-06020iASV50201109-201409

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-07901iASV50201109-201606

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-07902iASV50201109-201606

57453DMEMBER, FRONT FLOOR CROSS SIDE, RH

main57453-06060iASV50201109-201409

57454CMEMBER, FRONT FLOOR CROSS SIDE, LH

main57454-06060iASV50201109-201409

57535ABRACE, FRONT FLOOR, RH

main57535-06030iASV50201109-201312

main65031-07010iASV50201312-201409

57536ABRACE, FRONT FLOOR, LH

main57536-06030iASV50201109-201312

main65032-07010iASV50201312-201409

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57611-06915iASV50201109-201409

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57612-06913iASV50201109-201409

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06160iASV50201109-201205

sub57605-06161

main57605-06161iASV50201206-201208

sub57605-07031

main57605-07031iASV50201209-201409

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06919iASV50201109-201409

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06924iASV50201109-201409

57627BCOVER, REAR FLOOR SIDE MEMBER

main57627-06010iASV50201109-201409

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-06080iASV50201109-201409

5801

58105EPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06010iASV50201109-201409

9010510315

main90105-10315

90119A0264

main90119-A0264

90119A0309

main90119-A0309

90178A0044

main90178-A0044

55 parts on this diagram · 2 diagrams in section
