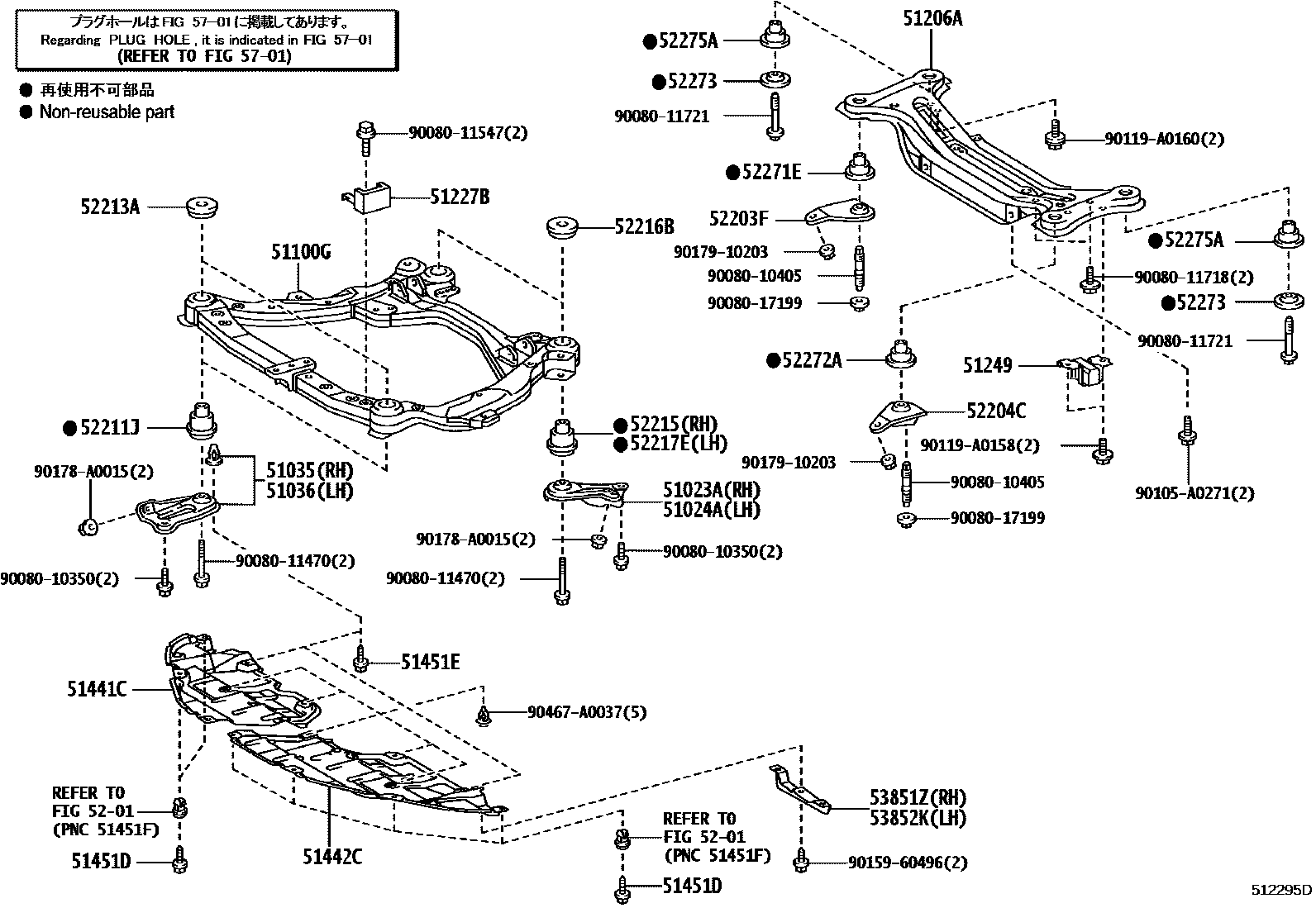

SUSPENSION CROSSMEMBER & UNDER COVER
51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51249DAMPER, REAR SUSPENSION MEMBER
51451DSCREW, NO.1
51451ESCREW, NO.2
5201
52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH
52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH
52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH
52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
53851ZPAD, FRONT WHEEL OPENING EXTENSION, RH
53852KPAD, FRONT WHEEL OPENING EXTENSION, LH
5701
9008010350
main90080-10350
9008010405
main90080-10405
9008011470
main90080-11470
9008011547
main90080-11547
9008011718
main90080-11718
9008011721
main90080-11721
9008017199
main90080-17199
90105A0271
main90105-A0271
90119A0158
main90119-A0158
90119A0160
main90119-A0160
9015960496
main90159-60496
90178A0015
main90178-A0015
9017910203
main90179-10203
90467A0037
main90467-A0037
41 parts on this diagram · 2 diagrams in section
