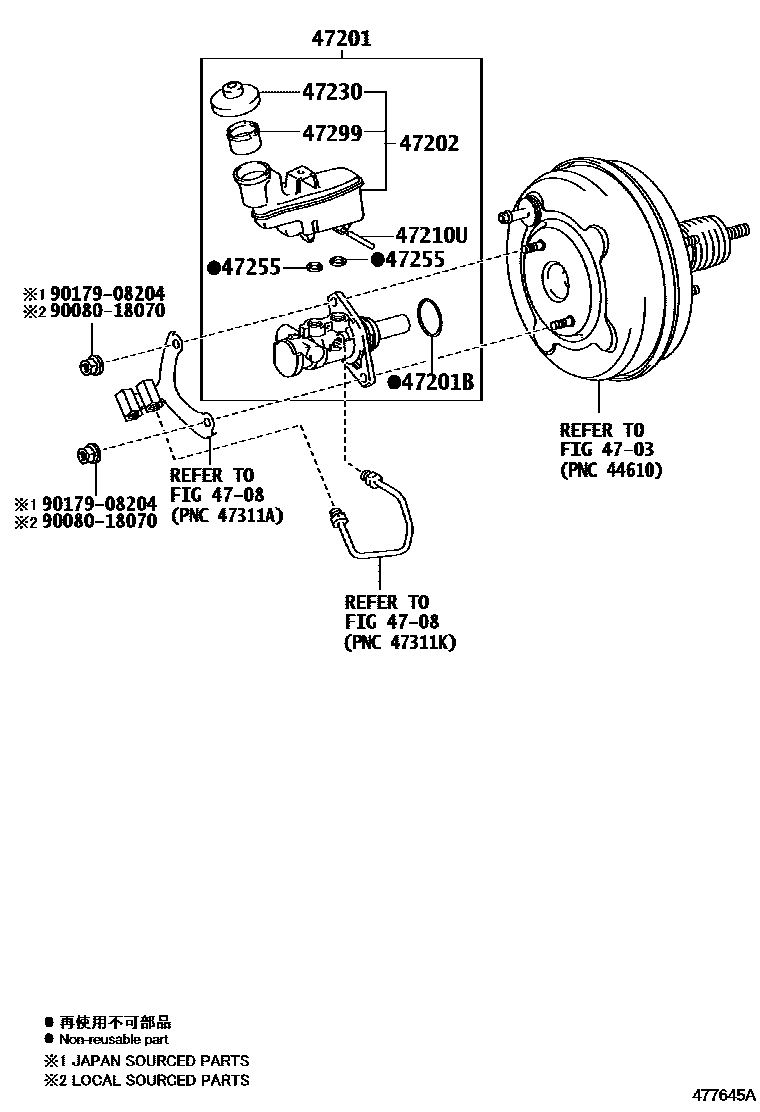

BRAKE MASTER CYLINDER

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06440iASV50201109-201205

sub47201-06441

main47201-06441iASV50201206-201207

sub47201-06443

main47201-06443iASV50201207-201409

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASV50201109-201409

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-06180iASV50201109-201409

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iASV50201109-201409

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iASV50201109-201412

sub47230-01031

main47230-01031iASV50201412

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iASV50201109-201409

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-06180iASV50201412

main47299-25010iASV50201109-201412

9008018070

main90080-18070

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
