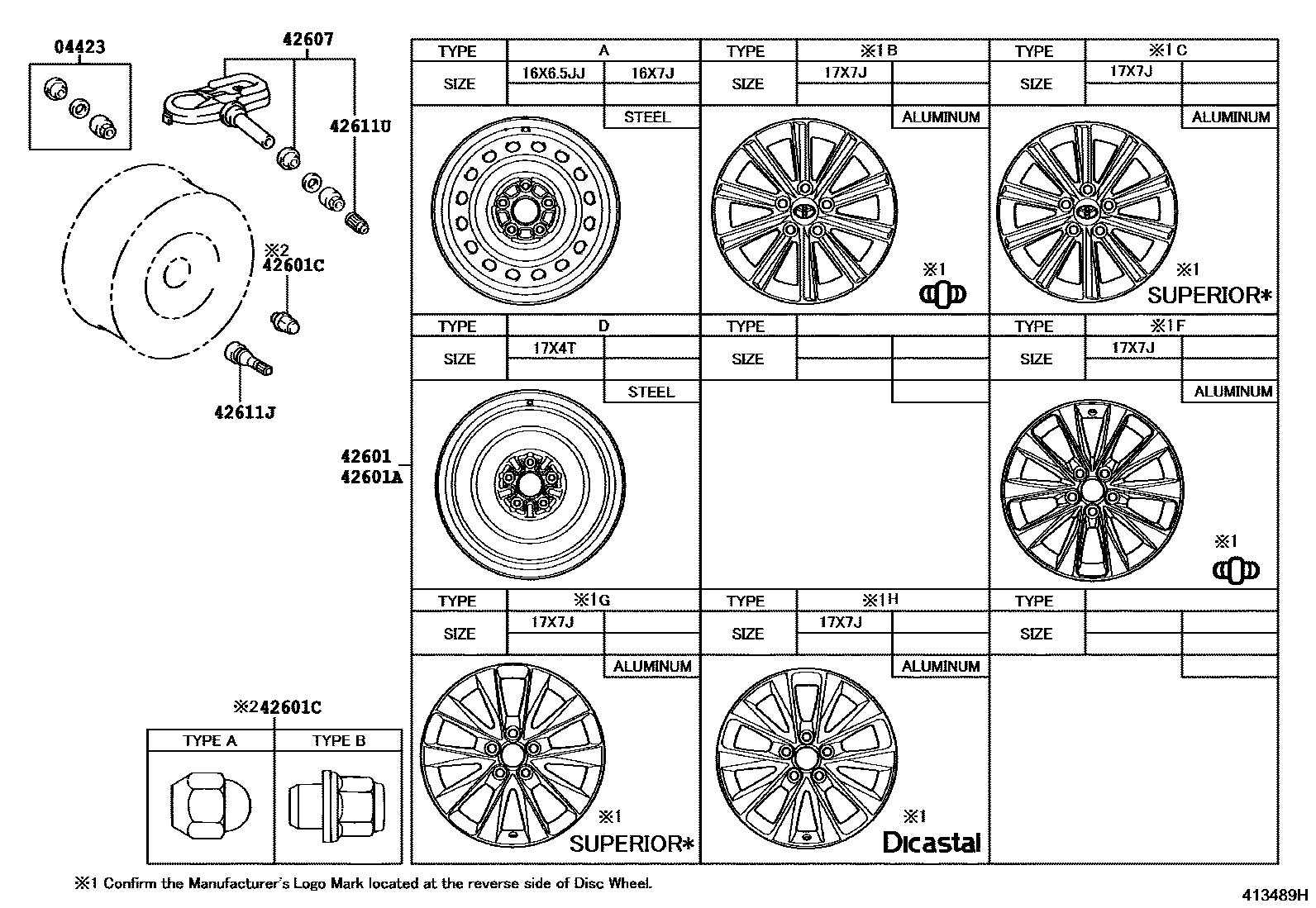

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
TIRE INFLATION PRESS WRNG-WITH(AUTO LOCATION)
42601WHEEL, DISC
16X6.5JJ,#,TYPE A:REFER ILLUST.
17X7J,#,TYPE B:REFER ILLUST.
17X7J,#,TYPE C:REFER ILLUST.
16X7J,#,TYPE A:REFER ILLUST.
17X7J,#,TYPE F:REFER ILLUST.
17X7J,#,TYPE G:REFER ILLUST.
17X7J,#,TYPE H:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE,TYPE B:REFER ILLUST.
sub90942-A1009
TYPE A:REFER ILLUST.
TIRE & DISC WHEEL-215/55R17 7J ALL SEASON TIRE,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TIRE INFLATION PRESS WRNG-WITH(AUTO LOCATION)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
7 parts on this diagram · 2 diagrams in section
