TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

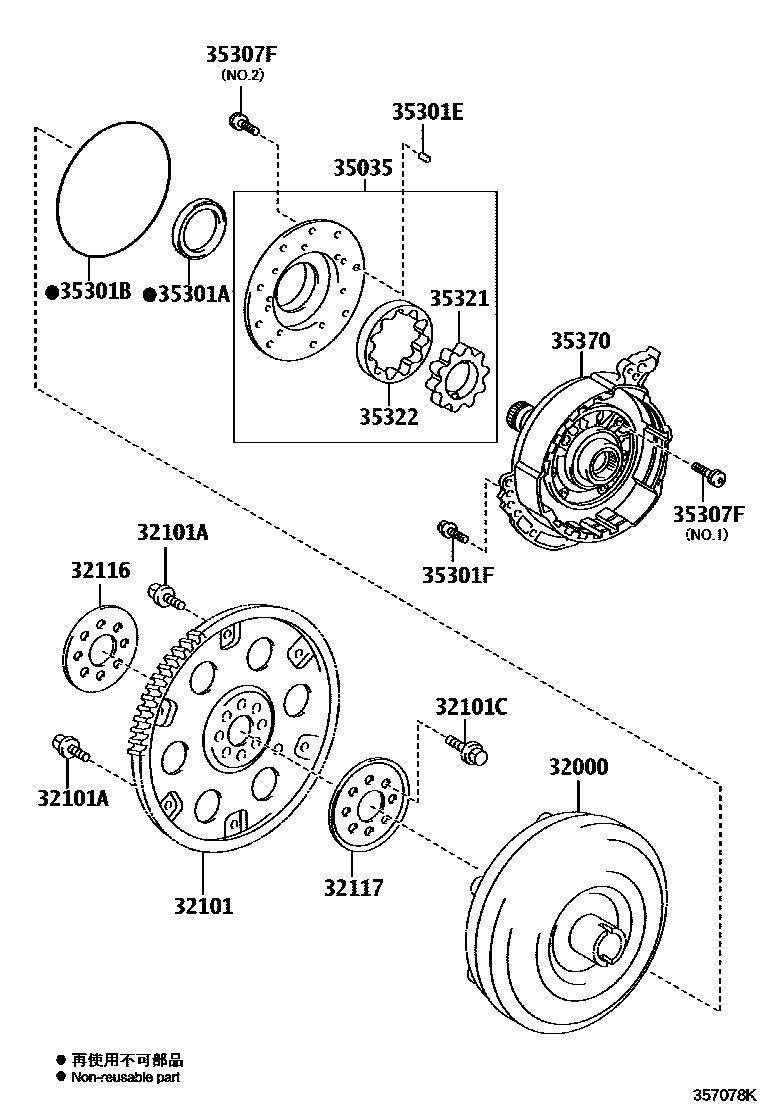

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-06040i201109-201209
sub32000-06050
main32000-06050i201209-201402
sub32000-06051
main32000-06051i201403-201409
sub32000-06052
main32000-06051i201409-201505
TRANSAXLE NO.=XXNXXX
sub32000-06052
main32000-06052i201506-201606
TRANSAXLE NO.=XXNXXX
sub32000-33143
main32000-33141i201109-201402
TRANSAXLE NO.=XXAXXX
sub32000-33142
main32000-33142i201403-201505
TRANSAXLE NO.=XXAXXX
sub32000-33143
main32000-33143i201506-201606
TRANSAXLE NO.=XXAXXX
main32000-73011i201109-201110
TRANSAXLE NO.=XXTXXX
sub32000-73012
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-06050i201109-201409
(L)
main32101-73010i201109-201409
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i201109-201409
*9-1.25PX12.4-7.3,BLACK
main90119-09025i201109-201409
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-12384i201109-201409
*12-1.25PX21-15
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i201109-201409
32117SPACER, DRIVE PLATE, REAR
main32117-20060i201109-201409
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-06020i201111-201311
AXLE NO.=XXNXXX,(L)
sub35035-33042
main35035-06021i201311-201409
AXLE NO.=XXNXXX,(L)
sub35035-33043
main35035-06021i201409
(L)
sub35035-33043
main35035-33042i201201-201312
AXLE NO.=XXNXXX,(J)
main35035-33042i201109-201312
TRANSAXLE NO.=XXAXXX
main35035-33043i201312-201409
AXLE NO.=XXNXXX,(J),AXLE NO.=XXAXXX,(J)
main35035-33043i201409
(J)
main35035-73012i201109-201110
TRANSAXLE NO.=XXTXXX
sub35035-33042
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90311-43010i201109-201409
35301BRING, O (FOR FRONT OIL PUMP BODY)
main35697-06010i201111-201409
TRANSAXLE NO.=XXNXXX
main35697-33010i201109-201409
TRANSAXLE NO.=XXAXXX
main35697-33010i201109-201110
TRANSAXLE NO.=XXTXXX
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
main90250-08052i201109-201409
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-A0120i201111-201409
*8-1.25PX35-22,TRANSAXLE NO.=XXNXXX
main91551-80835i201109-201409
*8-1.25PX35-22,TRANSAXLE NO.=XXAXXX
main91551-80835i201109-201110
*8-1.25PX35-22,TRANSAXLE NO.=XXTXXX
35307FBOLT (FOR STATOR SHAFT)
main90148-60067i201109-201409
NO.1
main90148-60068i201109-201409
NO.2
35321GEAR, FRONT OIL PUMP DRIVE
main35321-06060i201111-201311
T=11.547-11.555,AXLE NO.=XXNXXX,(L)
sub35321-33111
main35321-06070i201111-201311
T=11.555-11.563,AXLE NO.=XXNXXX,(L)
sub35321-33121
main35321-06080i201111-201311
T=11.564-11.571,AXLE NO.=XXNXXX,(L)
sub35321-33131
main35321-06090i201111-201311
T=11.572-11.579,AXLE NO.=XXNXXX,(L)
sub35321-33141
main35321-06100i201111-201311
T=11.580-11.587,AXLE NO.=XXNXXX,(L)
sub35321-33151
main35321-06110i201311-201409
T=11.567,MARK 1,AXLE NO.=XXNXXX,(L)
main35321-06120i201311-201409
T=11.567,MARK 2,AXLE NO.=XXNXXX,(L)
main35321-06130i201311-201409
T=11.567,MARK 3,AXLE NO.=XXNXXX,(L)
main35321-06140i201311-201409
T=11.567,MARK 4,AXLE NO.=XXNXXX,(L)
main35321-06150i201311-201409
T=11.567,MARK 5,AXLE NO.=XXNXXX,(L)
main35321-33111i201109-201312
T=11.567,MARK 1,TRANSAXLE NO.=XXAXXX
main35321-33111i201109-201110
T=11.567,MARK 1,TRANSAXLE NO.=XXTXXX
main35321-33111i201201-201312
T=11.567,MARK 1,AXLE NO.=XXNXXX,(J)
main35321-33121i201109-201312
T=11.567,MARK 2,TRANSAXLE NO.=XXAXXX
main35321-33121i201201-201312
T=11.567,MARK 2,AXLE NO.=XXNXXX,(J)
main35321-33121i201109-201110
T=11.567,MARK 2,TRANSAXLE NO.=XXTXXX
main35321-33131i201109-201312
T=11.567,MARK 3,TRANSAXLE NO.=XXAXXX
main35321-33131i201201-201312
T=11.567,MARK 3,AXLE NO.=XXNXXX,(J)
main35321-33131i201109-201110
T=11.567,MARK 3,TRANSAXLE NO.=XXTXXX
main35321-33141i201109-201110
T=11.567,MARK 4,TRANSAXLE NO.=XXTXXX
main35321-33141i201201-201312
T=11.567,MARK 4,AXLE NO.=XXNXXX,(J)
main35321-33141i201109-201312
T=11.567,MARK 4,TRANSAXLE NO.=XXAXXX
main35321-33151i201201-201312
T=11.567,MARK 5,AXLE NO.=XXNXXX,(J)
main35321-33151i201109-201110
T=11.567,MARK 5,TRANSAXLE NO.=XXTXXX
main35321-33151i201109-201312
T=11.567,MARK 5,TRANSAXLE NO.=XXAXXX
main35321-73010i201312-201409
T=11.567,MARK 1,AXLE NO.=XXNXXX,(J)
main35321-73020i201312-201409
T=11.567,MARK 2,AXLE NO.=XXNXXX,(J)
main35321-73030i201312-201409
T=11.567,MARK 3,AXLE NO.=XXNXXX,(J)
main35321-73040i201312-201409
T=11.567,MARK 4,AXLE NO.=XXNXXX,(J)
main35321-73050i201312-201409
T=11.567,MARK 5,AXLE NO.=XXNXXX,(J)
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-06060i201111-201311
T=11.547-11.555,AXLE NO.=XXNXXX,(L)
sub35322-33110
main35322-06070i201111-201311
T=11.555-11.563,AXLE NO.=XXNXXX,(L)
sub35322-33120
main35322-06080i201111-201311
T=11.564-11.571,AXLE NO.=XXNXXX,(L)
sub35322-33130
main35322-06090i201111-201311
T=11.572-11.579,AXLE NO.=XXNXXX,(L)
sub35322-33140
main35322-06100i201111-201311
T=11.580-11.587,AXLE NO.=XXNXXX,(L)
sub35322-33150
main35322-06110i201311-201409
T=11.567,MARK 1,AXLE NO.=XXNXXX,(L)
main35322-06120i201311-201409
T=11.567,MARK 2,AXLE NO.=XXNXXX,(L)
main35322-06130i201311-201409
T=11.567,MARK 3,AXLE NO.=XXNXXX,(L)
main35322-06140i201311-201409
T=11.567,MARK 4,AXLE NO.=XXNXXX,(L)
main35322-06150i201311-201409
T=11.567,MARK 5,AXLE NO.=XXNXXX,(L)
main35322-33110i201201-201312
T=11.567,MARK 1,AXLE NO.=XXNXXX,(J)
main35322-33110i201109-201312
T=11.567,MARK 1,TRANSAXLE NO.=XXAXXX
main35322-33110i201109-201110
T=11.567,MARK 1,TRANSAXLE NO.=XXTXXX
main35322-33120i201109-201312
T=11.567,MARK 2,TRANSAXLE NO.=XXAXXX
main35322-33120i201201-201312
T=11.567,MARK 2,AXLE NO.=XXNXXX,(J)
main35322-33120i201109-201110
T=11.567,MARK 2,TRANSAXLE NO.=XXTXXX
main35322-33130i201109-201110
T=11.567,MARK 3,TRANSAXLE NO.=XXTXXX
main35322-33130i201201-201312
T=11.567,MARK 3,AXLE NO.=XXNXXX,(J)
main35322-33130i201109-201312
T=11.567,MARK 3,TRANSAXLE NO.=XXAXXX
main35322-33140i201201-201312
T=11.567,MARK 4,AXLE NO.=XXNXXX,(J)
main35322-33140i201109-201110
T=11.567,MARK 4,TRANSAXLE NO.=XXTXXX
main35322-33140i201109-201312
T=11.567,MARK 4,TRANSAXLE NO.=XXAXXX
main35322-33150i201201-201312
T=11.567,MARK 5,AXLE NO.=XXNXXX,(J)
main35322-33150i201109-201110
T=11.567,MARK 5,TRANSAXLE NO.=XXTXXX
main35322-33150i201109-201312
T=11.567,MARK 5,TRANSAXLE NO.=XXAXXX
main35322-73010i201312-201409
T=11.567,MARK 1,AXLE NO.=XXNXXX,(J)
main35322-73020i201312-201409
T=11.567,MARK 2,AXLE NO.=XXNXXX,(J)
main35322-73030i201312-201409
T=11.567,MARK 3,AXLE NO.=XXNXXX,(J)
main35322-73040i201312-201409
T=11.567,MARK 4,AXLE NO.=XXNXXX,(J)
main35322-73050i201312-201409
T=11.567,MARK 5,AXLE NO.=XXNXXX,(J)
35370SHAFT ASSY, STATOR
main35370-06020i201111-201311
AXLE NO.=XXNXXX,(L)
sub35370-33042
main35370-06021i201311-201409
AXLE NO.=XXNXXX,(L)
sub35370-33043
main35370-33042i201109-201312
TRANSAXLE NO.=XXAXXX
main35370-33042i201201-201312
AXLE NO.=XXNXXX,(J)
main35370-33043i201312-201409
AXLE NO.=XXNXXX,(J),AXLE NO.=XXAXXX,(J)
main35370-73012i201109-201110
TRANSAXLE NO.=XXTXXX
sub35370-33042
