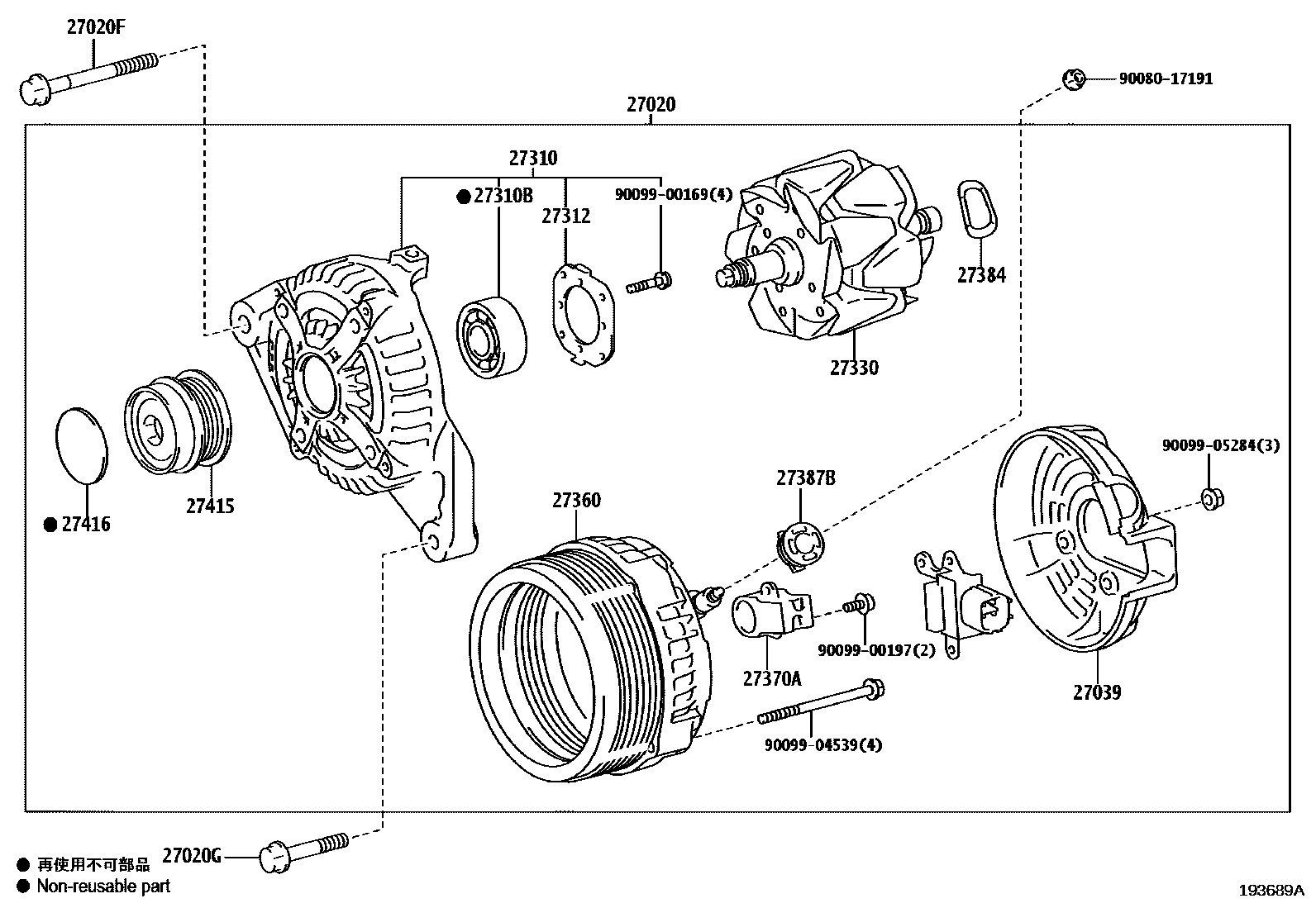

ALTERNATOR

0001 112V 100A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-0V010i2ARFE..ASV50201109-201409

12V 100A

main27060-0V170i2ARFE..ASV50201409

12V 100A

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-A0230i2ARFE..ASV50201109-201409

27020GBOLT, NO.2(FOR ALTERNATOR)

main90105-A0166i2ARFE..ASV50201109-201409

27039COVER, ALTERNATOR REAR END

main27039-0C170i2ARFE..ASV50201601

main27039-0T040i2ARFE..ASV50201109-201409

main27039-47330i2ARFE..ASV50201409-201601

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0V010i2ARFE..ASV50201109-201409

main27310-0V160i2ARFE..ASV50201601

main27310-36160i2ARFE..ASV50201409-201601

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i2ARFE..ASV50201109-201409

main90099-10223i2ARFE..ASV50201409-201601

27312PLATE, RETAINER

main27312-72100i2ARFE..ASV50201109-201409

27330ROTOR ASSY, ALTERNATOR

main27330-0C170i2ARFE..ASV50201601

main27330-0F060i2ARFE..ASV50201109-201409

main27330-47330i2ARFE..ASV50201409-201601

27360COIL ASSY, ALTERNATOR

main27360-0V010i2ARFE..ASV50201109-201409

main27360-0V200i2ARFE..ASV50201601

main27360-36161i2ARFE..ASV50201409-201601

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0P020i2ARFE..ASV50201109-201409

main27370-0V160i2ARFE..ASV50201601

main27370-31220i2ARFE..ASV50201409-201601

27384WASHER

main27384-0A020i2ARFE..ASV50201109-201409

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0V060i2ARFE..ASV50201109-201409

main27387-20130i2ARFE..ASV50201409

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W020i2ARFE..ASV50201109-201307

sub27415-0W021

main27415-0W021i2ARFE..ASV50201308-201606

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ARFE..ASV50201109-201606

9008017191

main90080-17191

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905284

main90099-05284

19 parts on this diagram · 2 diagrams in section
