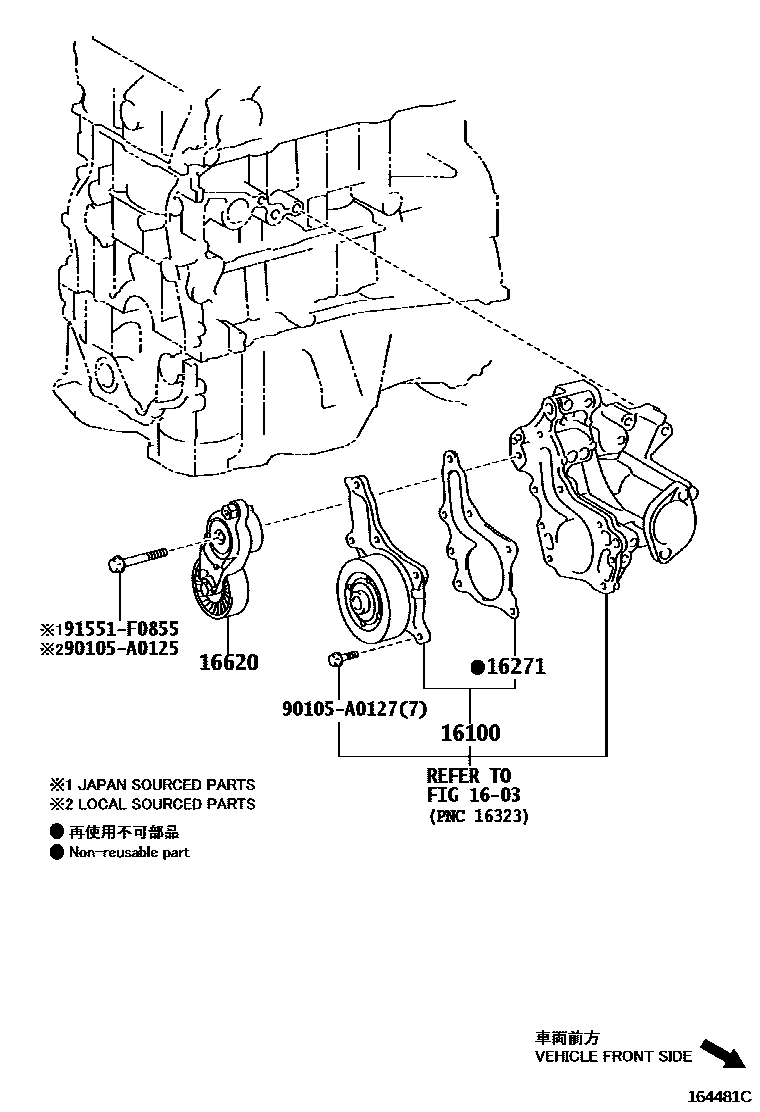

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-09515i2ARFE..ASV50201109-201409

16271GASKET, WATER PUMP

main16271-36010i2ARFE..ASV50201109-201409

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V020i2ARFE..ASV50201109-201305

(L)

sub16620-0V021

main16620-0V021i2ARFE..ASV50201305-201405

(L)

sub16620-0V022

main16620-0V022i2ARFE..ASV50201405-201409

(L)

main16620-36010i2ARFE..ASV50201109-201402

(J)

sub16620-36011

main16620-36011i2ARFE..ASV50201402-201509

(J)

sub16620-36012

main16620-36012i2ARFE..ASV50201510

(J)

sub16620-36013

90105A0125

main90105-A0125

90105A0127

main90105-A0127

91551F0855

main91551-F0855

7 parts on this diagram · 1 diagram in section
