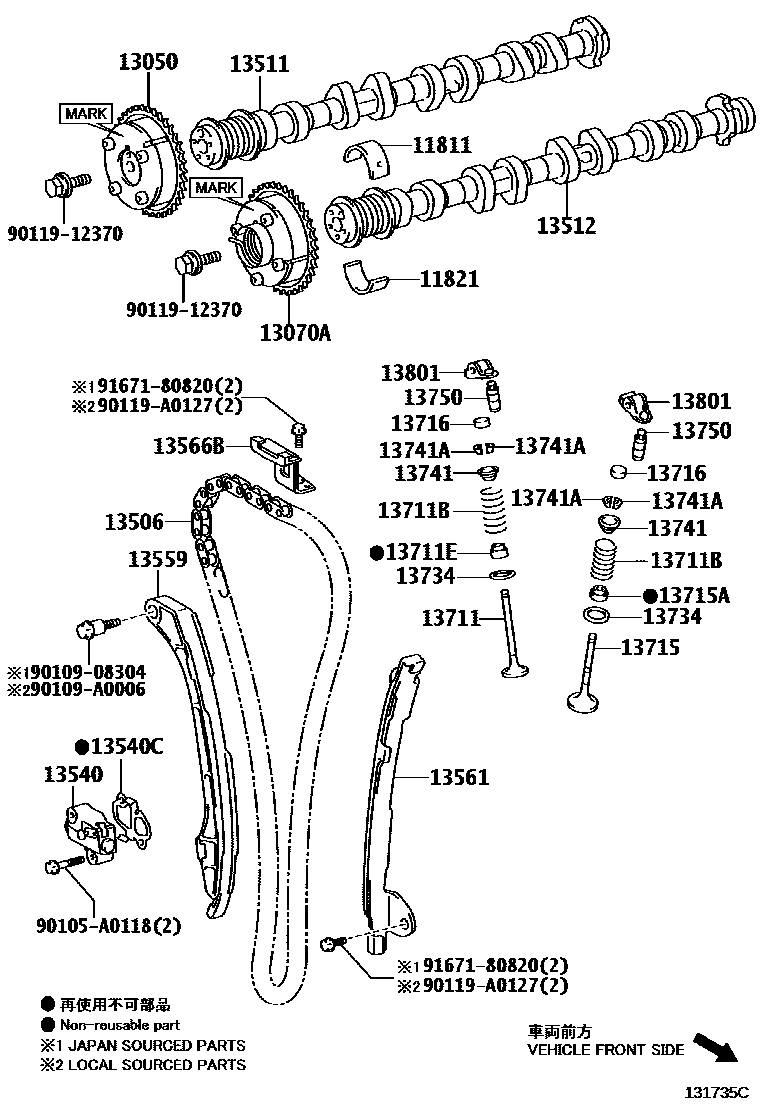

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
(L)
(J)
11821BEARING, CAMSHAFT, NO.2
(L)
(J)
13050GEAR ASSY, CAMSHAFT TIMING
MARK 13050-0V011
MARK 13050-0V040
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
MARK 13070-0V013
MARK 13070-0V040
13506CHAIN SUB-ASSY
13511CAMSHAFT
sub13501-36050
13512CAMSHAFT, NO.2
sub13502-36030
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
sub13750-0P040
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
90105A0118
main90105-A0118
9010908304
main90109-08304
90109A0006
main90109-A0006
9011912370
main90119-12370
90119A0127
main90119-A0127
9167180820
main91671-80820
29 parts on this diagram · 1 diagram in section
