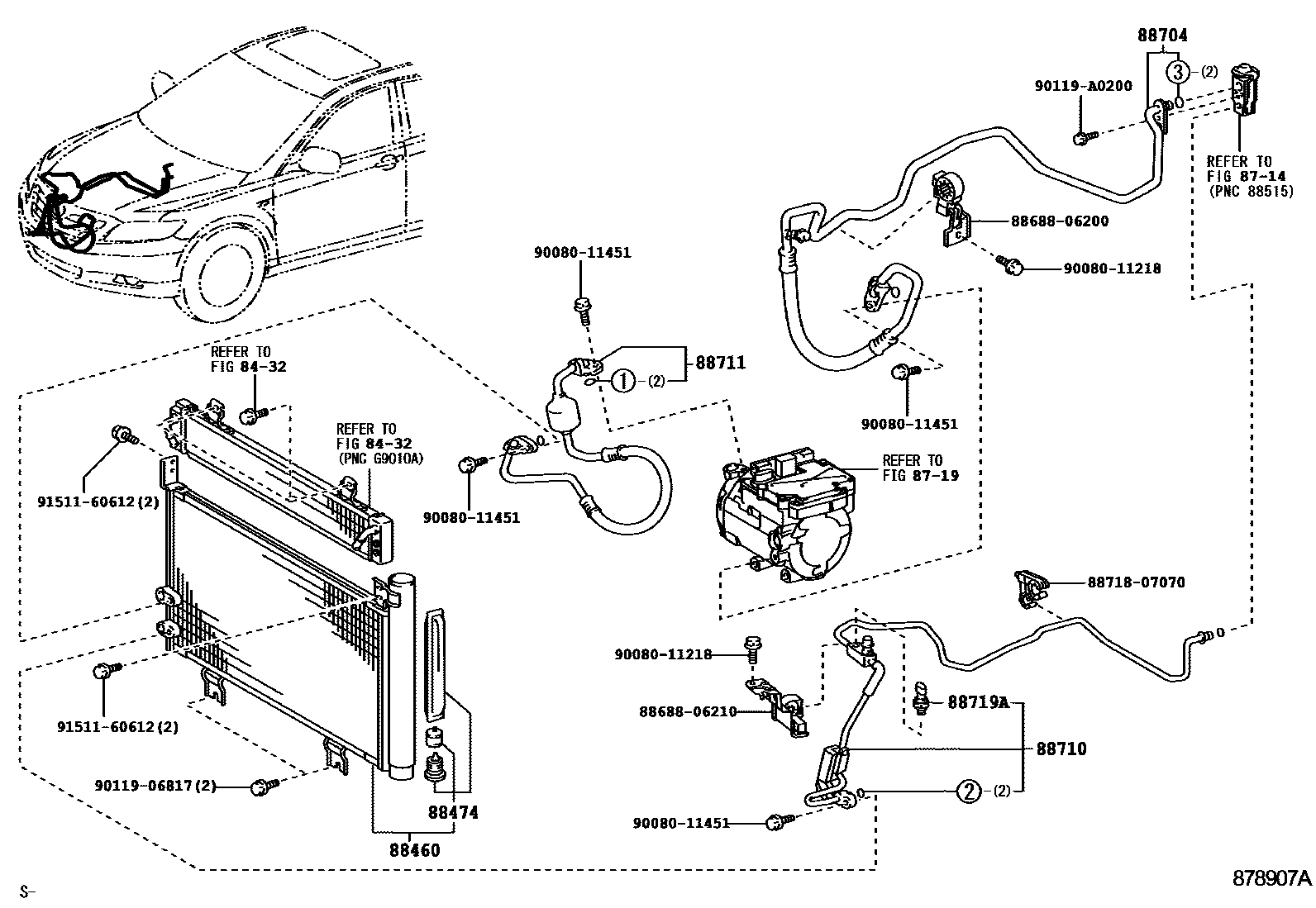

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

8432

8714

8719

88460CONDENSER ASSY, COOLER

main88460-33090iAHV40..NAP200610-201109

sub88460-33120

88474DRYER, COOLER

main88474-47020iAHV40..NAP200610-200903

88704HOSE SUB-ASSY, SUCTION

main88704-06400iAHV40..NAP200610-200903

88710TUBE ASSY, AIR CONDITIONER

main88710-06280iAHV40..NAP200610-200903

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06350iAHV40..NAP200610-200903

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAHV40..NAP200610-200903

8868806200BRACKET, COOLER DIAPHRAGM

main88688-06200

8868806210BRACKET, COOLER DIAPHRAGM

main88688-06210

8871807070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07070

9008011218

main90080-11218

9008011451

main90080-11451

9011906817

main90119-06817

90119A0200

main90119-A0200

9151160612

main91511-60612

17 parts on this diagram · 2 diagrams in section
